Agitator Omh 500 Hydraulic Motor Betonstar Concrete Pump Truck Repair Solution

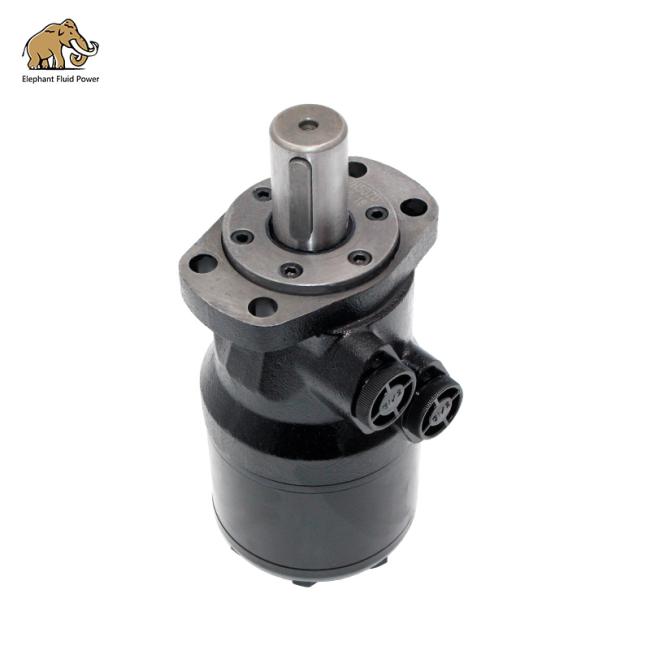

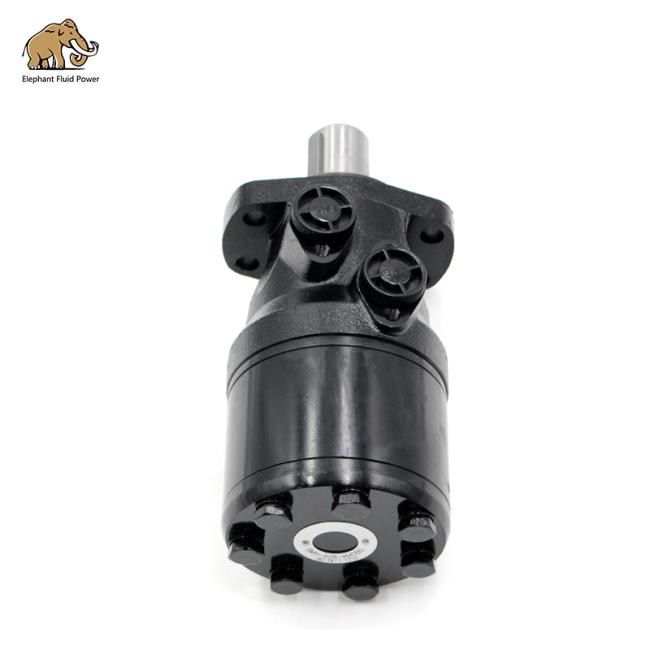

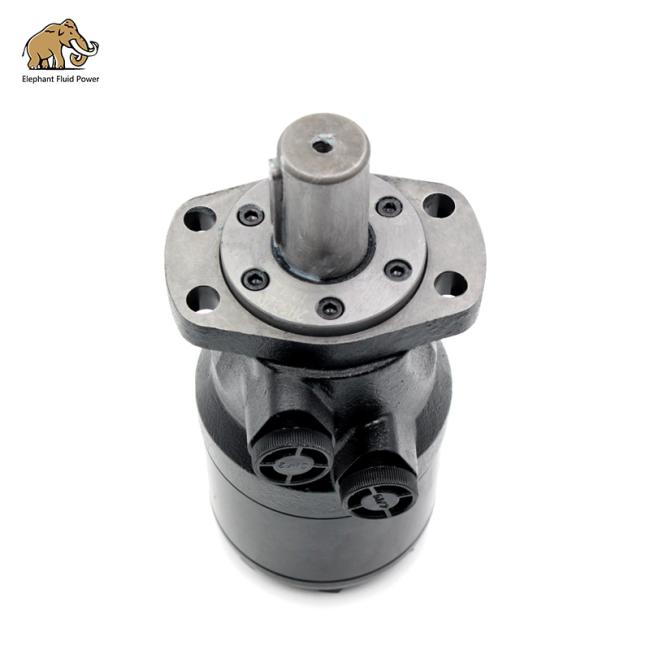

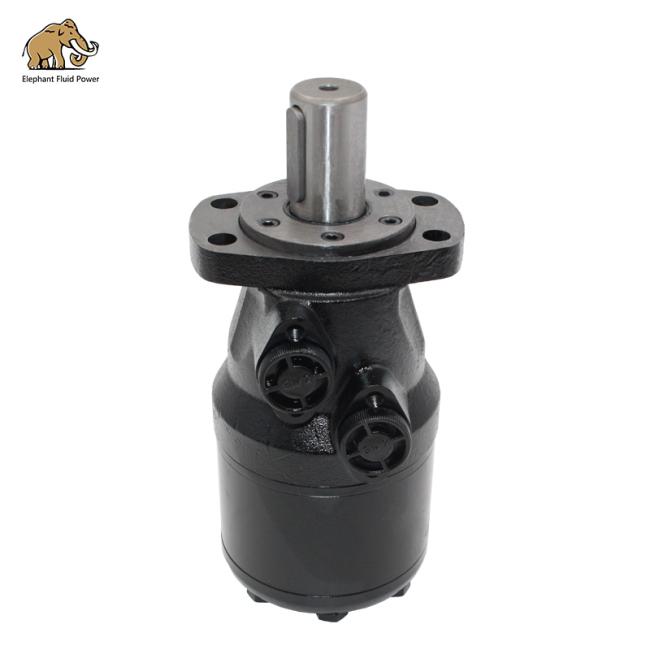

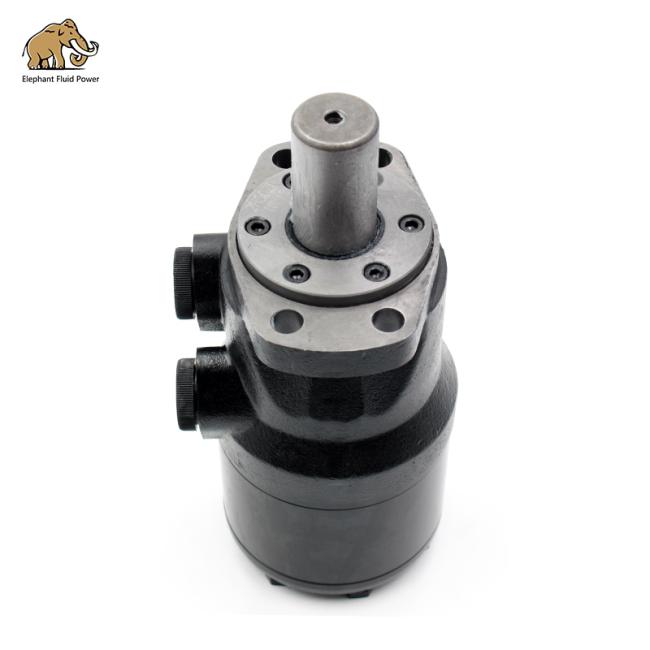

Betonstar Concrete Pump Truck Repair Solution Hanjiu Hydraulic Made OMH500 Agitator Motor
Elephant Fluid Power is a subsidary company of Hanjiu Hydraulic,our OMH500 Hydraulic Motor is used for Betonstar concrete pump truck repair and maintaince,and some of the concrete pump factory also use our OMH500 hydraulic motor to make new machine.
Characteristic features
1. Hanjiu OMH series motor adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure, provide reliable and smooth operation, high efficiency and long life.
2. Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.
3. Shaft seal can bear high pressure of back and the motor can be used in parallel or series.
4. Special design in the driver-linker and prolong operating life.
5. Special design for distribution system can meet the requirement of low noise of unit.
6. Compact volume and easy installation.
Specifiion
| Hanjiu OMH500 | Danfoss OMH500 | M+S MH500 |
| Type |
OMH 200 |
OMH 250 |
OMH 315 |
OMH 400 |
OMH 500 |
|
|
Displacement (cc/rev) |
203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
|
Max torque (n.m) |
cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
|
Max pressure (mpa) |
cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
|
Max speed rate (rpm) |
cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
|
Max flow (L/min) |
cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
|
Weight(kg)
|
10.5 | 11 | 11.5 | 12.3 | 13.0 | |
Appliion
Low RPM Hydraulic Motor OMH Motors
1. Concrete Pump / Truck Mixers Spare Parts
2. Hydraulic Rotating
3. Hydraulic Wood Splitter
4. Engineering mining equipment
Elephant Fluid Power is a manufacturer and supplier of hydraulic piston pump ,vane pump,gear pump ,hydraulic motors,pump parts in northern China,we have good quality,delivery fast, after sales warranty,we develop with our clients together,we will be your best choise,we will be your good friends and partner among the world.
We are looking for good long cooperation in the hydraulic field,very hope we can become good long partner.
