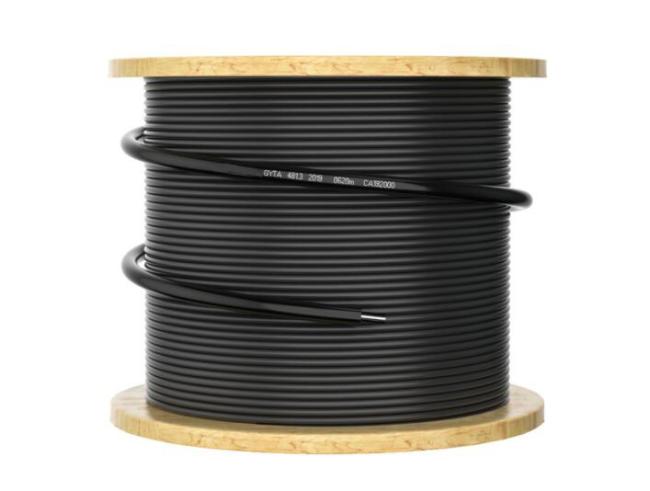

1km 2km GYTA GYTS Armored SM Leather Outdoor Fiber Optic Cable
GYTA GYTS armored single mode leather fiber Outdoor optical cable
Description:The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.
Characteristics
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Special designed compact structure is good at preventing loose tubes from shrinking
- PE sheath protects cable from ultraviolet radiation

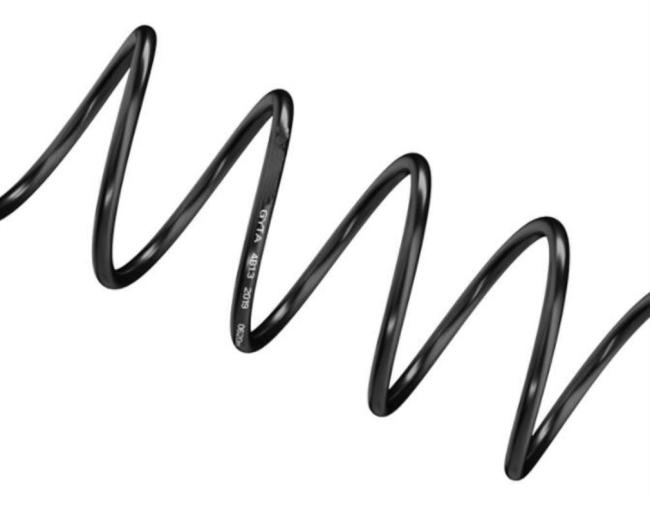

- Crush resitance and flexibility
- The following measures are taken to ensure the cable watertight:
- Steel wire used as the central strength member
- Loose tube filling compound
- 100% cable core filling
Technical parameters
|
Fiber Num
|
Outer diameter (mm)
|
Weight (kg/km)
|
Tensile Stength (N)
|
Crash Resistance (N/100mm)
|
||
|
Short term
|
Long term
|
Short term
|
Long term
|
|||
|
2-30
|
9.5
|
86
|
≥1500
|
≥600
|
≥1000
|
≥300
|
|
32-60
|
10.2
|
99
|
||||
|
62-72
|
10.9
|
123
|
||||
|
74-84
|
12.2
|
148
|
||||
|
86-96
|
12.2
|
148
|
||||
|
98-120
|
14.0
|
183
|
||||
|
122-144
|
14.5
|
220
|
||||
|
146-216
|
16.1
|
229
|
||||
|
218-300
|
18.5
|
290
|
||||

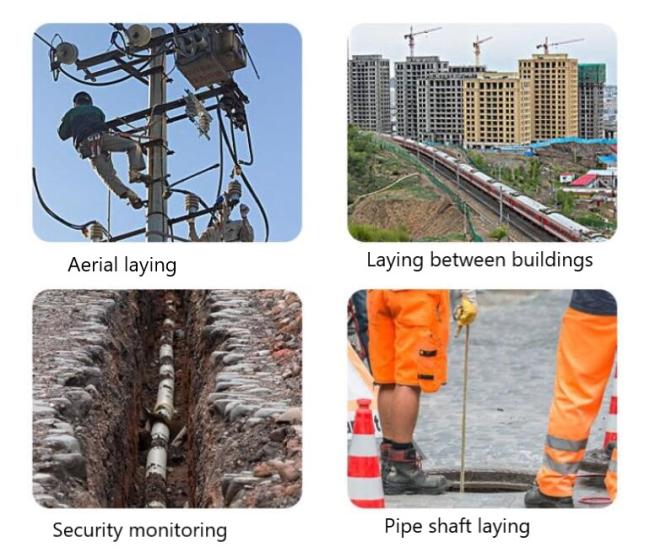

Application
