62.5/125 GYXTW SM 9/125 Armored Outdoor Fiber Optic Cable
Description: 62.5/125 Gyxtw Outdoor Sm 9/125 Armored Fiber Optic Cable Gyxtw 46812 Core

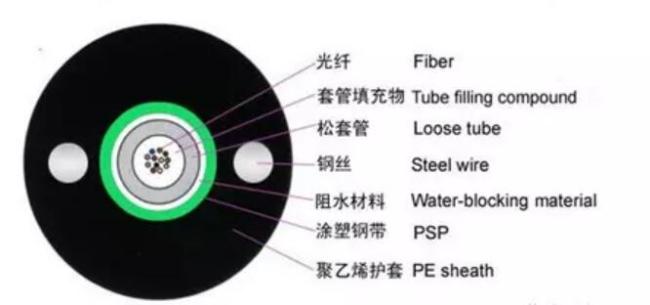

"62.5/125 Gyxtw Outdoor Sm 9/125 Armored Fiber Optic Cable Gyxtw 46812 Core"is constructed by inserting a 250 μm fiber into a loose tube made of a high modulus material filled with a water-repellent compound. Two parallel steel wires are placed on both sides to be extruded. The vinyl sheath is cabled.
The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure the compactness and longitudinal water resistance of the cable.
Characteristics of 62.5/125 Gyxtw Outdoor Sm 9/125 Armored Fiber Optic Cable Gyxtw 46812 Core
1. Having good mechanical and temperature characteristics
2. The material loose tube having good hydrolysis resistance and high tensile strength
3. Inner of loose tube is filled with special ointment ,thus can give critical protection of optical fiber
4. Excellent crush resistance and flexibility, two parallel round steel wires resist tension and side pressure
5. Polyethylene sheath makes the cable have good UV resistance
6. small outside diameter, light weight, excellent bending performance,make it install more easier
7. GYXTW cable complies with Standard :comply with YD/T 769-2010
8. Full cross-section water blocking structure to ensure good water resistance and moisture resistance;
9. Storage/Operating Temperature: -40°C to + 70°C
| Items | Specifications | |
| Fiber Count | 4 | |
|
Colored Coating Fiber |
Dimension | 250µm±15µm |
| Color | Blue,Orange,Green,Brown | |
|
Loose Tube |
Dimension | 2.05mm±0.05mm |
| Material | PBT | |
| Color | Natural | |
|
Strength Member |
Diameter | 0.7mm |
| Material | Steel Wire | |
|
Outer Jacket |
Dimension | 7.5mm±0.3mm |
| Material | PE | |
| Color | Black | |
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
2. Professional manufacturer, 100% tested.
3. Full compliance with ISO 9001:2008 quality management system
4. Our company has experienced professional team
5. Provide reliable solutions and satisfactory services
6. Warmly services with careful attentions.
7. Can provide your specific inquiry within 24 hours.Advanced production and testing equipment
