2 4 6 8 10 12 Core GYXTW GYXTW53 Communication Fiber Optic Cable
Description: 2 4 6 8 10 12 core GYXTW GYXTW53 single mode outdoor communication fiber optic cable
"2 4 6 8 10 12 core GYXTW GYXTW53 single mode outdoor communication fiber optic cable "is constructed by inserting a 250 μm fiber into a loose tube made of a high modulus material filled with a water-repellent compound. Two parallel steel wires are placed on both sides to be extruded. The vinyl sheath is cabled.
The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure the compactness and longitudinal water resistance of the cable.
Characteristics of 2 4 6 8 10 12 core GYXTW GYXTW53 single mode outdoor communication fiber optic cable
1. Full cross-section water blocking structure to ensure good water resistance and moisture resistance;
2. The loose tube is filled with special grease to protect the optical fiber;
3. Two parallel round steel wires resist tension and side pressure;
4. Optical fiber cable with small outside diameter, light weight, excellent bending performance;
5. The loose tube is located in the physical center of the cable and it is easy to operate.
6. Polyethylene sheath makes the cable have good UV resistance
7. Product life more than 25 years
Structure and Technical specifications of 2 4 6 8 10 12 core GYXTW GYXTW53 single mode outdoor communication fiber optic cable
Fiber Parameters
| No. | Items | Unit | Specification | |
| G.652D | ||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.4 |
| 1550nm | dB/km | ≤0.3 | ||
Cable Parameters
| able count | out sheath diameter | Weight | Minimum allowable Tensile strength(N) | Minimum allowable Crush load(N/100mm) |
Min bending radius(MM) |
Suitable temperature |
||||
| (core) | (MM) | (KG) | short term |
long term |
short term |
long term |
short term |
long term |
(℃) | |
| 2 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 4 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 6 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 8 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 10 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 12 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 24 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| Fiber standard control | ||||||||||
Fiber Type |
Multi-mode | G.651 | A1a:50/125 | Gradient-type refractive index | ||||||
| A1b:62.5/125 | ||||||||||
| Single-mode | G.652(A,B,C,D) | B1.1routines | ||||||||
| G.653 | B2 Zero dispersion-shifted | |||||||||
| G.654 | B1.2 Cutoff wavelength shift | |||||||||
| G.655 | B4 Non-zero dispersion-shifted | |||||||||
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
2.Professional manufacturer, 100% tested.
3.Full compliance with ISO 9001:2008 quality management system
4.Our company has experienced professional team
5.Provide reliable solutions and satisfactory services
6.Warmly services with careful attentions.
7.Can provide your specific inquiry within 24 hours.Advanced production and testing equipment
Free MOQ. You'll be highly appreciated,if you could provide us your QTY. Then we'll calculate cost correspondingly.
2.Can I get samples?
Yes. Samples will be sent for checking. We usually send samples by DHL,Fedex,UPS,TNT or Aramex. If you have carrier account,it'll be pleased to ship with your account. If not,you can pay by Western Union,Paypal or others.
3.How long is sample & production leadtime?
A.Sample leadtime: 3-5 days,after confirmed your payment.
B.Production leadtime:10-12 days,after confirmed sample & payment.
4.Do you accept OEM or ODM?
Yes,we're factory. And we have our own Engineering Department. You just need to send us your requirements.
Our Services
1.24hours one-to-one online services ensure efficient support.
2.Considerate customer reception from hotel booking to factory visiting.
3.Excellent care from order confirmation to product shipment.

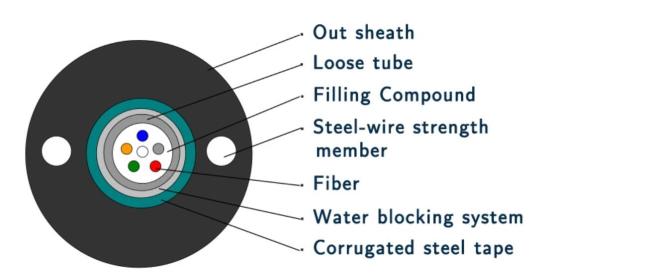

Drawings of 2 4 6 8 10 12 core GYXTW GYXTW53 single mode outdoor communication fiber optic cable
