High quality high strength GYTA fiber optic cable Burial fiber optic cable
Description: High quality high strength GYTA fiber optic cable Burial fiber optic cable
"High quality high strength GYTA fiber optic cable Burial fiber optic cable "is constructed by inserting a 250 μm fiber into a loose tube made of a high modulus material filled with a water-repellent compound.
Two parallel steel wires are placed on both sides to be extruded. The vinyl sheath is cabled.
Characteristics of High quality high strength GYTA fiber optic cable Burial fiber optic cable
· It has good mechanical and temperature properties.
· The loose tube material itself has good hydrolysis resistance and high strength.
· The tube is filled with a special grease to provide critical protection to the fiber, good pressure resistance and softness.
· Double coated steel strip (PSP) improves the moisture resistance of the cable.
· Two parallel wires ensure the tensile strength of the cable.
· Small diameter, light weight and easy to lay.
Structure and Technical specifications of High quality high strength GYTA fiber optic cable Burial fiber optic cable
|
Item Name
|
GYTA Fiber Optic Cable
|
|
Place of Origin
|
Wuhan or Shanghia,China
|
|
Model Number
|
GYTA
|
|
Brand Name
|
WRC
|
|
Fiber Type
|
Single mode ITU-T G652D
|
|
Fiber No.
|
2-288 cores
|
|
Strength Member
|
Central Steel Wire/Metal
|
|
Material of Jacket
|
Black Polyethylene (PE)
|
|
Cable Structure
|
Stranded Loose Tube
|
|
Certificate
|
ISO9001/CE/RoHS/CE
|
|
Storing Temperature
|
-40℃ to +70℃
|
|
Application
|
Duct/Aerial
|
|
Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Max Fiber Per Tube |
Max No. of (Tubes+fillers) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||||
| 2~30 | 9.7 | 76 | 6 | 5 | 1500 | 600 | 1000 | 300 |
| 32~48 | 10.7 | 90 | 8 | 6 | 1500 | 600 | 1000 | 300 |
| 50~72 | 11.6 | 110 | 12 | 6 | 2000 | 600 | 1000 | 300 |
| 74~96 | 13.0 | 135 | 12 | 8 | 2000 | 600 | 1000 | 300 |
| 98~144 | 15.1 | 190 | 12 | 12 | 2000 | 600 | 1000 | 300 |
Note : This datasheet can only be a reference, not a supplement to the contract,final subject to Contract.
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: May I buy samples from you?
A2: Yes! You are welcome to place sample order to test our superior quality and service
Q3:How to Place an order?
A8:Pls send us your purchase order by email or you can ask us to send you the proforma invoice for your order.
Q4:What payment method do you accept?
A4:T/T(Bank transfer), L/C, Western Union, Money Gram, PayPal, etc.
Q5: May I know the status of my order?
A5: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q6: What’s the leading time? (How long do you need to prepare my goods?)
A6: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment.Big order shall be in 7-30 days.
Q7: How will you delivery my goods ?
A7: It will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo.

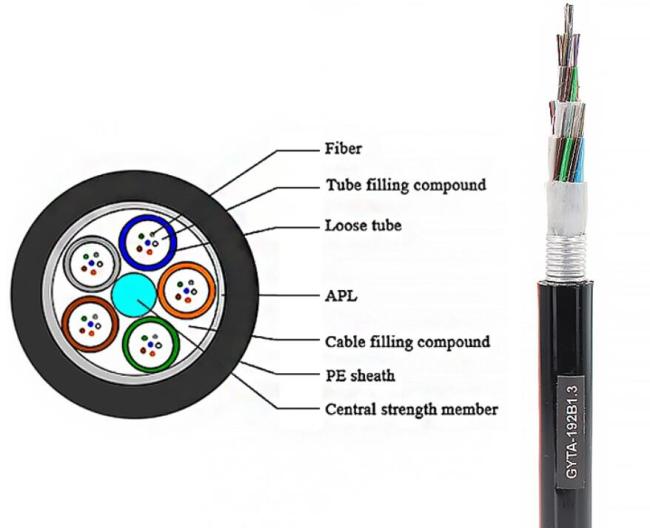

Drawings of High quality high strength GYTA fiber optic cable Burial fiber optic cable
