Optical Fiber Indoor Cable GJBFJH 2-96 Core OM1 OM2 OM3 Fiber Drop Cable
Optical Fiber Indoor Cable GJBFJH 2-96 Core OM1 OM2 OM3 Fibers Drop Cable
Product Description:

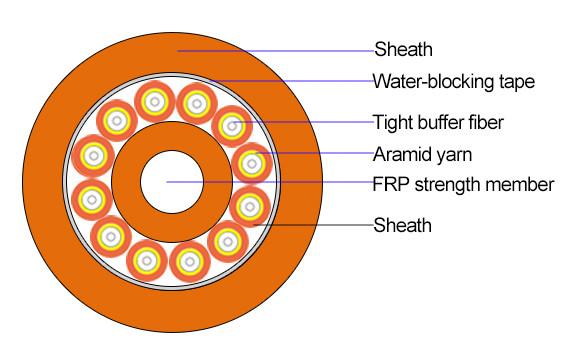

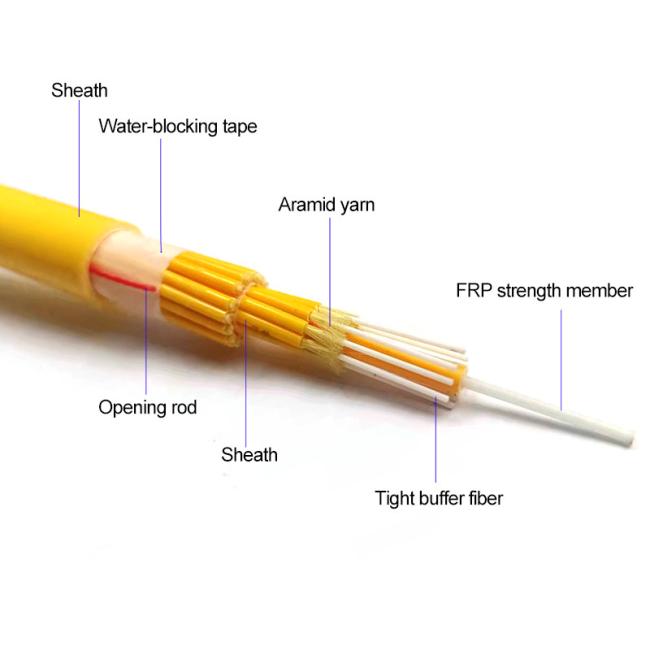

Simplex cable(φ900um tight buffer fiber, aramid yarn as strength member) as subunit.
A fibre reinforced plastic (FRP) locates in the center of core as a non-metallic strength member.
The subunits are stranded around the cable core. the cable is completed with a PVC or LZSH jacket.
Applications:
Indoor cabling;
Ribbon patch cord and ribbon pigtail;
As flexible connection cable between equipments.
Characteristics:
It's easy to install and maintain with one tube
for multi-cores
High strength aramid yarn offers high tensile
strength
Flame retardant .
It's available under high and low temperature
Standards:
YD/T 1258. 4-2005Indoor fiber optical cable Dual core cable
Technical Specification:
| Fiber Count | specifications (mm) |
Weight (kg/km) |
Tensile(N) | Crush(N) | Bending Radius (mm) | |||
| Long term Short term | Long term Short term | Static Dynamic | ||||||
| 4 | 7.5 | 52 | 210 | 450 | 300 | 1000 | 10D | 20D |
| 6 | 8.5 | 70 | 320 | 650 | 300 | 1000 | 10D | 20D |
| 8 | 9.5 | 89 | 420 | 850 | 300 | 1000 | 10D | 20D |
| 10 | 10.8 | 115 | 600 | 1200 | 300 | 1000 | 10D | 20D |
| 12 | 12.5 | 145 | 600 | 1200 | 300 | 1000 | 10D | 20D |
| 14 | 11.8 | 115 | 650 | 1300 | 300 | 1000 | 10D | 20D |
| 16 | 12.5 | 127 | 750 | 1500 | 300 | 1000 | 10D | 20D |
| 18 | 12.8 | 142 | 1000 | 2000 | 300 | 1000 | 10D | 20D |
| 20 | 13.3 | 155 | 1000 | 2000 | 300 | 1000 | 10D | 20D |
| 22 | 14 | 167 | 1000 | 2000 | 300 | 1000 | 10D | 2OD |
| 24 | 14.8 | 185 | 1200 | 2400 | 300 | 1000 | 10D | 20D |
