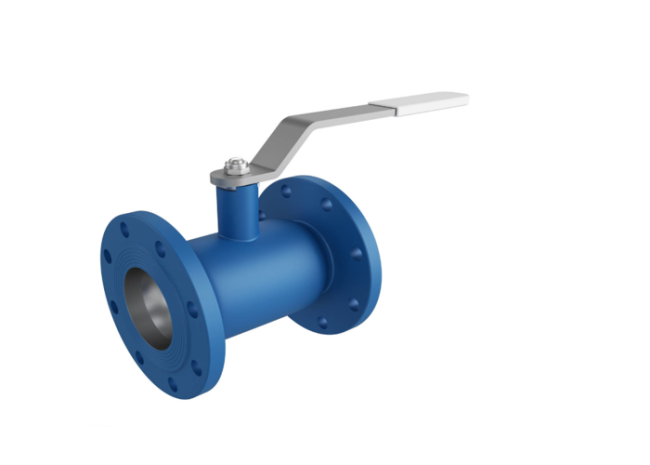

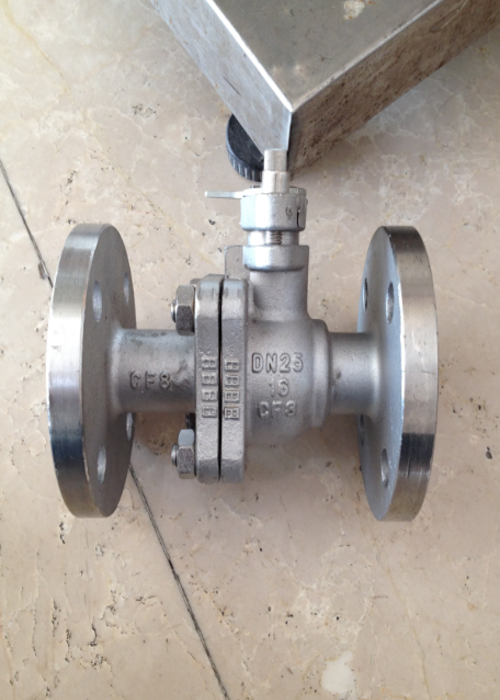

1000psi Stainless Steel Ball Valve
Hard Sealed Two Way Ball Valve Flanged End For Fibers / Small Solid Particles
CE AND ISO9001 APPROVED S.S 304 DESIGN 2 WAY BALL VALVE FLANGED END
Ball valve, a valve that is driven by a valve stem and rotates around the axis of the ball valve. It can also be used for the regulation and control of fluids. The hard-sealed V-ball valve has a strong shear force between the V-shaped core and the metal valve seat of the hardfacing. It is especially suitable for fibers and small solid particles And other media.
| Class | F.P | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| 800-1500lb | L1 | 92 | 92 | 92 | 111 | 127 | 140 | 152 | 152 | |
| W | 108 | 108 | 108 | 146 | 178 | 178 | 200 | 200 | ||
| H | 51 | 51 | 51 | 108 | 81 | 85 | 105 | 105 | ||
| d | CL800 | 6 | 9 | 13 | 18 | 23 | 28 | 35 | 49 | |
| CL1500 | 6 | 9 | 13 | 19 | 25 | 32 | 38 | 49 | ||
| Weight(kg) | 2.3 | 2.4 | 2.5 | 3.4 | 5.4 | 6.4 | 11 | 13 | ||
| 2.3 | 2.4 | 2.5 | 3.7 | 5.8 | 6.8 | 11.5 | 13.7 |
|||
Description
| Size | 1/4" -12"/Customize |
| Material | SS304, SS316(CF8, CF8M) WCB/customize |
| Pressure | 1000psi/customize |
| Suitable medium | water, oil, air and some corrosive liquid etc.(WOG)/customize |
| Temperature Range | -40~210 degree C/customize |
| Connection | Flange |
| Type of thread | Flange |
| MOQ | 1 PC/size |
| Certification | CE,ISO |
| Package detail | inner CTN, outside ply-wooden case/customize |
Our advantage
1. our factory produce products according to Customer drawings and samples
2. High quality, competitive price and good after-sales service makes us gain customers’ trust.
3. we can accept print customer Logo on the valve handle cover
4. As long as you need, we will provide you samples;
RFQ
1. Are you a factory or trading company?
We are a factory
2. How long have you worked in this field?
I have worked 12 years in this field
3. What is your products’ MOQ?
We haven’t exact MOQ for our products .if you just need 1pc we also sell. Your satisfaction is our biggest pursuit.
4. What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU.And so on;
5. What is your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Standards Compliance
1. Design and manufacture conform to BS5351 MSS SP-118;
2. Connection ends conform to:
1) Scoket welded ends conform to ANSI B16.11; JB/T1751
2) Screw ends conform to ANSI B1.20.1; JB/T7306
3) Butt-welded ends conform to ANSI B16.25; JB/T12224
4) Flanged ends conform to ANSI B16.5; JB79
3. Test and inspection conform to: API 598; GB/T13927; JB/T9092
4. Structure features: Bolted bonnet; three-piece;
5. Materials conform to ANSI/ASTM;
6. Main materials: A105; LF2; F5; F11; F22; 304(L);316(L); F 347; F321; F51; Monel; 20Alloy.
Main Dimensions
