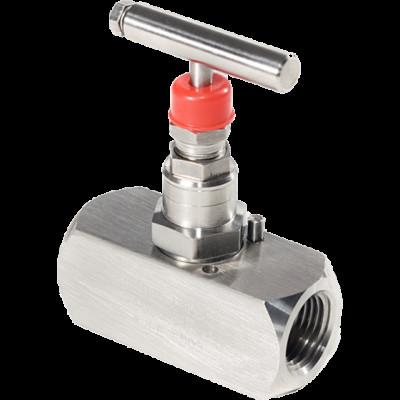

Stainless Steel Needle Valve 1/2 NPT Or BSPT Female Thread Integral Forged 6000psi
Price:
1-100
MOQ:
1pc
Delivery Time:
3-5 days
Brand:
TOBO
Product Description
Stainless Steel 1/2 NPT or BSPT Female Thread Integral Forged Needle Valve 6000psi
Forged Stainless Steel Needle Valve
Metal-to-metal Seat
Above 6000PSI Pressure
NPT Screaw End
Forged Stainless Steel Needle Valve
Metal-to-metal Seat
Above 6000PSI Pressure
NPT Screaw End
Description:
· Body Material:Stainless Steel (SS316,SS304)
· Metal to metal seat
· NPT Screwed End
· Threaded End: ASME B1.20.1,BS21/2779,DIN 2999/259,ISO228/1,JIS B0203,ISO 7/1
· Size: NPS 1/8”-1”
· Working Pressure: above 6000psi
· Working temperature: from -40 °C to 260 °C
· Working Medium: Water, Oil, Gas ect.
Technical Data
|
Order information
|
End Connection
|
Orifice
|
Flow
coefficient
|
A
|
|||
|
(in)
|
(mm)
|
(in)
|
(mm)
|
(mm)
|
(in)
|
(mm)
|
|
|
-JZTC1-SK-2
|
1/8
|
3.17
|
0.08
|
2
|
0.09
|
1.89
|
48
|
|
-JZTC1-SK-4
|
1/4
|
6.35
|
0.125
|
3.2
|
0.21
|
2.46
|
62.5
|
|
-JZTC1-SK-6
|
3/8
|
9.52
|
0.25
|
6.4
|
0.73
|
3.08
|
78.2
|
|
-JZTC1-SK-8
|
1/2
|
12.7
|
0.25
|
6.4
|
0.73
|
3.3
|
83.8
|
|
-JZTC1-SK-12
|
3/4
|
19.05
|
0.25
|
6.4
|
0.73
|
3.39
|
86
|
|
-JZTC1-SK-3mm
|
0.118
|
3
|
0.08
|
2
|
0.09
|
1.89
|
48
|
|
-JZTC1-SK-6mm
|
0.236
|
6
|
0.125
|
3.2
|
0.21
|
2.36
|
60
|
|
-JZTC1-SK-8mm
|
0.315
|
8
|
0.125
|
3.2
|
0.21
|
2.46
|
62.5
|
|
-JZTC1-SK-10mm
|
0.374
|
10
|
0.25
|
6.4
|
0.73
|
3.08
|
78.2
|
|
-JZTC1-SK-12mm
|
0.472
|
12
|
0.25
|
6.4
|
0.73
|
3.3
|
83.8
|
|
-JZTC1-SK-14mm
|
0.551
|
14
|
0.25
|
6.4
|
0.73
|
3.3
|
83.8
|
|
-JZTC1-SK-18mm
|
0.709
|
18
|
0.25
|
6.4
|
0.73
|
3.39
|
86
|
|
Order information
|
B
|
H
|
F
|
|||
|
(in)
|
(mm)
|
(in)
|
(mm)
|
(in)
|
(mm)
|
|
|
-JZTC1-SK-2
|
0.94
|
24.0
|
1.58
|
40.2
|
1.75
|
44.4
|
|
-JZTC1-SK-4
|
1.2 3
|
31.2
|
1.6 6
|
42.2
|
1.7 5
|
44.4
|
|
-JZTC1-SK-6
|
1.5 4
|
39.1
|
2.3 1
|
58.7
|
2.5 0
|
63.5
|
|
-JZTC1-SK-8
|
1.6 5
|
41.9
|
2.3 1
|
58.7 |
2.5 0
|
63.5
|
|
-JZTC1-SK-12
|
1.6 9
|
43.0
|
2.3 1
|
58.7
|
2.5 0
|
63.5
|
|
-JZTC1-SK-3mm
|
0.9 4
|
24.0
|
1.5 8
|
40.2
|
1.7 5
|
44.4
|
|
-JZTC1-SK-6mm
|
1.1 8
|
30.0
|
1.6 6
|
42.2
|
1.7 5
|
44.4
|
|
-JZTC1-SK-8mm
|
1.2 3
|
31.2
|
1.8 2
|
46.2
|
1.7 5
|
44.4
|
|
-JZTC1-SK-10mm
|
1.5 4
|
39.1
|
2.3 1
|
58.7
|
2.5 0
|
63.5
|
|
-JZTC1-SK-12mm
|
1.6 5
|
41.9
|
2.3 1
|
58.7
|
2.5 0
|
63.5
|
|
-JZTC1-SK-14mm
|
1.6 5
|
41.9
|
2.3 1
|
58.7
|
2.5 0
|
63.5
|
|
-JZTC1-SK-18mm
|
1.6 9
|
43.0
|
2.3 1
|
58.7
|
2.5 0
|
63.5
|
|
Compatible Pipe Material
|
Multi-Purpose
|
|
Connection
|
Screw on
|
|
Features
|
Adjustable
|
|
Material
|
Stainless steel
|
|
Maximum Pressure (psi)
|
3000
|
|
Maximum Working Temperature (F)
|
100
|
|
Product Weight (lb.)
|
0.625lb
|
|
Inlet Diameter (In.)
|
1/4~1
|
|
Outlet Diameter (In.)
|
1/4~1
|
|
Product Height (in.)
|
1.75
|
|
Product Length (in.)
|
0.98
|
|
Product Width (in.)
|
1.63
|
