SS304 Wafer Knife Gate Valve DN150 PN10 PN16 ISO9001
SS304 Knife Gate Valve Wafer Handwheel Knife Gate Valve DN150 PN10 PN16
Advantage:
1. OEM Factory : Professional manufacturer, clients from whole world.
2. High Quality, Competitive Price: Custom is accepted.
3. Complete Service: Long service Life, Fast delivery, Multilingual services.
4. Certificates: ISO9001, CE, NSF, TS, WRAS.
5. Low MOQ: Ready for providing the sample and producing some small orders.
|

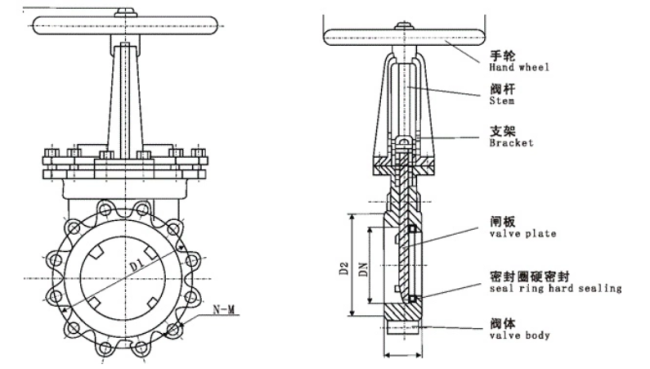

Main parts and materials |
||
|
NO. |
Main parts |
Materials |
|
1 |
Valve body |
Carbon steel/Stainless steel |
|
2 |
Bonnet |
Carbon steel/Stainless steel |
|
3 |
Disc |
Stainless steel |
|
4 |
Stem |
Stainless steel |
|
5 |
Sealing surface |
F4/Stainless steel/Hard alloy |
|
Function and specification |
|||||
|
Type |
PN(MPa) |
Testing pressure(MPa) |
Suitable temperature(℃) |
Suitable medium |
|
|
Strength(water) |
Enclose(water) |
||||
|
PZ73W/H/Y-10C/P |
1.0 |
1.5 |
1.1 |
≤120 |
Paper pulp, coal-slurry,sewage,dust mixture of water,ash residue. |
|
PZ73W/H/Y-16C/P |
1.6 |
2.4 |
1.8 |
||
Product Description
Main Feature:
This valve is widely applied to pipelines such as water supply and drainage, construction, oil, chemical industry, natural gas, medicine, power plant, nuclear power plant and urban pollution discharge etc for purpose of adjusting or cutting the flow contains various medium, such as thick granule, sticky liquid and floating contamination ect.
|
Product Name |
Material |
|
Valve Body |
Ductile iron, Carbon steel, Stainless steel |
|
Knife |
Stainless steel |
|
Stem |
Stainless steel |
|
Handwheel |
Cast iron |
|
Sealing |
NBR/EPDM/PTFE or Metal Seat |
|
Technical Date |
Material Specification |
||
|
Nominal Diameter |
DN50-600mm |
Valve Body |
WCB/stainless steel |
|
Nominal Pressure |
PN10/PN16 |
Hand Bar |
Cast Iron or Ductile Iron or Stainless Steel |
|
Operation Temperature |
-40°C~225°C |
||
|
Power |
Manual |
Seal Material |
EPDM OR NBR |
|
Suface Treatment |
Painting |
Valve Stem |
Carbon Steel |
|
Application |
Portable water, water distribution service & feed lines, sewage disposol, irrigation, fire protection pipe systerm, etc. |
||
