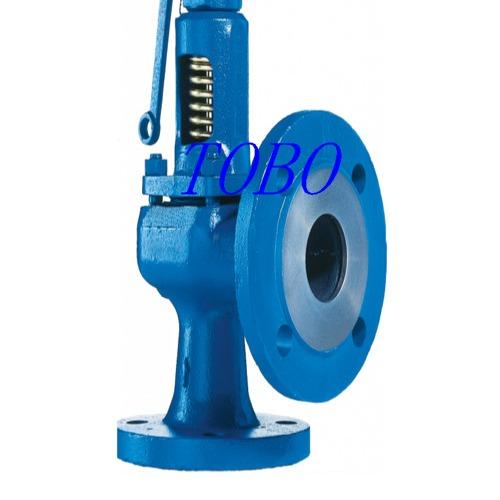

PN16 DN20 Full Lift Spring Loaded Pressure Safety Valve , Steam Boiler Relief Valve

PN16 DN20 Stainless Steel Full Lift Spring-Loaded Steam/Boiler Safety Relief Valve

Full bore type spring loaded safety pressure relief valve with wrench is used for the equipment and pipeline of steam and air, with working temperature less than 350℃,A44Y is used for the equipment and pipeline of air and petroleum gas, with working temperature less than 300°C as overpressure protect device.

Take for extra pressure protection Devices.
Flange connecting dimensions of comply with Standard series first and second of JB/T-94 when the pressure less than 6.4Mpa, comply with Standard series second of JB/T-94 when more than 6.4Mpa.

Application:

Sanitary stainless steel safety valve, also called pressure relief valve, is widely used to protect pipe lines and pump from break down by over pressure in food, beverage, pharmacy, brewery, wine, diary industries.

Working Principle:

• Set the valve pressure at a specific value
• Valve is normally closed by outside force
• When pipeline pressure exceeds the set value, the valve will open automatically
• Medium is discharged through safety valve
• Pipeline pressure reduces and returns to safety value
• Valve closes by itself until next cycle of excessive pressure

Specification:

• Size: DN25 - DN80, 1" - 3"
• Calibration pressure range: 0 - 6 bar
• Surface treatment: Inside MP Ra<0.8 μm; Outside matt processed
• Max. temperature: 121℃
• Sealing material: EPDM
• Medium: Liquid, gas
• Butt weld end dimension: according to DIN, SMS, 3A, ISO, BS
