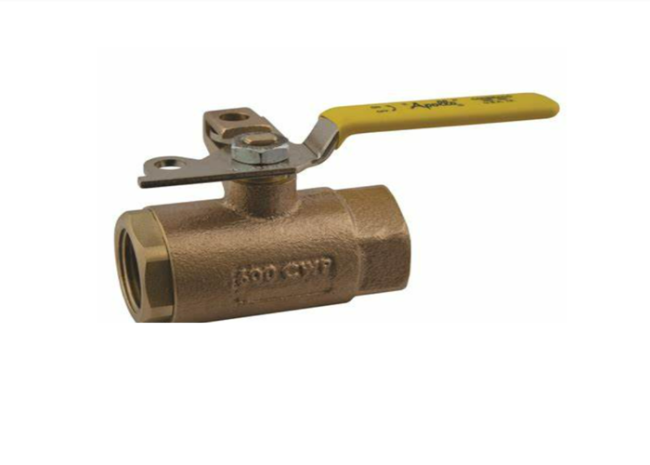

Product Description

Application:
Ball valve is well used in food, beverage, chemical and cosmetic industries to control medium flow. The full port design with zero restriction makes it an optimum choice for viscous and particulate liquids.

Working Principle:
Manual ball valve can be operated through actuator(90 degree rotary handle), actuator with the hand is to revolve the axial movement unto 90 degree, so the valve can open or close.
Pneumatic actuator is to covert the axial movement of piston to be 90 degree rotation of valve shaft, so that the valve can be open or close to achieve the requirement of control and open /close for the pipeline system.



It Is Widely Used In Beverage, Brewing, Oil Refinery, Cosmetic, Chemical Industries.

˙ Free of maintenances

˙ Compact and portable

˙ Small operating torque

˙ Gasket complies with PTFE FDA 177.2600

˙ Hand lever can be installed on the side of the valve body, no matter of the flow direction.

˙ Connection ends: thread, clamp, weld,flange, DIN, SMS, RJT, FIL.

˙ It can match with pneumatic and electricactuators.

˙ Material for the part contacted with media is AISI 304/316L. Other part is AISI 304

˙ Type of valves: One way ball valve, three-piece ball valve. Three-way ball valve

˙ Type of cores: T type, L type, direct type.

˙ Material quality:AISI 304,316L
