Three-Piece Stainless Steel 304/316L Sanitary Manual Ball Valve
Price:
1-100
MOQ:
1pc
Delivery Time:
2-3days
Brand:
TOBO
Product Description
Three-Piece Stainless Steel 304/316L Sanitary Manual Ball Valve
SPECIFICATION:
| ITEM: | Three-Piece Stainless Steel 304/316L Sanitary Manual Ball Valve |
| Material of valve body: | 1.4401/304, 1.4404/316L |
| Seal material: | PTFE(FDA 21CFR 177.2600) |
| Size: | 0.5"-2.5'' |
| Max. temperature: | -20~150 degree centigrade (up to diaphragm gasket) |
| Max. pressure: | Standrad→ NC: EPDM (6BAR), PTFE (4.5BAR) Optional→ NC: EPDM (8BAR), PTFE (6BAR) Optional→ NO/AA: EPDM (8BAR), PTFE (6BAR) |
| Casting valve body: | 1.4404/316L, 1.4401/304 |
| Forging valve body: | 1.4404/316L, ASME BPE/1.4435 Nb2 Fe <0.5% |
| Connection way: |
Clamped ,Welded, Threaded
|
| Optional operaton: | By pneumatic actuator, electric actuator, control unit, positioner etc. |
| Application: | Dairy, food, beverage, pharmacy, cosmetic etc |
| Certification: | CE, ISO, FDA |
| Standard: | 3A/BPE/DIN/ISO/IDF |
| Packing details: | With bubble pack for each valve. Outside packing is by carton or plywood case. Or be custom-made. |
| Material | AISI304 AISI316L |
| Specification | DN25-100 & 1"-4" |
| Standard | ISO, DIN, 3A,SMS etc |
| Connection | Welded, Clamped, Threaded, Flanged |
| Working Principal | manual operation or driving device operation |
| Flow pattern | straight |
| Seat material | PTFE, PCTFE, PEEK or upon your request |
| Orifice size | 2mm to 4.8mm |
| Body construction | 3-piece precision cast body |
| Temperature | -20degree celsius~135degree celsius |
| No. | Name | QTY | Material |
| 1 | Hexagon Headed Bolt | 4 | A2-70 |
| 2 | Clamp-Clamp | 2 | SS304/SS316L |
| 3 | Seal Ring Face | 2 | PTFE |
| 4 | Bushing | 2 | PTFE |
| 5 | Valve Body | 1 | SS304/SS316L |
| 6 | Sphere | 1 | SS304/SS316L |
| 7 | Elastic Washer | 4 | A2-70 |
| 8 | Hexagon Nut | 4 | A2-70 |
| 9 | Stem | 1 | SS304/SS316L |
| 10 | Stem Seal-I | 1 | PTFE |
| 11 | Stem Seal-II | 1 | PTFE |
| 12 | Stem Anti Wear Pad | 1 | POM |
| 13 | Wave Washer | 1 | SS304 |
| 14 | Stem Seal Lock Nut | 1 | SS304 |
| 15 | Handle Support Pad | 1 | SS304 |
| 16 | Elastic Washer | 1 | A2-70 |
| 17 | Hex Lock Nut | 1 | A2-70 |
| 18 | Handle Assembly | 1 | |
| 19 | Inner Six Angle Screw | 1 | A2-70 |
| 20 | Hexagon Nut | 1 | A2-70 |
Product Description

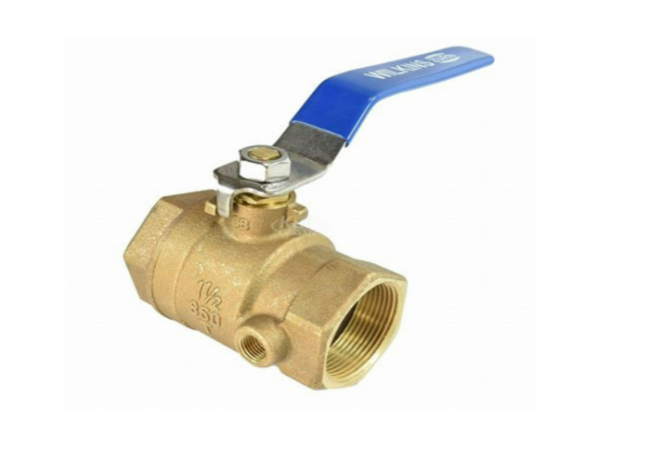

2 pcs full bore brass Ball Valve. conform to BSEN13828-2003
Including 2PC/3PC gas ball valve and water meter ball valve.
1.Material:CZ132,CZ122,CW602,CW617N,C36000
2.Nominal pressure: 2.5MPa
3.Suitable medium: Water, no-causticity liquid, and steam
4.Working temperature: -20 to 120° C
5.Brass ball with chrome plating and steel handle stem or iron handle
6.Full port Size: 1/2"-4"
7.Female x female
Full Port, Brass Ball Valves are used in commercial and industrial applications for a full range of liquids and gases. They feature a bottom-loaded blowout-proof stem, virgin PTFE seats, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated brass ball, brass adapter, and steel handle or iron handle.Thread: BSP, NPT
.
Customized Designs are Accepted,We can produce various ball valve according to your request.
Including 2PC/3PC gas ball valve and water meter ball valve.
1.Material:CZ132,CZ122,CW602,CW617N,C36000
2.Nominal pressure: 2.5MPa
3.Suitable medium: Water, no-causticity liquid, and steam
4.Working temperature: -20 to 120° C
5.Brass ball with chrome plating and steel handle stem or iron handle
6.Full port Size: 1/2"-4"
7.Female x female
Full Port, Brass Ball Valves are used in commercial and industrial applications for a full range of liquids and gases. They feature a bottom-loaded blowout-proof stem, virgin PTFE seats, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated brass ball, brass adapter, and steel handle or iron handle.Thread: BSP, NPT
.
Customized Designs are Accepted,We can produce various ball valve according to your request.
