DN100~DN3400 Stainless 304 316 Steel API 600 Flange Ends Globe Valve HS 8481804090
Price:
1.2USD
MOQ:
3 PCS
Delivery Time:
7work days
Brand:
TOBO
Product Description
DN100~DN3400 ANSI Stainless 304 316 Steel API 600 Flange Ends Globe Valve
Product Description

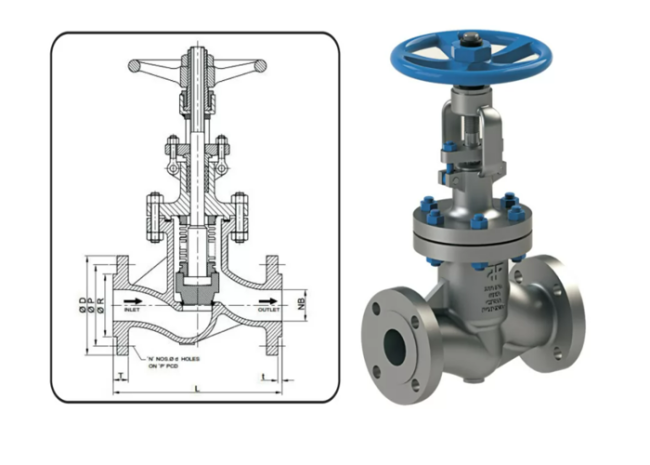

ANSI 150LB/300LB CF8/304 CF8M/316 Flanged Stainless Steel Globe Valve
A globe valve, different from ball valve, is a type of valve used for regulating flow in a pipeline, consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body.
Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. This has an opening that forms a seat onto which a movable plug,can be screwed in to close (or shut) the valve.The plug is also called a disc or disk.In globe valves,the plug is connected to a stem which is operated by screw action using a handwheel in manual valves.Typically,automated globe valves use smooth stems rather than threaded and are opened and closed by an actuator assembly.
A globe valve, different from ball valve, is a type of valve used for regulating flow in a pipeline, consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body.
Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. This has an opening that forms a seat onto which a movable plug,can be screwed in to close (or shut) the valve.The plug is also called a disc or disk.In globe valves,the plug is connected to a stem which is operated by screw action using a handwheel in manual valves.Typically,automated globe valves use smooth stems rather than threaded and are opened and closed by an actuator assembly.
Descriptions:
1) Design standard: ASME B16.34
2) Flange standard: ASME B16.5
3) Face to Face: ASME B16.10
4) Inspection standard: API598
5) Material: ASTM A351-CF8,CF8M,304,316
ASTM A216-WCB
6) Working pressure: 150LB/300LB
7) Sizes: 1/2" ~ 16"
8) Metal to metal sealing
9) Hand Wheel Operation
10) Working temperature:-20~ 300 degree C
11) Working medium: Water,Oil,Acid,ect.
| Standard | SS 316 | SS 316L | SS 316H | SS 316TI |
| UNS | S31600 | S31603 | S31609 | S31635 |
| WERKSTOFF NR. | 1.4401 / 1.4436 | 1.4404 / 1.4435 | - | 1.4571 |
| AFNOR | Z7CND17‐11‐02 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | - | Z6CNDT17‐12 |
| JIS | SUS 316 | SUS 316L | - | SUS 316Ti |
| GOST | - | 03Ch17N14M3 / 03Ch17N14M2 | - | 08Ch17N13M2T |
| BS | 316S31 / 316S33 | 316S11 / 316S13 | - | 320S31 |
| EN | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 | - | X6CrNiMoTi17-12-2 |
| Type | Flange globe valve |
| Application | Manual |
| Temperature of Media | Minus 29 degrees to 150 degrees |
| Power | Manual |
| Media | Water, Oil, Air, And Some Corrosive liquid |
| Port Size | DN32 |
| Structure | Flange globe valve |
| Size | 1-1/4inch |
Part Material
| No. | Part Name | Material | No. | Part Name | Material |
| 1 | Body | CF8 CF8M WCB | 10 | Stem | 201 |
| 2 | Disc | CF8 CF8M WCB | 11 | Handwheel | WCB |
| 3 | Open-loop | 201 | 12 | Valve-Stem Nut | 201 |
| 4 | Valve Cover | CF8 CF8M WCB | 13 | Packing Gland | 201 |
| 5 | Bolt Stud | 201 | 14 | Bolt | 201 |
| 6 | Gasket | PTFE | 15 | Hexnut | 201 |
| 7 | Hexnut | 201 | 16 | Slipknot bolt | 201 |
| 8 | Packing | Flexible graphite | 17 | Loking plate | 201 |
| 9 | Gland | CF8 CF8M WCB |
And the manufacturing and maintenance are convenient,and the pressure application range is wide.
| Type | Flange globe valve |
| Application | Manual |
| Temperature of Media | Minus 29 degrees to 150 degrees |
| Power | Manual |
| Media | Water, Oil, Air, And Some Corrosive liquid |
| Port Size | DN32 |
| Structure | Flange globe valve |
| Size | 1-1/4inch |
