1-1/4 Inch API600 ASME WCB 304/316 Flange End Globe Valve HS 8481804090
Price:
1.2USD
MOQ:
3 PCS
Delivery Time:
7work days
Brand:
TOBO
Product Description
1-1/4inch API600&ASME Wcb 304/316 Stainless Steel Flange Ends Ball Globe Check Gate Valve 150lb 300lb
Product Description

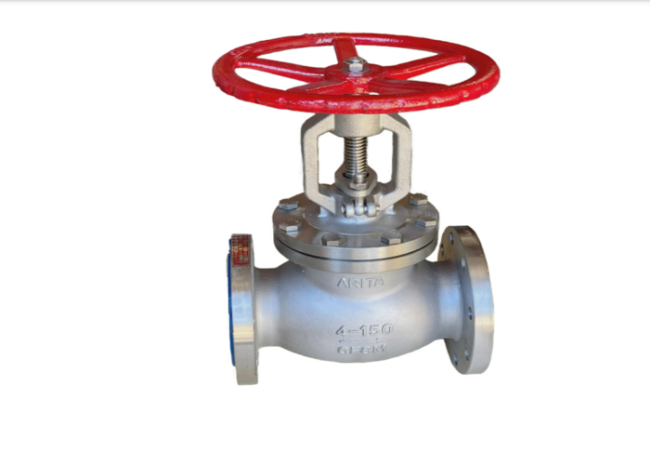

ANSI 150LB/300LB CF8/304 CF8M/316 Flanged Stainless Steel Globe Valve
A globe valve, different from ball valve, is a type of valve used for regulating flow in a pipeline, consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body.
Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. This has an opening that forms a seat onto which a movable plug,can be screwed in to close (or shut) the valve.The plug is also called a disc or disk.In globe valves,the plug is connected to a stem which is operated by screw action using a handwheel in manual valves.Typically,automated globe valves use smooth stems rather than threaded and are opened and closed by an actuator assembly.
A globe valve, different from ball valve, is a type of valve used for regulating flow in a pipeline, consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body.
Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. This has an opening that forms a seat onto which a movable plug,can be screwed in to close (or shut) the valve.The plug is also called a disc or disk.In globe valves,the plug is connected to a stem which is operated by screw action using a handwheel in manual valves.Typically,automated globe valves use smooth stems rather than threaded and are opened and closed by an actuator assembly.
Descriptions:
1) Design standard: ASME B16.34
2) Flange standard: ASME B16.5
3) Face to Face: ASME B16.10
4) Inspection standard: API598
5) Material: ASTM A351-CF8,CF8M,304,316
ASTM A216-WCB
6) Working pressure: 150LB/300LB
7) Sizes: 1/2" ~ 16"
8) Metal to metal sealing
9) Hand Wheel Operation
10) Working temperature:-20~ 300 degree C
11) Working medium: Water,Oil,Acid,ect.
| Product Name | Stainless Steel Flange Globe Valve |
| 1. Material | A351 CF8M/CF8/CF3 |
| 2. Size | 1/2''~12'' ( DN15~DN300) |
| 3. Certificate | CE&API |
| 4. Port | Full Port |
| 5. Working Pressure | 1.0~10Mpa |
| 6. Connection Ends | flange |
| 7. Working Temp. | -29ºC~230ºC |
| 8. Suitable Medium | Water, Steam, Oil and natural gas etc. |
| 9. Seal | PTFE, RPTFE, PPL |
| 10. Locking | Option |
| 11. Inspection & Testing | API598 |
| Shipment | |
| Delivery Time | 15~45 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | EXW, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping or against copy of BL | |
| Advantage | OEM/ODM is applicable;Our own casting room |
| Others | We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer |
And the manufacturing and maintenance are convenient,and the pressure application range is wide.
| Type | Flange globe valve |
| Application | Manual |
| Temperature of Media | Minus 29 degrees to 150 degrees |
| Power | Manual |
| Media | Water, Oil, Air, And Some Corrosive liquid |
| Port Size | DN32 |
| Structure | Flange globe valve |
| Size | 1-1/4inch |
