UV Aging Test Chamber Machine B-ZW VG95218-2 45x117x50 Climatic Chamber
UV Aging Test Chamber Machine B-ZW VG95218-2 45x117x50 Climatic Chamber
Uv test box box using CNC machine processing molding, beautiful and generous, box cover for two-way clamshell type, easy to operate.

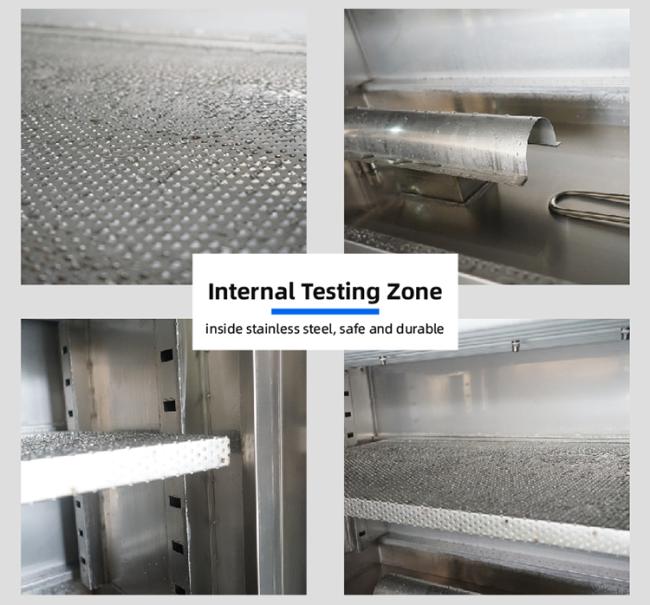

The box liner is made of imported advanced stainless steel plate, and the box liner is sprayed with A3 steel plate. The UV test box increases the appearance texture and cleanliness.
The heating mode is the inner tank heating, fast heating and uniform temperature distribution.
The drainage system uses vortex type and U-type sedimentation device to drain water, convenient for user cleaning.

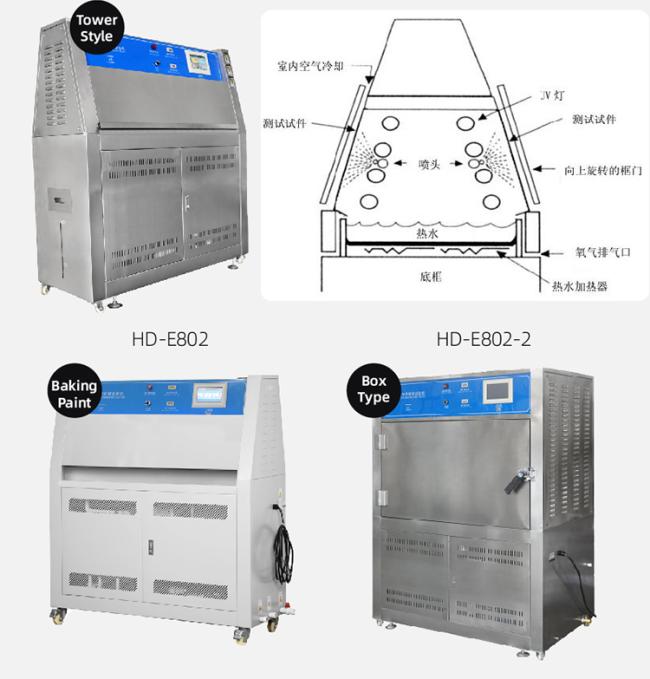

Our UV aging test chamber series includes 4 different types of UV aging test boxes, QUV/se, QUV/basci, QUV/spray and QUV/cw. It can meet the testing standards of coatings, ink, adhesives, plastic products and other industries.
1. Different test methods and procedures: Automatic control, real-time monitoring and display.
2. The sample frame temperature: Sample temperature BPT directly display and automatic control.
3. Condensation control: Condensation directly display and automatic control.
4. Circular manner: Light, condensation and spray directly display and automatic control.
5. Light irradiance: Testing process can be set light irradiance energy and time and monitoring.
6. Spray water: Adjustable and display, automatic control, test process can be set spraying time.
7. The calibration function: Automatic temperature calibration, convenient, fast.
8. Alarm function: Automatic alarm .
9. Water supply way: Automatic feed water.
It has the following performance characteristics:
The heating mode is the inner tank heating, fast heating and uniform temperature distribution
The drainage system uses reflux type and U-type sedimentation device to drain water
The distance between the sample surface and the UV lamp plane is 50 mm and parallel
The actual studio consists of test samples and supports to form the inner wall of the box, trapezoidal
Automatic water refill of tank water level
The lid is bidirectional clamshell type, easy to open and close
High quality fixed PU movable wheel is used at the bottom of the test chamber
Model |
B-ZW | ||||
Internal Dim(DxWxH) |
50x75 | ||||
| External Dim(DxWxH) | 58x128x135 | ||||
| power(kw) | 4KW/3.2kW | ||||
| performance index | Temperature range | RT+10℃-70℃ | |||
| Humidity range | ≥95%R.H | ||||
| Distance between tubes | 35mm | ||||
| Distance between sample and tube | 50mm | ||||
| ultraviolet wavelength | 290nm-400nm UV-A,UV-B,UV-C | ||||
| Lamp wattage | 40W | ||||
| safety protection | Leakage, short circuit, over temperature, water shortage, over current protection/controller power failure memory | ||||
Packing/Shipping:
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
