Equipment Summary:
Salt Spray Corrosion Testing Chamber isused to test the corrosive resistance of products whose the
surface was treated with paint,electroplating,inorganic and organic film,anode handling,anti-rust oil,etc.
BOTO salt spray test machine can determine the corrosion resistance of iron metal or the iron metal inorganic film or organic film test, such as: electroplating, anode processing, conversion coating, painting, ect.
Corresponding Standard:
1.GB/T 2423.17-1993 salt spray test
2.GB/T 2423.18-2000 salt spray test
3.GB/T 10125-1997 salt spray test
4.ASTM.B117-97 salt spray test
5.JIS H8502 salt spray test
6.IEC68-2-11 salt spray test
7.IEC68-2-52 1996 salt spray test
8.GB.10587-89 salt spray test
9.CNS.4158 salt spray test
10.CNS.4159 CASS Accelerated acetic acid copper salt spray test
11.GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test

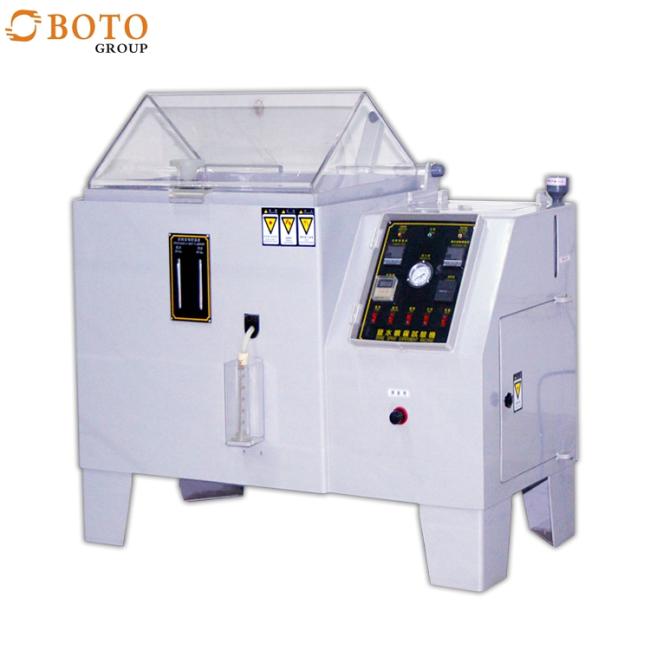

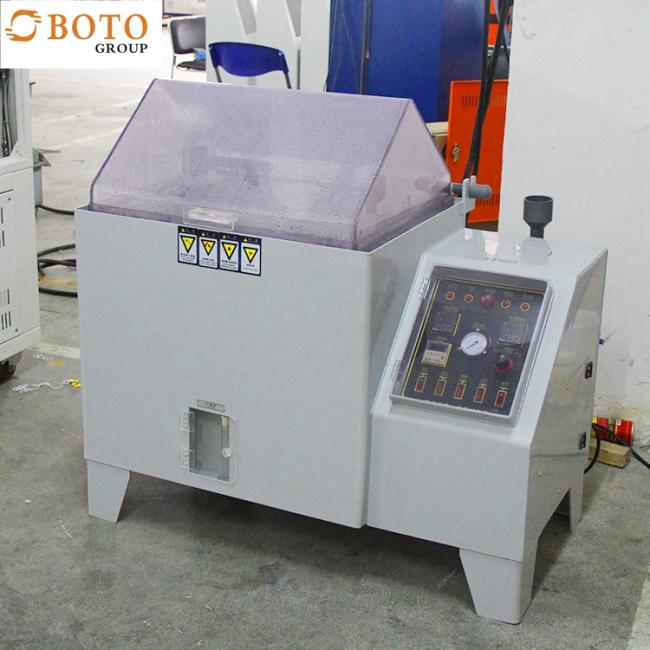

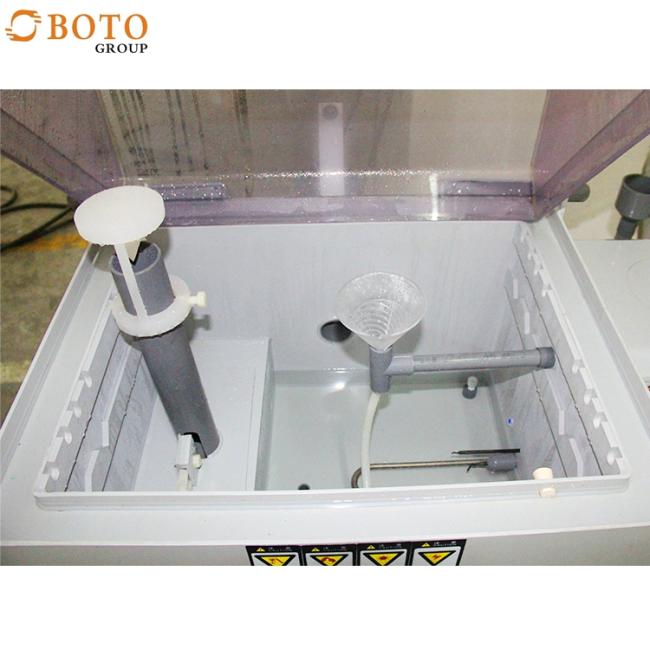

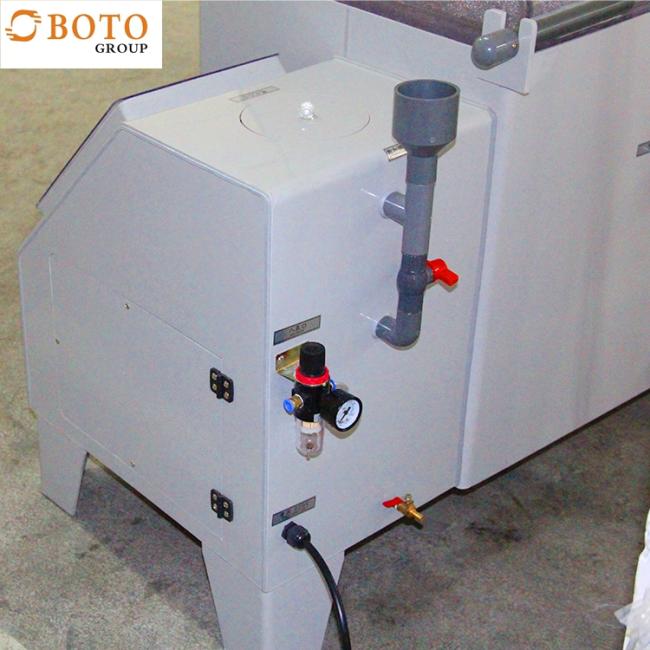

Product Description
The Salt Spray Combined Climate Tester is to test:
If surface of different material can adopt the corrosion resistance, as well as changes in temperature and humidity after the plating, anodic treatment, spraying, anti-rust oil and other anti-corrosion treatment. This machine is designed to test the influence of salt pollution that might accelerate the corrosion on the metal material outdoors. The device contains the circulation of the sample to the salt fog, dry, hot and humid environment test method.
Salt spray corrosion test chamber is used surface treatment of various material including mechanical, national defense, light industry, electronic, instruments etc. after these anti-corrosive treatment to test the corrosion resistance of their products.
This tester can be used to execute solution as NSS (Neutral Salt Spray), as well as ASS (Acetic acid Salt Spray).
Corresponding Standard :
1. GB/T 2423.17-1993 salt spray test
2. GB/T 2423.18-2000 salt spray test
3. GB/T 10125-1997 salt spray test
4. ASTM.B117-97 salt spray test
5. JIS H8502 salt spray test
6. IEC68-2-11 salt spray test
7. IEC68-2-52 1996 salt spray test
8. GB.10587-89 salt spray test
9. CNS.4158 salt spray test
10. CNS.4159 CASS Accelerated acetic acid copper salt spray test
11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
| Model | BT-609-60 | BT-609-90 | BT-609-120 | BT-609-150 | BT-609-200 |
| Design standard |
GB/T 10587-2006, GB/T 10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371 |
||||
| Test chamber capacity(L) | 108L | 270L | 600L | 750L | 1000L |
| Temperature | Test chamber | NSS.ACSS 35°C±1°C/CASS 50°C±1°C | |||
| Saturated air cylinder | NSS.ACSS 47°C±1°C/CASS 63°C±1°C | ||||
|
Test chamber size L×W×D(cm) |
60*45*40 |
90*60*50 |
1200*1000*500 |
1500*1000*500 |
2000*1000*500 |
| Max capacity of test liquid(L) | 15 | 25 | 40 | 40 | 40 |
| Power | AC220V,10A | AC220V,15A | AC220V,30A | ||
Our company:
OUR CERTIFICATES
packing:
Our Services & Strength:
1. 10 years manufacture in testing machine
2. 5 years supplier
3. 100% QC inspection before shipment
4. 12 months warranty 5. Product Certificated by CE
