High Sealing And Wing Speed Low Noise Battery Dust Test Chamber Environmental Chamber
Price:
2000-4200USD
MOQ:
1 SET
Delivery Time:
25 work days
Brand:
BOTO
Product Description

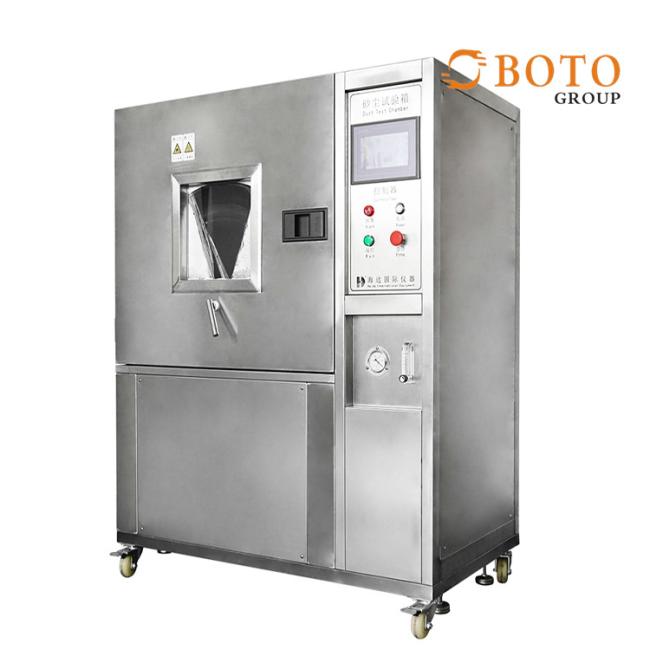

High Sealing And Wing Speed Low Noise 60-600 L/H Dust Test Chamber Environmental Chamber
Product Description
CHAMBER DESIGN FEATURES
1. Chamber material: SUS#304 stainless steel;
2. Transparent window is convenient to observe specimen during testing;
3. Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;
4. Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.
STANDARD FEATURES
| Item | Specification |
| Internal dimension | 800W*800D*800Hmm |
| External dimension | 1300W*1000D*1700Hmm |
| Test sample | Size W20cm- L30cm-D15cm, weight 0.5kg |
| Chamber material | SUS304 Stainless steel |
| Specifications of square mesh sieve | Mesh hole 75um, mesh metal wire diameter 50um |
| Talcum powder amount | 2kg/ m³ |
| Airflow speed | No more than 2m/s |
| Door | Left open door with tempered glass door |
| Controller |
PLC Touch Screen controller, programmable to set as below cycle: a. Blowing dust time (Stop/Blow) m/s b. Cycle time: can be adjusted c. Pre-set test time: 0s ~99m99s |
| Vacuum system | Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump |
| Vacuum pump capacity | 60-600 L/H |
| Fan | Centrifugal fan |
| Safety protection devices | Meter over-temperature function, Phase shortage protection, Power short-circuit protection |
