Salt Fog Corrosion Test Chamber NSS Testing Lab Electronic Salt Spray Tester For Battery Metal Test

Price Negotiable
MOQ: 1set
Delivery Time: 5-25 days
Brand: BOTO
Product Description

Salt Fog Corrosion Test Chamber NSS Testing Lab Electronic Salt Spray Tester For Battery Metal Test





Products Descriptio
 Salt spray test machine can determine the corrosion resistance of iron metal or the iron metal inorganic film or organic film test, such as: electroplating, anode processing, conversion coating, painting, ect.

Salt spray test machine is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a period of time. Test duration depends on the corrosion resistance of the coating; the more corrosion resistant the coating is, the longer the period in testing without showing signs of corrosion. Different coatings have different behaviour in salt spray test and consequently, test duration will differ from one type of coating to another.

Characteristics:
1. Spray nozzle the heart of teser adopt Bo Nute Principle which change saline water into atomization but no crystallization produced.
2. Controller is digital type microcomputer which delivers precision temparature.
3. Parameters show on the display screen such as temparature, humidity, pressure, spray capacity and time.
4. Test specifications are accept worldwild.
Product Paramenters
Model
BT-609-60
BT-609-90
BT-609-120
BT-609-150
BT-609-200
Design standard
GB/T 10587-2006, GB/T 10125-1997,
JIS-D0201, H8502, H8610, K5400, Z2371
Test chamber capacity(L)
108L
270L
600L
750L
1000L
Temperature
Test chamber
NSS.ACSS 35°C±1°C/CASS 50°C±1°C
Saturated air cylinder
NSS.ACSS 47°C±1°C/CASS 63°C±1°C
Test chamber size
L×W×D(cm)

60*45*40

90*60*50

1200*1000*500

1500*1000*500

2000*1000*500
Max capacity of test liquid(L)
15
25
40
40
40
Power
AC220V,10A
AC220V,15A
AC220V,30A
Detail Images



Simply Description of the chamber


Comapny profile

Factory & Offices

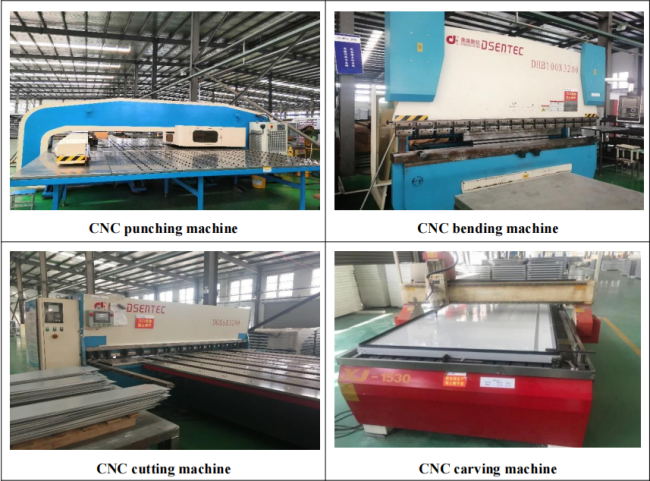

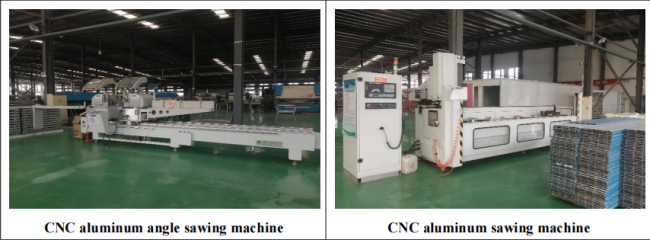

Production line
