Angular 3leg Galvanized Steel Mobile Antenna Tower With MW Brackets
Angular 3leg Galvanized Steel Mobile Antenna Tower with MW Brackets
Description:

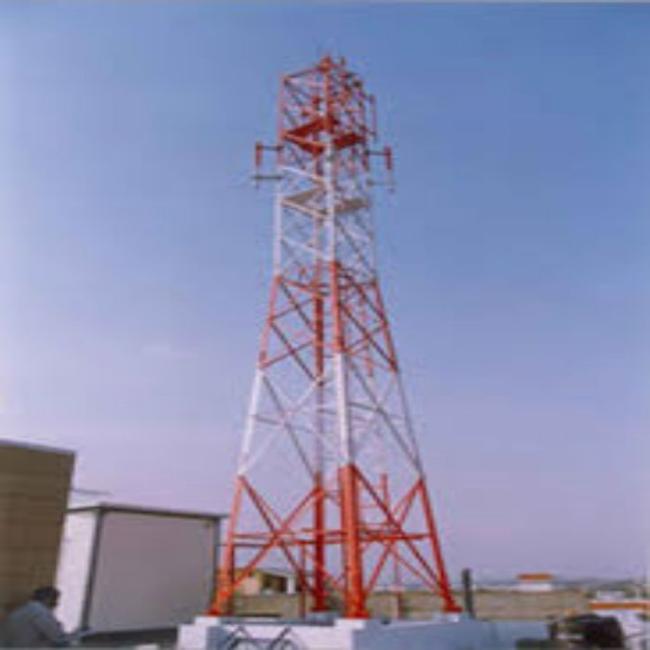

4-legged self-support steel lattice tower is generally made of equal angular steel plates and flat steel plates.
The 4-legged lattice tower is generally divided into several sections and the sections are connected by flat
connecting plates with bolts and nuts. Each tower section is made of angle steelt plates and flat plates.
All the steel plates are prefabricated with cutout, holes and hot dip galvanization.
Applcations:
Communication tower is a kind of signal transmission tower, also called signal transmission tower or
signal tower. Its main function is to support signal transmission and support signal transmission antenna.
Purpose Mobile/Unicom/Transportation Satellite Positioning System (GPS) and other communication departments.
The communication tower is characterized by the fact that in the construction of modern communication and
radio and television signal transmission tower projects, whether users choose the ground plane or the tower
on the top of the building, the communication tower will act as a high communication antenna, increase the
service radius of communication or television transmission signal, and achieve better communication effect.
Specifications:
| Material | Angle steel plates, flat steel plate, bolts and nuts |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 3 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
Feature Advantage:
Purpose of TV tower: TV tower is mainly used for transmission and transmission of microwave, * short-wave
and wireless network signals. It is a building used for broadcasting and television transmission. In order
to make the broadcasting range larger, the television transmission antenna should be higher. In this way,
the TV tower will be higher and higher, and finally become a modern high building. We should spread TV
to every household
Hebei Chang Tong Steel Structure Co., Ltd.located in the hometown of China Tower, is a
modern big-scale professional company fabricating triangular communicationtower,
four-corner communication tower, cable tower, single-tube tower,camouflage
communication tower and transmission linetower.integrating design,fabrication
and marketing,annual production capacity reaches more than 30,000 tons.
Company always adhere to the business strategy of "surviveby quality, develop by credit,
increase efficiency by science andtechnology", continuously carry out technical transformation,
complete production equipment, reliable production process,adopt advanced CNC angle steel
production line, CNC sheetproduction line and various supporting equipment. The
equipment has a first-class iron tower stakeout center, all of which implement microcomputer
lofting, which guarantees the processing quality and provides a strong guarantee for production,
which can fully meet the design and productionrequirements of various types of towers and substation
structures.
Our steel tower products have won good reputation from our customers,including China tower,
China mobile,China unicom,China telecom,State grid and so on.In addition,our products also
were exported to many countries and areas,including South American,Africa,Southeast Asia and
Ireland
