No Hysteresis 60MPa Fuel Pressure Transmitter For Armored Vehicles
0 - 60 MPa PPM-T323A Armored Vehicles And Other Engine Fuel Pressure Transmitter
Product Introduction:
PPM-T323A series pressure transmitter adopts sputtered film or SOI silicon oil-filled sensor, fully welded and packaged in a stainless steel housing, matched with temperature and pressure compensation circuit module, and accurate piezoelectric conversion. The product has high accuracy, long working life, and is applicable Wide temperature range, strong electromagnetic compatibility, resistance to shock and vibration, low power consumption, no hysteresis, good repeatability and lightness.It is suitable for fuel and oil pressure measurement in harsh environments.
Applications :
Mainly used in tank, armored vehicles and other engine fuel, lubricant pressure measurement.Diesel engine, thermal power unit, steam turbine, water turbine, locomotive braking system.
Technical Parameters :
| Measured medium: | gas, liquid |
| Pressure type: | gauge pressure |
| Pressure Range: | 0 to 0.6 MPa, 0 to 2 MPa, 0 to 4 MPa, 0 to 5 MPa, 0 to 12 MPa, 0 to 25 MPa, 0 to 60 MPa |
| Power supply: | 8-32VDC |
| Output signal: | Zero position: 1 ± 0.025VDC Full scale: 5 ± 0.025VDC |
| Repeatability : | 0.15% FS |
| Non-linearity : | ≤0.3% FS |
| Accuracy : | ± 0.5% FS (-43 ℃ ～ + 125 ℃) |
| Long-term stability: | 0.15% FS / year |
| Working medium temperature: | -43 ℃ ～ + 125 ℃ |
| Working environment temperature: | -45 ℃ ～ + 125 ℃ |
| Connection method : | M14 × 1.5-6g |
| Wetted material: | 316 stainless steel |
| Environment: | Meets the requirements of National Military Standard 150 |
| Note: The above technical indicators and test specifications can be customized according to specific requirements | |
Definition of wiring:
| Direct outgoing | Aviation connector | ||||||
| 2-wire system | 3-wire system | 2-wire system | 3-wire system | ||||
 |
Power supply | red | red |  |
Power supply | 1 | 1 |
| Negative power | black | black | Negative power | 2 | 2 | ||
| Signal positive | 一 | green | Signal positive | 一 | 3 | ||

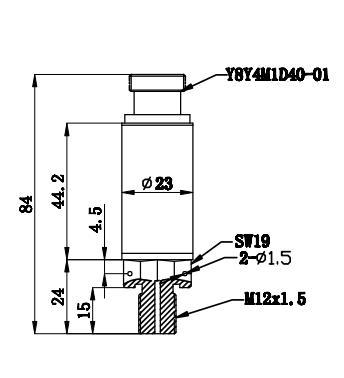

Dimensions in mm :
