Bavagreen SAA Samsung LM301H Quantum Board 660nm Ir Uv 720w

Price Negotiable
Price: 525USD /Pcs
MOQ: 1 Pcs
Delivery Time: Samples : 3-7 days . Bulk order 15-20 days
Brand: BAVAGREEN
Product Description

The best selling bavagreen etl samsung lm301h 660nm ir uv 720w quantum board led





Product Feature



New Technology , High Efficiency and Energy Saving



Samsung 720w quantum board led white is high efficiency lighting solution for horticultural lighting.

BAVAGREEN LED Grow Light run 50% less power than the HPS or CMH .more harvest and higher yield



Full Spectrum 720w quantum board led white Grow Light

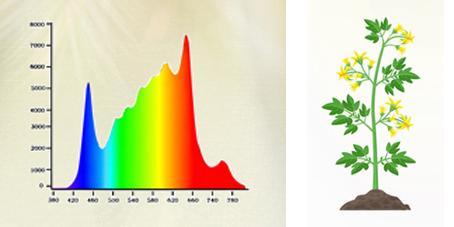

Full specturm 720w quantum board led for your plants, 385nm to 730nm ( UV, White , Red , and IR ). Provide improved growing performance for plants all stages growing,


The Effect of Red and IR


Red light can speed up the rate of photosynthesis, Especially in the flowring stage , Red light will increase the number of flower, far red is the catalyst for Red light and should be applied for a short period to induce flowering and stopped once buds begin to appear



The Effect of UV



Step 1: Spectrum for Seeding and Veg

Turn on red and white switch of 720w quantum board led board.



Step 2: Spectrum for flowering

Turn on red, far red and white switch of 720w quantum board led board.

Step 3: Spectrum for flowering and fruiting ( Medical plant)

Turn on red, uv and white switch of 720w quantum board led board.

720W Samsung lm301h + Oslon 660nm 730nm + Seoul 385nm
Spectrum
Full Spectrum (385nm-730nm )
Light Source
Samsung lm301h top bin diodes + Oslon ssl + Seoul
LED quantity
lm301h 3000K: 1056 pcs. 4000K : 480 pcs Oslon SSL 660nm : 72 pcs. 730nm 24 pcs
Seoul 385nm :24 pcs
Heatsink Size
L 900 x W930x H 31mm (( L 35.4 in × W 36.6 in × H 1.22in)
Light Output PPF
1872Umol/s
Efficiency
2.60 Umol/Watt
Power
720W
Voltage
AC100-277V ,50 / 60 Hz
Mounting Height
6" - 24" (15cm - 60cm ) Above the Canopy

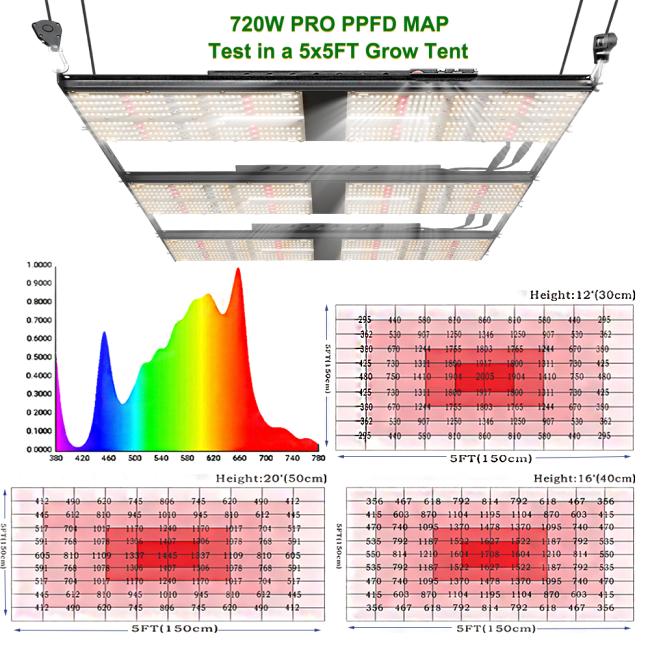

Veg & Flowering Footprint
5 x5 sq ft grow area
Driver
3pcs Meanwell Driver 240h-C2100B
Dimming
0-100% dimming
Warranty
3 Years











BAVAGREEN 720W Samsung LED Grow Light  red uv ir Full Spectrum  lm301h quanutm board 1

BAVAGREEN 720W Samsung LED Grow Light  red uv ir Full Spectrum  lm301h quanutm board 2

BAVAGREEN 720W Samsung LED Grow Light  red uv ir Full Spectrum  lm301h quanutm board 3

BAVAGREEN 720W Samsung LED Grow Light  red uv ir Full Spectrum  lm301h quanutm board 4



BAVAGREEN 720W Samsung LED Grow Light  red uv ir Full Spectrum  lm301h quanutm board 5

BAVAGREEN 720W Samsung LED Grow Light  red uv ir Full Spectrum  lm301h quanutm board 7



Application



BAVAGREEN 720W Samsung LED Grow Light  red uv ir Full Spectrum  lm301h quanutm board 8
