Yellow Canada Standard Movable Temporary Site Fencing 6ft X10ft Steel Security Panels
Yellow Color Canada Standard Movable 6ft X10ft Steel Temporary Security Fence Panels
Temporary security fence panels introduction
As a professional manufacturer of CA temporary fencing, we own experienced technicians and a first-class product line. Use high-quality mild steel wire and tube as raw material, after welding with high-frequency welding technology. Plus strong corrosion treatment of electric galvanized before powder coated or hot dipped galvanized after welding. Service life can be up to 10 years.
Temporary security fence panels specification
| Panel size | 6ft(H)*9ft(L),6ft(H)*9.5ft(L), 6ft(H)*10ft(L) |
| Opening (mm) | 50x100 / 50x150 / 50x200 /60*150 / 75x150 |
| Wire Dia(mm) | 3 /3.5 /4 mm |
| Panel Frame(mm) | 25*25,30*30 etc. ,2.0,2.5 |
| Middle beam | 19*19,20*20,25*25 Thickness:1.2,1.5,1.6 ,1.8,2.0 |
| Steel feet | 3.5"x 34" *7.5mm |
| Top coupler | Welded by round tube or square tube |
| Finishing of fence | hot-dipped galvanized then paint, galvanized then Powder coated |
| Fence color | Dark Green, Orange, Red etc |

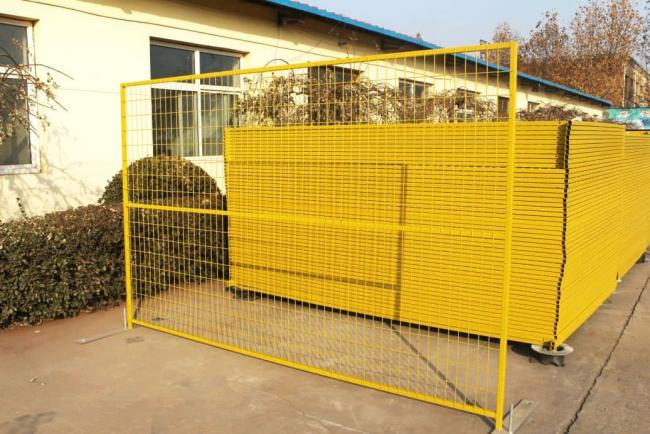

Temporary security fence panels details
Panel Specifications
Some of the most commonly used panel specifications, usually we have a large inventory of these popular specifications. The order can be shipped the same day.
- Standard Panel Size: 6’×9.5′ (182.9cm×289.6cm)
- Available Panel Sizes: 6’×4′, 6’×6′, 6’×8′, 6’×10′
- Wire Diameter: 2.9mm-3.5mm (0.118′-0.13′)
- Mesh Size: 50×100mm(1.97’×3.94′), also supports customization
- Frame Border Pipe: 25×25×(1.2mm-2.5mm thickness)
- Horizontal Middle Brace: 20x20x(1.0mm-1.5mm thickness)
- Available Colours: Safe yellow, orange, green, blue, red, black, etc

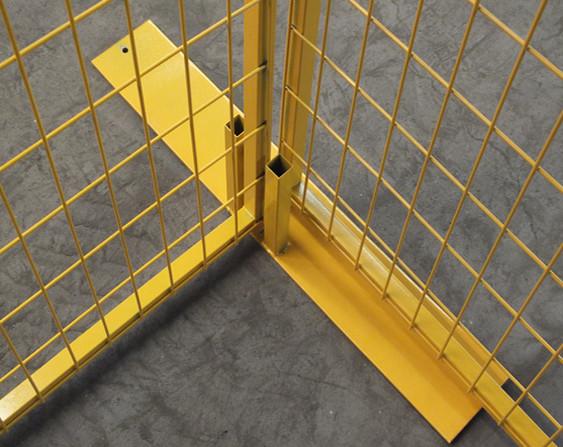

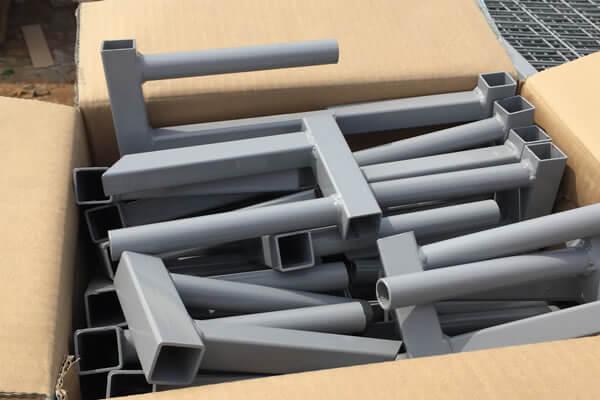

Fence Feet, Panel Stand
Fence feet are used to support fences, which are easy to disassemble and install. It is also can be galvanized or the same anti-corrosion treatment and color as the fence panel.
Made from 6 mm solid or hollow steel and with a steel plate length of over 85 cm, it provides a solid base for the fence.
- Feet Size: 600 – 870mm(length) × 120-160mm(width) × 5-10mm(thickness)
- Inside Round Steel Insert: 22mm(diameter) × 160mm(height)
- Outside Square Steel Insert: 22mm × 22mm × 160 mm(height)
- Square Steel and Round Steel Spacing: 40mm
Top Connector
Insert the connector at the top of the fence to securely attach temporary fence panels together. These top connectors are available in solid or hollow steel and can be hot-dip galvanized or PVC coated, powder-coated finish.
- Connection Top Size: 100mm(length) × 22mm(width) × 10mm(thickness)
- Left Round Steel Insert: 21.6mm(diameter) × 150mm(height)
- Outside Square Steel Insert: 21.7m
Solid steel for better stability, Hollow steel has a lower cost.

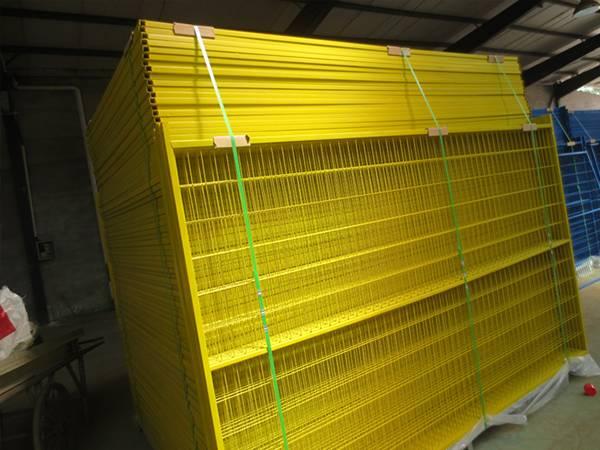

Temporary security fence panels packing
