High Strength Class III Fixed Knot Cattle Fence 100ft Roll Galvanized
High Strength Class III Galvanized Wire Fixed-Knot Fencing
Fixed-knot fencing description

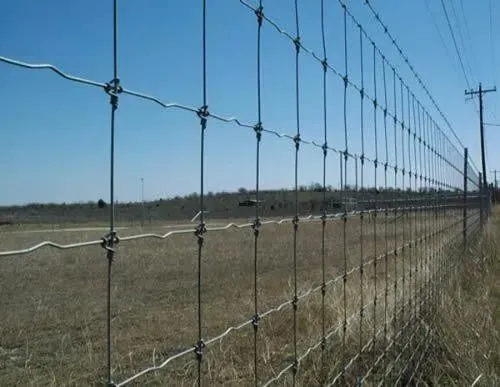

Fixed-knot fencing is ideal for deer exclusion and livestock fencing. This fencing is 12.5 gauge wire class III galvanized, creating a fence that is long-lasting and rust-resistant. The fixed knot locks the vertical stays to the horizontal stays so the fencing cannot be deformed or pushed apart.
The fence openings are graduated to keep out smaller wildlife at the base of the fence. Post for the fixed knot fence should be placed about every 20'. Perfect for livestock, large perimeters, gardens, orchards, and vineyards.
This material is also the best choice for protection solar fields. This is the longest lasting, economical choice when security and funtionality are required.
Bezinal coated fixed knot (DE6027) has a better coating, Zinc Aluminum, than Class III galvanized and is expected to last up to 30 years in the fiel
Hinged Apron fixed knot (DE6031) has a 16" hinged apron attached to the fence roll, perfect to protect against predators digging and ramming.
The fixed knot comes in a variety of configurations. Use the chart below to determine the correct fence for your needs
| FENCE DESIGN |
# LINE WIRES |
FENCE HEIGHT |
WIRE SPACING |
ROLL WEIGHT |
COMMON USES |
|---|---|---|---|---|---|
| 735-6-330’ | 7 | 35" | 6" | 141 lbs | Hog |
| 842-6-330' | 8 | 42" | 6" | 157 lbs | Cattle, Hog |
| 842-12-330' | 8 | 42" | 12" | 110 lbs | Cattle, Goat, Sheep |
| 842-12-660' | 8 | 42" | 12" | 220 lbs | Cattle, Goat, Sheep |
| 949-6-330’ | 9 | 49" | 6" | 182 lbs | Cattle, Hog |
| 949-12-660’ | 9 | 49" | 12" | 257 lbs | Cattle, Goat, Sheep |
| 1348-6-330’ | 13 | 48" | 6" | 234 lbs | Cattle, Hog |
| 1348-12-330’ | 13 | 48" | 12" | 168 lbs | Cattle, Goat, Hog, Sheep |
| 1348-12-660’ | 13 | 48" | 12" | 336 lbs | Cattle, Goat, Hog, Sheep |
| 1561-3-200' | 15 | 61" | 3" | 280 lbs | Goat, Hog, Horse, Sheep |
| 1348-3-200' | 13 | 48" | 3" | 233 lbs | Goat, Hog, Horse, Sheep |
| 1561-6-330' | 15 | 61" | 6" | 279 lbs | Cattle, Hog |
| 2096-6-330’ | 20 | 96" | 6" | 396 lbs | Deer |
| 2096-12-330’ | 20 | 96" | 12" | 282 lbs | Deer |
| 2096-3-165' | 20 | 96" | 3" | 340 lbs | Cattle, Deer, Hog |
| SKU | Roll Specs | Roll Length | Horizontal Stays | Overall Height | Distance Between Vertical Stays | Coating/Color |
| DE6025 | 20/96/6 | 330' | 20 | 96" | 6" | Class III Galvanized |
| DE6020 | 20/96/12 | 330' | 20 | 96" | 12" | Class III Galvanized |
| DE6027 | 20/96/6 | 330' | 20 | 96" | 6" | Bezinal Class III Galvanized |
| DE6030 | 17/75/6 | 330' | 17 | 75" | 6" | Class III Galvanized |
| DE6029 | 13/48/6 | 330' | 13 | 48" | 6" | Class III Galvanized |
| DE6031 | 13/48/6 | 330' | 13 | 48" | 6" | Class III Galvanized |
