80kgs/Mm2 5ft Tall Wire Mesh Garden Fencing With Hinge Knot

Price Negotiable
Price: Please Contact Customer Service For The Specific Price.
MOQ: 60 Piece
Delivery Time: 15-30 day
Brand: AOBIAO
Product Description

5 Ft Galvanized Wire Mesh Garden Zoo Wild Field Fence Wire Cattle Fencing



What Do You Get For Choosing Us?

1. Reply your enquiry in 24 working hours;



2. Experienced staffs will answer all your questions in professional and fluent English;



3. Customized design is available.



4. Exclusive & unique solution can be provided by our well-trained and professional engineers;



5. Special discount can be offered with large quantity;



6. We will try our best to meet your requirements and supply you best quality of the products.



Introduction Of Wire Cattle Fencing

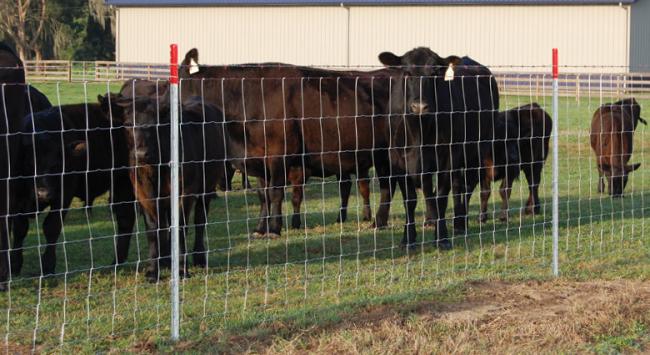

Cattle fence

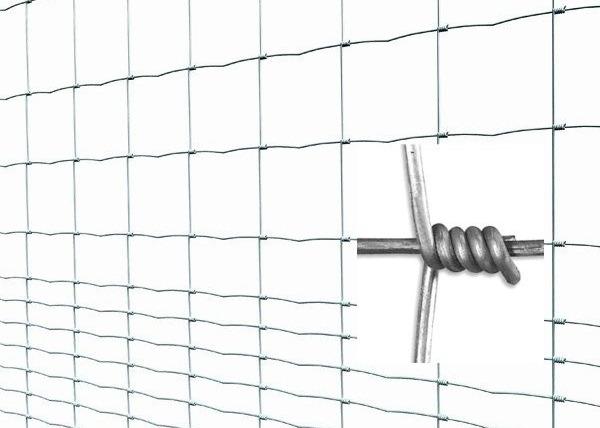

The hinge joint knots is the most common knot in agricultural fencing. The knot is formed by wrapping the vertical stay wire pieces around the line wire at each intersection. This design can also absolve animal impact without damage and is the most economical knot choice available.

Deer fence

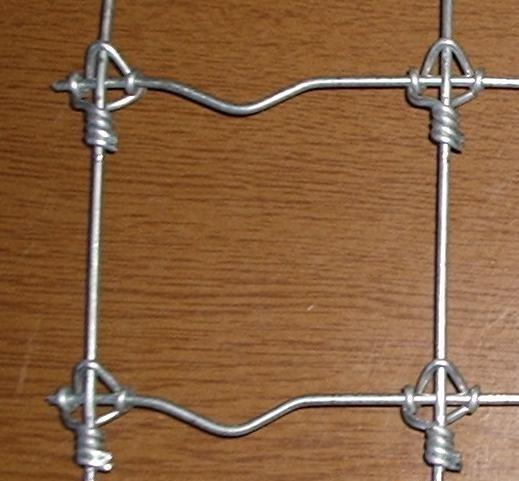

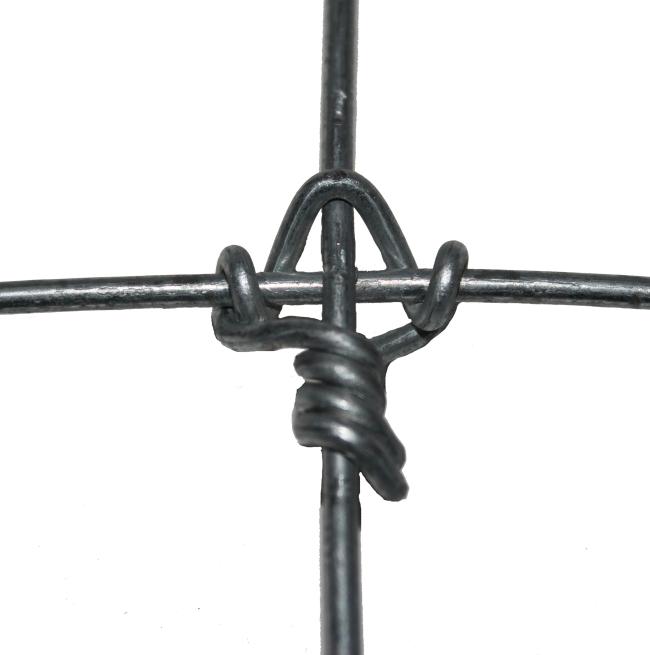

Fixed knot field fence considered top-of-the-line as the fixed knot utilizes a separate piece of wire tightly wrapped around the line wire and stay wire, increasing the fence's vertical strength allowing for increased post spacing and making it very resistant to animal damage.







Specification Of Wire Cattle Fencing

#1:

  • Material: Galvanized iron wire
  • Length: 164'
  • Height: 39.4"
  • Horizontal wire quantity: 8
  • Vertical wire distance: 5.9"
  • Horizontal wire distance: 7.9"/7.9"/5.9"/5.9"/3.9"/3.9"/3.9" (from top to bottom)
  • Top & bottom wire: 0.08"
  • Inner wire: 0.07"



#2:

  • Material: Galvanized iron wire
  • Length: 164'
  • Height: 47.2"
  • Horizontal wire quantity: 10
  • Vertical wire distance: 5.9"
  • Horizontal wire distance: 7.9"/7.9"/5.9"/5.9"/3.9"/3.9"/3.9"/3.9"/3.9" (from top to bottom)
  • Top & bottom wire: 0.08"
  • Inner wire: 0.07"



#3:

  • Total length: 164'
  • Height: 47.2"
  • Horizontal wire quantity: 10
  • Vertical wire distance: 11.8"
  • Material: Galvanized steel with a zinc oxide coating
  • Applications:
  • Perfect for gardens, terraces, zoos, etc. to confine chickens, geese and rabbits as well as deer, sheep and so forth

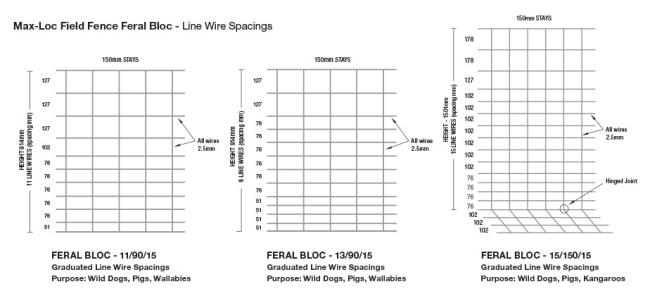

Type
Specification
G. W
kg
inner
diameter
outer
diameter
volume diameter
7/150/813/50
102+114+127+140+152+178



19.3
2.0mm
2.5mm
270mm
8/150/813/50
89(75)+89+102+114+127+140+152
20.8
2.0mm
2.5mm
270mm
8/150/902/50
89+102+114+127+140+152+178
21.6
2.0mm
2.5mm
270mm
8/150/1016/50
102+114+127+140+152+178+203
22.6
2.0mm
2.5mm
270mm
8/150/1143/50
114+127+140+152+178+203+229
23.6
2.0mm
2.5mm
270mm
9/150/991/50
89(75)+89+102+114+127+140+152+178
23.9
2.0mm
2.5mm
270mm
9/150/1245/50
102+114+127+140+152+178+203+229
26.0
2.0mm
2.5mm
270mm
10/150/1194/50
89(75)+89+102+114+127+140+152+178+203
27.3
2.0mm
2.5mm
270mm
10/150/1334/50
89+102+114+127+140+152+178+203+229
28.4



2.0mm
2.5mm
270mm
11/150/1422/50
89(75)+89+102+114+127+140+152+178+203+229
30.8
2.0mm
2.5mm
270mm

Advantage Of Wire Cattle Fencing

Simple in structure, Easy maintenance, Short installation period, Less weight, Easy for transport, and Good ventilation.



1. Preserve the ecological environment and prevent massif from landslide.



2. This quality fencing ensures a solid construction over any terrain.



3. Well-distributed, strong integration,



4. Anti-oxidizing property, Corrosion resistant.



5. Easy maintenance, Short installation period, Less weight, Easy for transport, and Good ventilation.



6. Flat mesh surface, firm and precise structure,

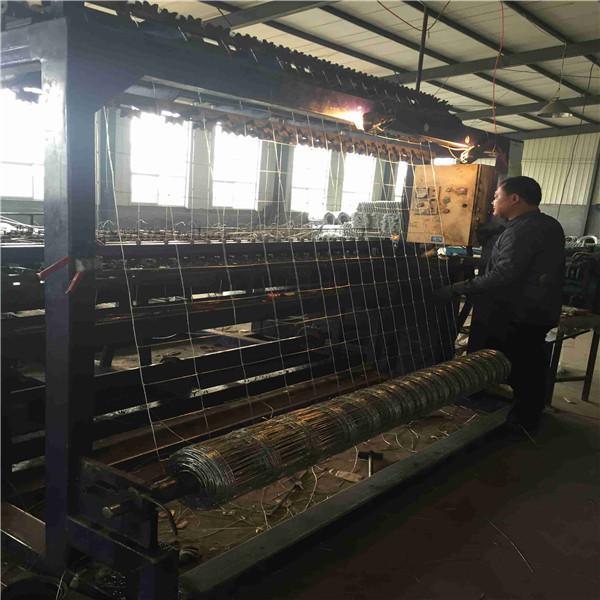

7. Made of high-quality carbon steel wire and stainless steel wire through by our automatic machines.

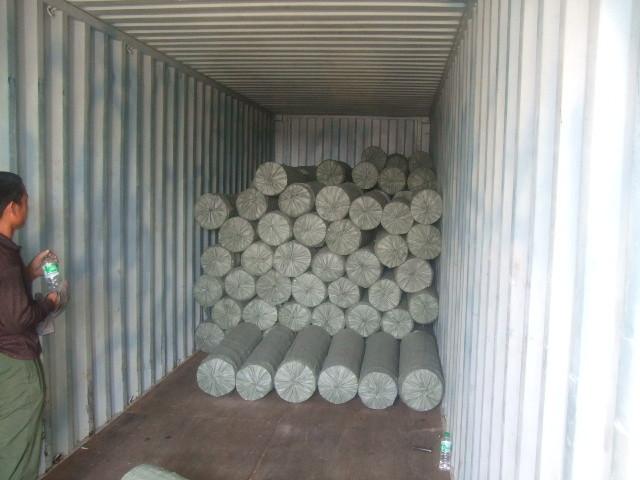

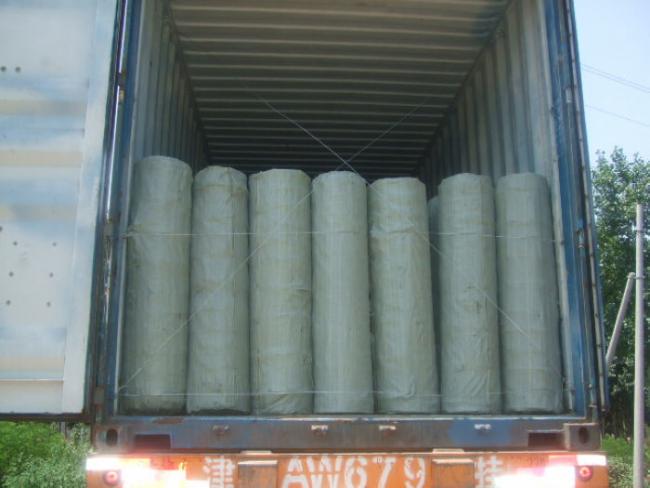

Packing&Shipping

Packing:

Plastic Film, Wooden Pallet, Bulk Package Or As Your Demand

RFQ

Q1: What's your delivery time?

within 7-10 days after received your deposit for one 20' container.



Q2: What's your main market?

South Asia, South America, Western Europe, North America, Africa, Oceania, Mid East, etc.



Q3: Can you produce according to our drawings?

Yes,we can. We have RD technician. They can analyze and make program for you.



Q4: What's your payment terms?

T/T, L/C, Western Union,

30% Deposit, and the balance paid before shipment or at sight of B/L copy.
