Hinge joint 50kgs/M2 50m Length Wire Cattle Fencing For Farm
Galvanized Fixed Knot Field Wire Hinge For Cattle Horse Sheep Animals Deer Wire Mesh Farm Fence

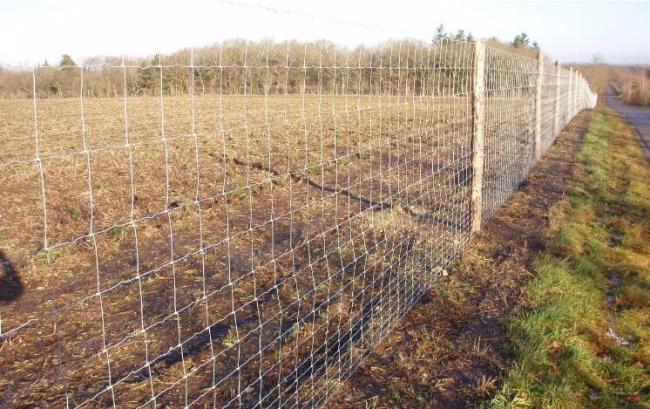

Farm Fence Introduction
Farm fence net grassland fence is made of high strength galvanized steel wire, which has high tensile strength and can withstand the violent impact of cattle, horses, sheep, deer and other livestock. Safety and reliability.
- Cattle fence Material: hot-dipped galvanized wire, which made of Q235 iron rod.
- The tensile strength of the horizontal wire: more than 80-90kg/mm2
- The tensile strength of the vertical wire: more than 40-50kg/mm2
- Farm fence Surface treatment:
-----Class A: Hot dipped galvanized hinge joint field fece(zinc coated:220-260g/m2)
-----Class B: Hot dipped galvanized hinge joint field fence(zinc coated:60-70g/m2)
-----Class C: Electro galvanized hinge joint field fence(zinc coated:15-20g/m2)
Farm Fence Specification
| Material | hot-dipped zinc coated wire, high-tensile steel wires |

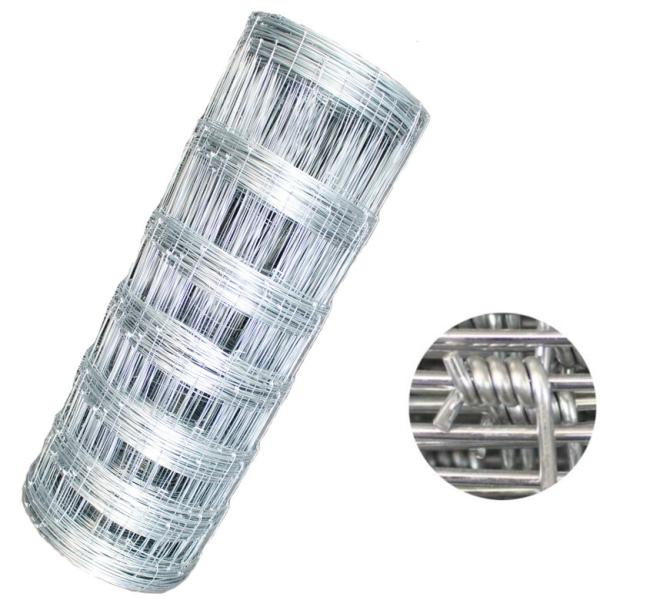

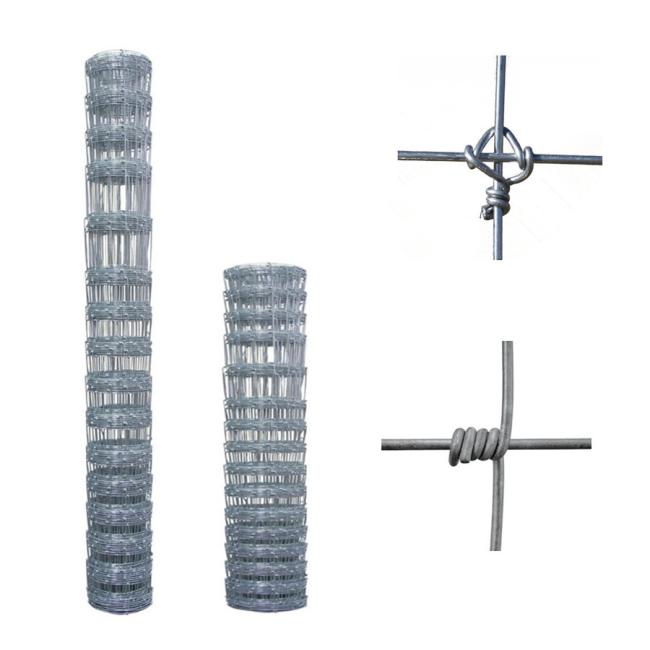

| knot type | hinge knot,fixed knot |
| Surface treatment |
Zinc coated :hot-dipped 220~260g/m2 hot-dipped 60-70g/m2 hot-dipped 15-20g/m2 |
| Edge wire | 2.0~3.4mm |
| Mesh wire | 2.0~2.5mm |
| Height | 80CM,90CM,100CM,110CM,120CM,150CM ,also for your request. |
| Length | 0m~200m (according to your request) |
| opening in cm |
Wrap:20-15-14-13-11-8-6cm Weft :10-15-18-20cm etc,(according to your request |
| Type | Specification/Edge wire2.5mm/Inner wire 2.0mm | Gross weight(KG) | |
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 |
| 2 | 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 20.8 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 |
| 6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 23.9 |
| 7 | 10/150/1245/50 | 102+114+127+140+152+178+203+229 | 26 |
| 8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 27.3 |
| 9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 28.4 |
| 10 | 11/150/1442/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 28.4 |
Farm Fence Drawing
Farm Fence Accessories
Farm Fence Advantage
1>.Grassland fences we offer have innovative and firm structure, flat surface, uniform opening and good integration.
2>.This product offers good flexibility; good pressure resistance, corrosion resistance and weather resistance properties and can serve for a very long time. Even the cut pieces will not deform under pressure.
3>.It has excellent corrosion resistance and anti-oxidizing property. Unlike the welded wire mesh fences with the welding spots getting easily broken, our grassland fences are firm forever once installed and make the best materials for protecting grassland,forestry, highway and environments.
Packing
1.Plastic Film,
2.Wooden Pallet,
3.Bulk Package Or As Your Demand
Quality Control:
1>.We have professional QA /QC to inspect the products quality during every producing process,
2>.so that we can ensure high quality for our customers.
3>.QA/QC Introduction-- JINTONG FACTORY Strictly control quality inspection.
4>.Quality inspection department work is to inspect quality each day in production workshop.
5>.We must ensure that every product to attain to the quality requirements of the customers.
6>.We can pass the third party to test the product quality, and ensure that the quality meet the customers' requirements.
