Oval Bars Livestock Lightweight CE Heavy Duty Cattle Panel 1.6x2.1m 1.8x2.1m
Heavy duty oval bars livestock panels lightweight cattle panels for sale
Brief Introduction
cattle panels is also known cattle yard panel, livestock panel, cattle corral panels, cattle fence panels and so on.
Cattle panel can be used as a portable or permanent fencing solution for livestock. The Panels are perfect for uneven or steep terrain and the measure 2.1m x 1.8m high and are made out of heavy duty hot dipped galvanized pipe to the Australia standard.
No matter what style or size of cattle stockyard you require, you can create it with our premium line of panels,gates,cattle crushes,and additional cattle handing equipment.

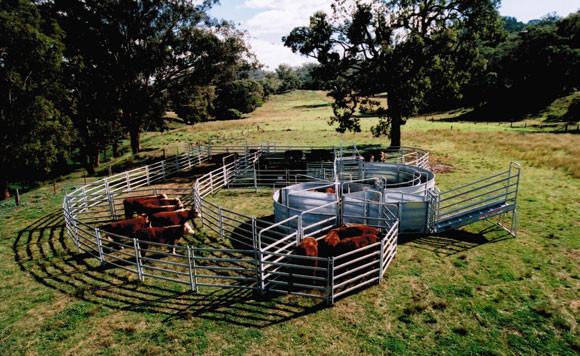

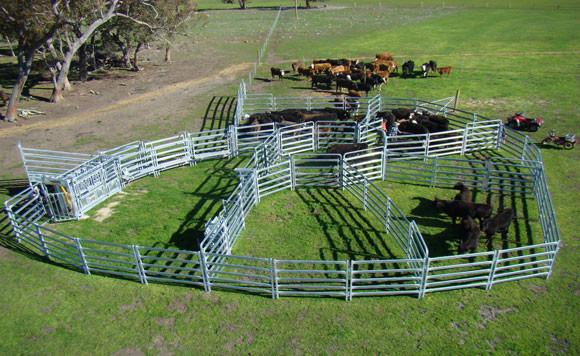

A well designed cattle stockyard will create livestock flow, ensuring that cattle move smoothly from one section of the handling yard into the next, and that they can be sorted with ease. The requirements of every property and operation vary greatly, and you need to consider many factors when designing your ideal stockyard. Choose from a variet of products,panel and gate styles,and installation methods to create your ideal cattle yard.
Specification of Heavy duty oval bars livestock panels
6 Rails: 60mm x 30mm x 1.6mm rails (Uprights: 40mm x 40mm x 1.6mm)
Overall Dimensions (HxW): 1800mm x 2100mm
Manufactured from quality Pre-Zinc Passivated Steel
Rails welded on all four sides Lugs welded on all four sides
Each panel includes BosAg Branded Components:
2 x Foot Plates
2 x 180mm Drop Pins (tapered end)
2 x 40mm x 40mm Square Post Caps
2 x 40mm x 5mm FMS L Cleats used with slotted 20mm x 30mm holes
2 x 40mm x 5mm FMS C Cleats used with slotted 20mm x 30mm holes
| Pipe style | Round pipe | Oval pipe | Square pipe |
| Material | Hot galvanized steel pipe | ||
| Zinc coating | 40-80g/m2 | ||
| Height×Width | 1.6m×2.1m, 1.7m×2.1m, 1.8m×2.1m, 2m×2.1m | ||
| Vertical pipe | Square tube 50×50, 40×40, thickness: 1.6/2.0mm | ||
|
Horizontal pipe
|
Round pipe Ø32mm Oval pipe:30×60mm, 40×80mm Square pipe:40×40mm, 50×50mm |
||
| Horizontal rails | 3-7 | ||
| Surface treatment | Galvanized or PVC coated | ||
| Welding | Bars and post brackets are fully welded, each weld point is protected with paint spraying | ||
| Packing | In steel pallet or in bulk | ||
Fuatures of Heavy duty oval bars livestock panels
Easy to set up or relocate
Virtually maintenance-free
Strong and proven design
Oval tubing means reduced bruising for your cattle
Our service
(1) Factory directly sale.
(2) It can customized according to the requirements or drawings.
(3)With the fastest speed of delivery.
(4)Answer questions in a timely
(5)Enquiry will be replied in 2 hours.
(6)If you have any question,please tell me freely.
FAQ
1) What's your advantage?
We are manufacture. Honest business with competitive price and professional service on export process.
2) What is your minimum order requirement?
According the different product. We can discuss details.
3) How I believe you?
We consider honest as the life of our company.
4) Can you supply sample for me to check?
Yes, we will provide sample for free.
5) How can I know how my order is being done?
We will inspect and test all items in order to avoid damage and missing parts before shipping. The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.
