Hot Dip Galvanized PVC Coated Wire Mesh Diamond Hole Cyclone Fence
Hot Dip Galvanized PVC Coated Wire Mesh Diamond Hole Cyclone Fence
Cyclone Fence product description:
Made from galvanized low carbon steel wire, galvanized chain link fence has the features of resistance to moisture, corrosion resistance, excellent resistance to sudden temperature changes and high durability.
Cyclone Fence Characters :
Mesh Size Choices
2 1/4": Suitable for temporary chain link fence or residential use.
2" Mesh: Standard size. Use on most commercial / industrial applications.
1 3/4" and 1 1/2": Generally uses on tennis courts and bottom of backstops so balls dont get stuck.
1 1/4": Considered climb resistant: This size is pool code in many cities. Consult your building inspector for pool mesh size.
1": Considered higly climb resistant: Commonly seen on clilmb resistant fences for security applications.
Chain Link Fence - Commercial Fence Applications
42" - 60" Chain Link Fence
Posts: 2 3/8" O.D. Terminal/End/Corner; 1 7/8" O.D. Line
Fabric: 9GA x 2" Mesh
Top rail: 1 5/8" O.D.
Middle Rail: 1 5/8" O.D
Bottom Rail: 1 5/8" O.D
Post Caps: Dome Style
Ties: 9GA Aluminum
Footings: Terminal posts 42" deep x 12"; Line Posts 36" x 10";
Concrete: 3000 PSI
72" - 84" Chain Link Fence
Posts: 2 7/8" O.D. Terminal/End/Corner; 2 3/8" O.D. Line
Fabric: 9GA x 2" Mesh
Top rail: 1 5/8" O.D.
Middle Rail: 1 5/8" O.D
Bottom Rail: 1 5/8" O.D
Post Caps: Dome Style
Ties: 9GA Aluminum
Footings: Terminal posts 48" deep x 12"; Line Posts 42" x 10";
Concrete: 3000 PSI
96" - 120" Chain Link Fence
Posts: 4" O.D. Terminal/End/Corner; 2 7/8" O.D. Line
Fabric: 9GA x 2" Mesh
Top rail: 1 5/8" O.D.
Middle Rail: 1 5/8" O.D
Bottom Rail: 1 5/8" O.D
Post Caps: Dome Style
Ties: 9GA Aluminum
Footings: Terminal posts 48" deep x 14"; Line Posts 48" x 12"
Concrete: 3000 PSI
Chain Link Fencing is the product for security because of its strength and long term durability. It is also corrosion resistant, easy to install, versatile and perhaps most of all, a great value for money.
Our fences are available in different styles, heights & colors, can be custom-made according to client's request. The fences come with posts, gates and all necessary fittings if you need.
Please feel free to ask any further question you may have or let us know if you would like to view more pictures.
Cyclone Fence Size:
| Product Name | chain link fence |
| Material | steel |
| Color | green black sliver, Any color |
| Use | Pet kennels ,Yards,Parks,industry |
| Weave style | Plain weave |
| Mesh opening | 60x60mm,50x50mm,75x75mm |
| Wire diameter | 1-7mm |
| Height | 4,5,6,8ft |
| Length | 10m,20m,30m,40m etc |
| Welded wire mesh fence post type | |||||
| Size(mm) | Thickness | Height | Accessories | post type | |
| 40*60 | 1.2-2.0 |
As customers required |
As customers required |
Square Tube | Common Type |
| 50*50 | Common Type | ||||
| 60*60 | 1.2-2.5 | Common Type | |||
| 60*80 | Common Type | ||||
| 80*80 | Strong Type | ||||
| 70*100 | 1.2 | Peach post | Strong Type | ||
| 50*70 | Common Type | ||||
| Φ48 | 1.0-3.0 | Round Post | Common Type | ||
| Φ60 | Strong Type | ||||
Cyclone Fence advantage:
1.Anti-corrosion, anti-aging, sun resistance, weather resistance
2.Bright colors, smooth mesh surface, strong tension, not easy to be deformed by external impact
3.Easy construction and installation, strong flexibility (the shape and size can be adjusted at any time according to site requirements)
4.Available colors: Blue,Green, White, etc.

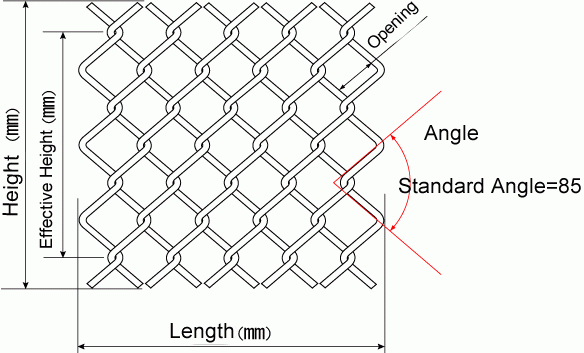

Cyclone Fence drawing
Cyclone Fence usage:
1. Fencing of factories, farms, houses, and animal enclosures.
2. Roof support in longwall mining.
3. To provide fencing across boundaries for security.
4. Effective indoor or outdoor protection around machinery or in test areas, protection against flying objects yet permitting visibility of operations behind screens.
5. It is also used in outdoor fencing
