Orange Good Chemical Stability Fiberglass Mesh Fabric For Wall Reinforcement

Product introduction

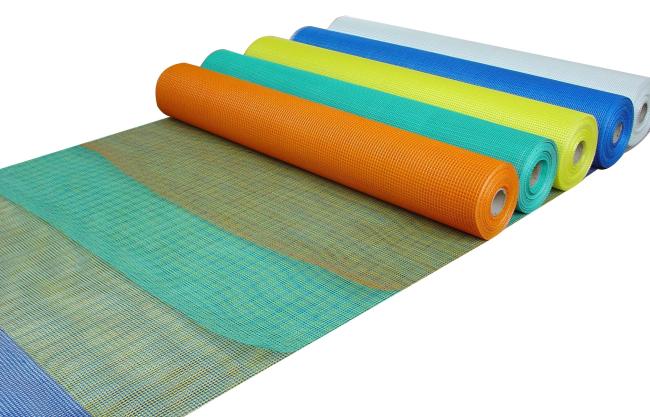

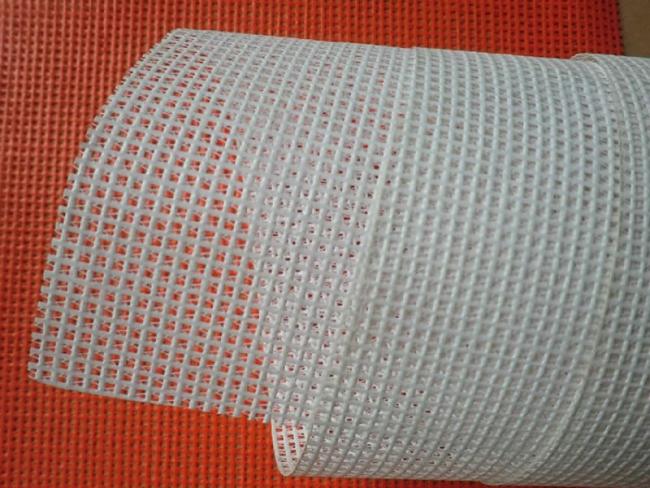

Fiberglass mesh fabric is woven by fiberglass yarn as its basis mesh, and then coated by alkaline resistant latex. It has fine alkaline-resistant, high strength, etc. It is widely used in reinforcing walls, natural marble, plaster board, artificial stone materials and exterior insulation finishing system. It is also widely used for renovating building surface.

Alkaline Resistant Non-adhesive Fiberglass mesh fabric. It has excellent properties like high alkali-resistance, good cohesion, flexibility, tensile strength, increases overall wall strength and prevents cracking.

Specification

A. Mesh size:3x3x6,3x2.85,4x4 5X5 10X10mm
B. Weight per unit area:60g --300/m2
C. Width 1m-2m
D. Length: 50m-300m
E. Color: white(standard), or other orange, blue, etc.
F. Weave type: Leno
G. Yarn Type: C-Glass
H. Alkali Content: Medium

What are the main parameters of the fiberglass mesh?

Our fiberglass mesh fabric meets international EAD quality standards and is marked with the CЄ marking. It is available in the range from 125 g/m2 to 165 g/m2. It is the indicators of this mass per unit area with a mesh size of 5×6/5×5/4×5 mm that are most often used to perform facade works. This requirement is spelled out in the technical documentation ETAG 004. You should not save and buy goods of lower mass per unit area, as you will certainly reduce the reliability and strength of your facade.

Resistant to stretching

The quality weaving and impregnation of fiberglass mesh fabric is easily checked using the following test: a small piece of material must be crumpled like a “snowball” and released – the mesh will completely restore its original shape. In addition, the features of weaving are visually easy to see if weaving is folded in half and controlling the size and alternation of cells.

Product Application

1. Fiberglass mesh is used for wall reinforcement.
2. Fiberglass mesh is an ideal material for exterior wall heat insulation.
3. Fiberglass mesh can be applied to bitumen as roof waterproofing material, so as to strengthen the tensile strength and extend the lifetime of bitumen.
4. For Reinforcement of marble, mosaic, stone, and gypsum board.

The Details of fibergalss Mesh Fabric

1. 75g / m2 or less: Used in the reinforcement of thin slurry, to eliminate small cracks and scattered throughout the surface pressure.
2. 110g / m2 or about: Widely used in indoor and outdoor walls, prevent the various materials (such as brick, light wood, prefabricated structure) of treatment or caused by a variety of expansion coefficient of wall crack and break.
3. 145g/m2 or about: Used in the wall and be mixed in various materials (such as brick, light wood, prefabricated structures), to prevent cracking and scatter the whole surface pressure, especially in the external wall insulation system (EIFS).
4. 160g / m2 or about: Used in insulator layer of reinforcement in the mortar, through shrinkage and temperature changes by providing a space to maintain movement between the layers, prevent crack and rupture due to shrinkage or temperature change.

Packing and Shipping

1. shrinkable plastic film inside,strong plastic bag outside.

2. shrinkable plastic film inside,woven bag outside.

3. shrinkable plastic film inside with carton box.
