Powder Coating 3d Welded Mesh Fencing Metal Steel 2100mm Rolltop
Powder Coating Metal Steel 2100mm Rolltop Weld Rolltop Fencing
Rolltop fencing description:

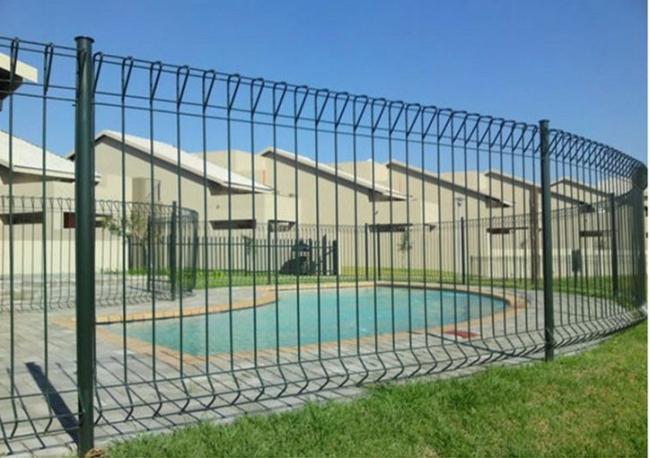

The panels have an attractive, unique, and “user-friendly” closed beam section located along the top and bottom edge of the panel. With no sharp or raw edges, Roll Top panels are suitable where safety is a consideration.
Roll Top Mesh is perfect for use in schools, parks/sports areas, and company premises. Easy to Install
The fence is rolled at the top and bottom which makes each individual panel perfectly rigid and eliminates
the need for tension. The posts are also pre-drilled and ready for assembly on site
Rolltop fencing specification:
| FB Series | ||
| Mesh Spacing (mm) | Vertical | Horizontal |
| 75 | 300 | |
| Wire Diameter (mm) | 6 | |
| Panel Size Height X Width (mm) | 900X2400 | |
| 1200X2400 | ||
| 1500X2400 | ||
| 1800X2400 | ||
| 2100X2400 | ||
| 2400X2400 | ||
| Post Specification (mm) | Ultragal Post 60 (Stainless Steel U-Clip & M6 Bolt&Nut) | |
| FA Series | ||
| Mesh Spacing (mm) | Vertical | Horizontal |
| 50 | 150 | |
| Wire Diameter (mm) | 5 | |
| Panel Size Height X Width (mm) | 900X2400 | |
| 1200X2400 | ||
| 1500X2400 | ||
| 1800X2400 | ||
| 2100X2400 | ||
| 2400X2400 | ||
| Post Specification (mm) | Ultragal Post 60 (Stainless Steel U-Clip & M6 Bolt&Nut) |
|
Rolltop fencing details:
| Fencing Panel | |
| Material: | Steel Welded Wire Mesh |
| Wire Diameter: | Ø 6mm |
| Vertical Spacing: | 75mm |
| Horizontal Spacing: | Varies |
| Height of Fence (mm) | 900, 1200, 1500, 1800, 2100 & 2400 |
| Width of Fence (mm) | 2400 |
| Post | |
| Ultragal Post: | 60mm |
| Accessories : | Galvanized Cap, Stainless Steel U-Clip, Bolts & Nuts |
| Finishing | |
| Hot Dipped Galvanized | |
| *Other Sizes & Powder Coated Available Upon Customer Request |

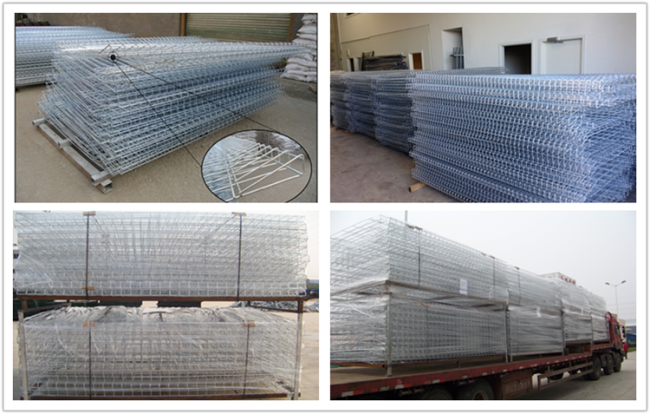

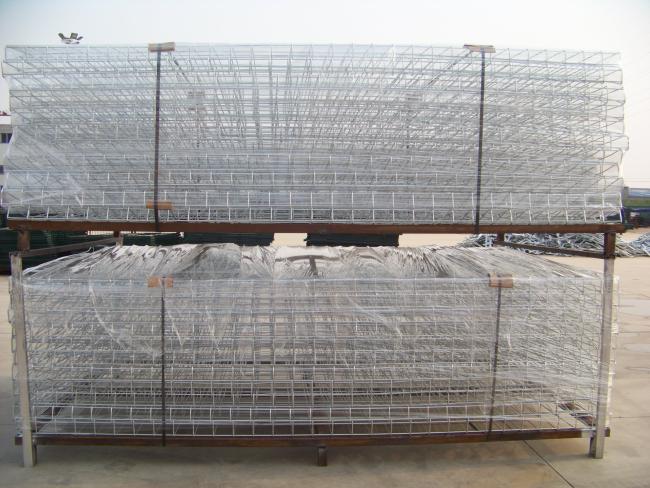

Rolltop fencing packing:
