Hot Dip Galvanized Powder Coated Anti Cut Fencing 358 Building Site Clearvu
Hot Dip Galvanized Powder Coated 358 Anti Climb Building Site Clearvu Fencing

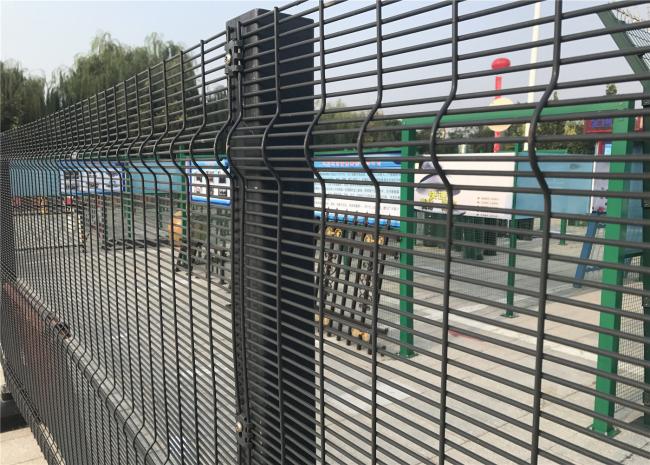

Clearvu fencing description
It is a kind of high-strength and high-security fence. 358 high-security fence means fence panel with 3'' × 0.5'' mesh opening and 8 gauge wire diameter. The mesh opening is so small that people can't put fingers into it and climb it. And the 8 gauge wire is so strong that can't be cut by bolt cutters and wire cutters. 358 high-security fence is also usually used with barbed wire, razor wire, and wall spikes to further enhance security. 358 high-security fences with higher security can be used in prisons, borderline, power plants, and some places that require strong security and privacy. In addition, our products with galvanized or PVC coating surface treatment have good corrosion resistance.
For higher security performance, you can choose the 3D 358 high-security fence and 2D 358 high-security fence.
Material
low carbon steel, iron, and stainless steel.
Surface treatment
Electro-galvanized wire & Electrostatic powder coating.
Hot dipped galvanized wire & Electrostatic powder coating.
Black steel wire & Hot dipped galvanized.
Wire diameter
8 gauge.
Mesh opening
3" × 0.5".
Color
black, silver, green, and so on.
Type
358 high security fence.
2D 358 high security fence.
3D 358 high security fence.
Clearvu fencing specification
| Table 1: 358 High Security Fence Specifications | |||||
| Item | Fence height (m) | Panel size (Height × Width) (mm) |
Fence Post (Height × Size × Thick) (mm) |
Clamp Bar(mm) (Height × Width × Thick) (mm) |
Interior or corner Clamp No. (pcs) |
| HSF-1 | 2.0 | 2007 × 2515 | 2700 × 60 × 60 × 2.5 | 2007 × 60 × 5.00 | 7 or 14 |
| HSF-2 | 2.4 | 2400 × 2515 | 3100 × 60 × 60 × 2.5 | 2400 × 60 × 5.00 | 9 or 18 |
| HSF-3 | 3.0 | 2997 × 2515 | 3800 × 80 × 80 × 2.5 | 2997 × 80 × 6.00 | 11 or 22 |
| HSF-4 | 3.3 | 3302 × 2515 | 4200 × 80 × 80 × 2.5 | 3302 × 80 × 6.00 | 12 or 24 |
| HSF-5 | 3.6 | 3607 × 2515 | 4500 × 100 × 100 × 3.0 | 3607 × 100 × 7.00 | 13 or 26 |
| HSF-6 | 4.2 | 4204 × 2515 | 5200 × 100 × 100 × 4.0 | 4204 × 100 × 8.00 | 15 or 30 |
| HSF-7 | 4.5 | 4496 × 2515 | 5500 × 100 × 100 × 5.0 | 4496 × 100 × 8.00 | 16 or 32 |
| HSF-8 | 5.2 | 5207 × 2515 | 6200 × 120 × 120 × 5.0 | 5207 × 100 × 8.00 | 18 or 36 |
| Table 2: 3D Security Fence Specifications | ||||||||
| Item | Panels | Posts | ||||||
| Fence height | Panel Size Height/Width | Number of Beams | O/A Length | Material and fixing clamps | ||||
| Interior | Interior | |||||||
| m | mm | mm | Material mm | Clamps No. | Material mm | Clamps No. | ||
| 3DSF-1 | 2.0 | 2000 × 2515 | 2 | 2700 | 80 × 60 × 2.0, RHS | 6 | 80 × 80 × 2.5 SHS | 12 |
| 3DSF-2 | 2.4 | 2400 × 2515 | 3 | 3100 | 80 × 60 × 2.0, RHS | 7 | 80 × 80 × 2.5 SHS | 14 |
| 3DSF-3 | 3.0 | 3000 × 2515 | 3 | 3800 | 80 × 80 × 2.5, SHS | 10 | 80 × 80 × 2.5 SHS | 20 |
Clearvu fencing usage
Fence, decoration, protection, and other facilities in industries such as industry, agriculture, municipalities, transportation, etc. It also used in road green belt protection nets.
Clearvu fencing packing
