2000mm Anti Climb Fencing Powder Coated Prison Clear View High Security Anti Cut
2000mm Powder Coated Prison Clear View High Security Anti Cut Fence
Anti cut fence description
Product description:
Wire gauge: 8.
Wire diameter: 4 mm.
Spacing cross wire: 0.5 in. (12.7 mm).
Spacing vertical wire: 3 in. (76.2 mm).
Panel width: 2400 mm.
Panel height: 1800 to 3600 mm.
Tensile strength: 500 - 550 MPa.
Finish: hot-dip galvanized or powder-coated.
Accessories: 40 × 6 mm flat bar clamp, galvanized M8 cup head bolts.
Fencing top: barbed wire or razor wire.
Post: RHS post or H post.
Applications: prison security, airports, electric substations, railway stabling yards, etc.
Features & benefits:
Maximum security for perimeter fencing.
4 mm diameter steel wire is hard to cut with common hand tools.
Finger-proof mesh aperture ensuring anti-climb.
Maintain a clear sight through the horizontal aperture.
Galvanized after welding for best rust resistance.
Anti cut fence specification
|
SPECIFICATION: Installation Height (mm) |
1800, 2100, 2400, 3000 |
| Embedded Post Height (mm) (600mm below the ground level) |
2400, 2700, 3000, 3600 |
| Post Center Distance (mm) | 3000 |
| Distance Between the Horizontal Wires (mm) | 12.7 ± 1.0 |
| 25.0 ± 1.0 | |
| 50.0 ± 1.0 | |
| Distance Between the Vertical Wires (mm) | 76 ± 3.00, 100 ± 3.00 |
| Core Diameter of the Horizontal Galvanized Wire (mm) | ⌀3.5 — ⌀5.6 ± 0.10 |
| Core Diameter of the Vertical Galvanized Wire (mm) | ⌀3.5 — ⌀5.6 ± 0.10 |
| Weld Strength | 80% of parent material |
| Tensile Strength | 500 – 650 MPA |
| Plascoat and Powder Coating | Black, Green, Grey |
Anti cut fence usage
Schools
Industrial and commercial units
Police stations and secure units
MOD
Airports and seaports

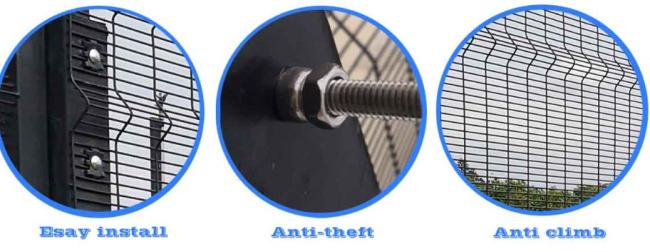

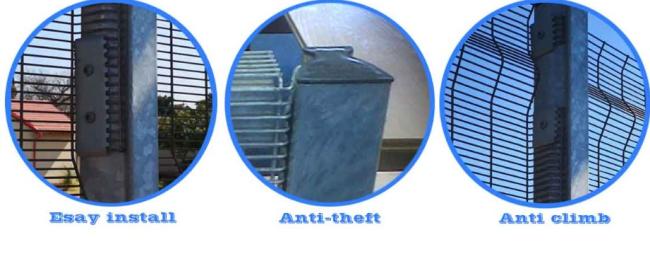

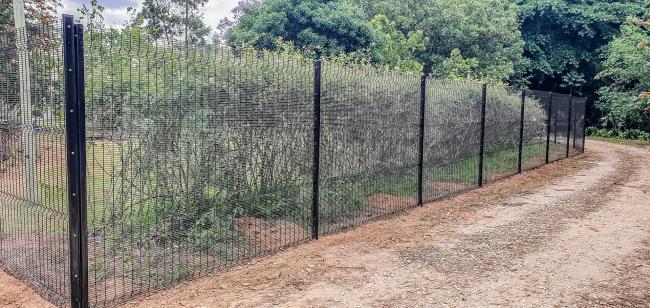

Anti cut fence install
