Visually Attractive Hot Dip Galvanized Anti Climb Fence For Military Sites

Discription of Hot Dip Galvanized Anti Climb Fence

Many property owners think of fencing simply as a way to prevent unlawful entry and to protect their property. But the sad reality is that anti-climb mesh fencing is just as necessary to keep people safe from harm.

There are many reasons why people might try to gain access to potentially dangerous areas on your property and anti-climb fencing can help prevent people from attempting suicide, trying to get that outrageous selfie, or fulfilling youthful exuberance or drunken dares.

The mental health issues underlying risky behaviours around hazardous sites are complex but you, as a property owner, have a responsibility to yourself, your staff, and the general public to do all you can to promote safety on your property.

Failure to take appropriate anti-climb safety measures may lead to Health and Safety fines, litigation, and a lifelong sense of guilt in the event of a tragically preventable accident or death.

But you also don’t want your property to look like a prison so it’s reassuring to know that Protective can supply attractive anti-climb mesh fencing solutions that will keep everyone safe and look great doing it.

Specification

Anti-climb fence panels are made of heavy mesh with a high level of security in width 2515mm and a height of 2007mm to 3302mm. Several panels can be installed on top of each other. This may be achieved with a total height of 6300mm.

358 mesh anti-climb fence panel size:

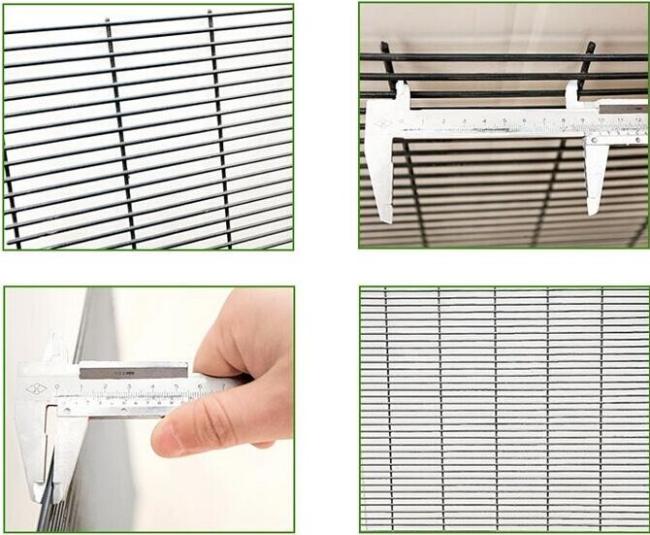

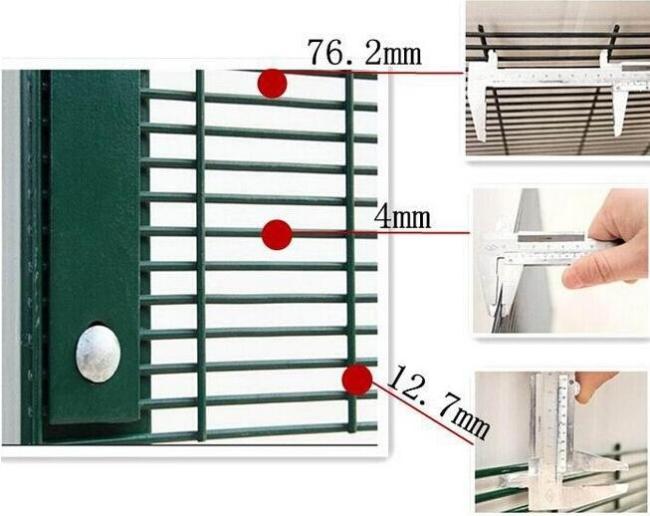

Mesh pattern: 76.2mm (3") × 12.7mm (0.5") resistance welded well at each intersection

Wire diameter: 4mm horizontal Wire and vertical Wire.

Weld strength: range 540-690 N/m2

Surface treatment: panels made from Galvan Wire, PVC powder coating (Min. 100 microns), or PVC powder painting. It provides additional protection and increases the potential life span.

Colors: Green RAL 6005, or Black RAL 9005.

Installation: Overlapped 75mm minimum at each post (shown as the two following pictures below) for securing with slotted clamp bars and M8 diameter bolts.

358 mesh anti-climb fence posts:

- Square Tube 60mm x 60mm x 2mm Hot Dip Galvanised

- Square Tube 75mm x 60mm x 1.6mm Zincalume

- Square Tube 76mm x 76mm x 2mm Hot Dip Galvanised

- Square Tube 76mm x 76mm x 3mm Aluminium

- IPE 76mm x 44mm Aluminium

- IPE 100mm x 44mm Aluminium

- IPE 76mm x 44mm Hot Dip Galvanised

- IPE 100mm x 44mm Hot Dip Galvanised​

Features of Hot Dip Galvanized Anti Climb Fence

Anti-climbing: more small openings, no toe or finger holds.
Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.
High strength welded at each intersection.
Durable: covering Galfan and polymer powder coating ensure long service life.
Mesh fencing is specially configured to provide maximum visibility, primarily used for emergency and electronic detection systems.

Packing and Shipping

Because we are 358 mesh fence factory have lots of experience in production and packing these 358 fence panels in a good conditions

1) Fence panel: 1> in bulk 2> plastic film + metal/wooden pallet

2) Fencepost: plastic bag + metal/wooden pallet (with rainhat installed)
3) Fence accessories: plastic bag + carton box (clips & screws)

Applications of Hot Dip Galvanized Anti Climb Fence

Airports, shipping terminals, and railways

Schools,educational institutes and libraries

Motor racing circuits

Hospitals

Hazardous natural features such as cliffs and waterfalls

Dangerous animal enclosures, zoos, and aquariums

High voltage transformers and dangerous chemical storage areas
