380V 50HZ SIEMENS PLC Carton Box Packing Machine
Tampons Tissue Paper Carton Packing Machine With Servo Motor
Applications:
It is suitable for automatic boxing of napkins, sanitary towels, pads, wet tissues,etc. Our machine has passed CE certification. It has been used by many domestic and international enterprises in such industries as APP,Fine, Nepia, Vinda, Deli, TRUECOLOR, BEIFA, brother, GLAD, etc. Also we can provide personalization design to meet the requirements of different customers. Meanwhile, we can provide resources and technical support to help the customer to build their ideal factory.
Machine Feature
1,High output. The stable speed can reach 80 boxes/minute.
2,Complete functions. The machine is suitable for various applications such as semi-cover/full-cover, or high paper and low box/low paper and high box.
3,Rapid production changing. It only takes 10-20 minutes to change the specifications.
4,Convenient operation. It is easy to control the servo paper feeding and PLC control system.
5,Low cost. The imported glue machine with a nozzle of 0.3mm is adopted and the glue-spread is little.
Application range:
It is suitable for automatic boxing of facial tissues, square tissues, pocket tissues,cotton tissues etc.
Main performances and structure features:
- Packing forms such as automatic feeding, box opening, boxing, batch No. printing, glue spreading, box sealing, etc. are adopted. Featured by compact and reasonable structure, simple operation and adjustment.
- Servo/step motor, touch screen, PLC control system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly.
- The automatic material arranging and conveying mechanism is adopted to facilitate linked production with automatic production line, which can greatly reduce labor cost.
- The photoelectric eye automatic detection tracking system is adopted. No boxing is made if the bag is empty, so as to save packing materials to the utmost extent.
- With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.
- Change of specifications does not need change of molds, but can be realized through adjustment.
- Automatic stopping is available when the material boxing is not in place, and the main driving motor overload protection device is used, so that the machine is safer and more reliable.
- According to customer requirements, the upturning type safety protective cover is adopted, which is featured by simple operation and beautiful appearance.
Main technical parameters
| Items | Technical parameters |
| Packing dimension (mm) | Max:L240mm×W120mm×H100mm |
| Packing dimension (mm) | Min:L110mm×W110mm×H30mm |
| Paper requirement | 300-400G/M3 |
| packing speed(bags/min) | 85pcs/min |
| Glue machine power supply(KW) | 2.32 |
| Packing machine power supply(KW) | 2.74 |
| Totally power supply(KW) | 5.1 |
| Electric type | 3phase 4wire |
| Machine noise(DB) | ≦80 |
| Weight (KG) | 3500 |
| Outline dimension (mm) | 3513×3023×1650 |
| Air supply(MPA) | 0.5-0.8 |
Machine Configuration
| PLC | Panasonic |
| Touch screen | Omron |
| Frequency converter 1.5KW | Panasonic |
| Frequency converter 0.4KW | Panasonic |
| Servo 0.75KW | Delta |
| Servo 0.75KW | Delta |
| Encode 600 wire | Autonics |
| Lower pressure | Schneider |
Application:

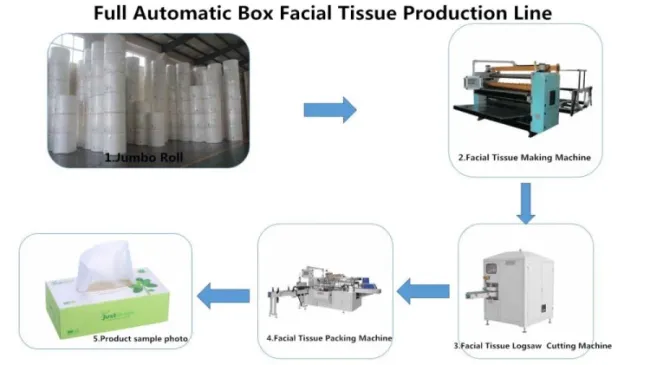

Tissue Packing Machine is suitable for packing facial tissue paper and other related similar content compact with automatic leaflet folding, box opening and loading, then sealing the box.
It adopts PLC control, photoelectricity supervision to coordinate with every parts. Automatic stop and trouble display when machine running exceptional in order to solving troubles in time. This machine can be used separately, and also can connect with facial tissue log saw cutting machine on line.
Features:
1.The stable speed can be 120 boxes/min.
2.Using famous America Nordson glue machine.
3.It only takes 5-10 mins to change to different products.
4.Using two sevo motors in feeding and pushing area.
5. Rejection automatically if no products, nonstandard height or lack of leaflet.
6. Stop automatically if incorrect position of products into carton.
7. Stop automatically if no cartons or out of leaflets continuous.
8. Protecting automatically for overloading.
9. Automatically displaying device for speed and finished products counting.
Performance technical parameters and Electrical List:
| Item/model | SYM-100 | |
| Paper quality of carton | 300-400g/m3 | |
| Maximum packing specification | L(100-240)mm×W(100-120)mm×H(20-90)mm | |
| Packing speed | 50-80 boxes/minute | |
| Hot melt machine power | 2.32KW | |
| Motor power | 2.74KW | |
| Total power | 5.1KW | |
| Power supply type | 3phase 4wire 380V 50Hz | |
| Machine noise | ≤80dB | |
| Air supply | 0.5-0.8 Mpa | |
| Air consumption | 120-160L/min | |
| Outline dimensions | Main machine | L3250×W1650×H1800mm |
| Conveying mechanism | L2000×W660×H1200mm | |
| Machine weight | 2000Kg | |
| Item | Name | Brand | Country |
| 1 | Touch screen | Omron | Japan |
| 2 | PLC | Panasonic | Japan |
| 3 | Encoder | Omron | Japan |
| 4 | Combination switch | Schneider | French |
| 5 | Frequency | Panasonic | Japan |
| 6 | photoelectric switch | SICK | Germany |
| 7 | proximity switch | Omron | Japan |
| 8 | Intermediate Relay | Omron | Japan |
| 9 | Breaker | Schneider | French |
| 10 | Button switch | Schneider | French |
| 11 | AC contactor | Schneider | French |
| 12 | Emergency stop switch | Schneider | French |
| 13 | Switch power supply | Delta | Taiwan |
| 14 | Air switch | Schneider | French |
| 15 | Magnetic valve | JELPC | Germany |
| 16 | Vacuum generator | JELPC | Germany |
| 17 | Vacuum cup | AIRBEST | Swiss |
| 18 | Decelerating motors | HANXING | China |
| 19 | Servo Motor | Delta | Taiwan |
| 20 | Conveyor motor | DELI | China |
| 21 | Timing belt | SONTIAN | Japan |
| 22 | Timing belt | EHRE | Germany |
| 23 | Glue machine | Nordson | America |
(This list is for reference only,in the actual production there may be some difference with this list)

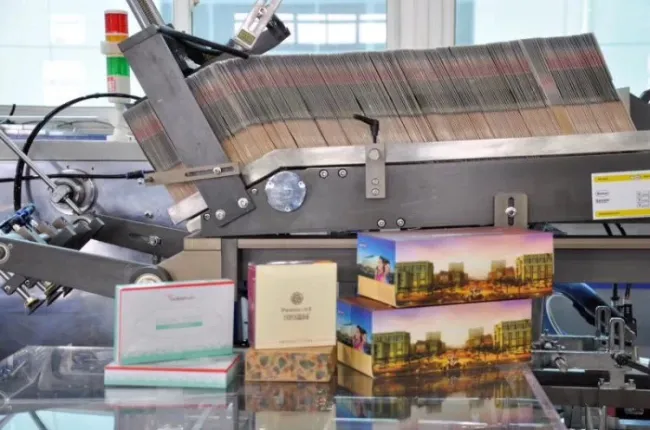

Tissue Box Packing Machine Sample Packed:

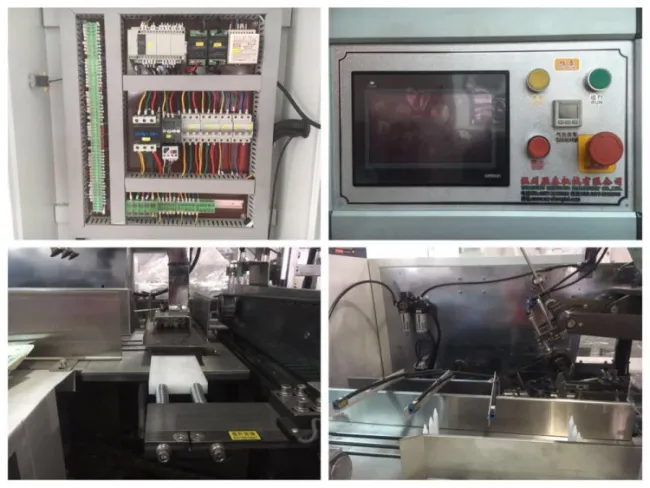

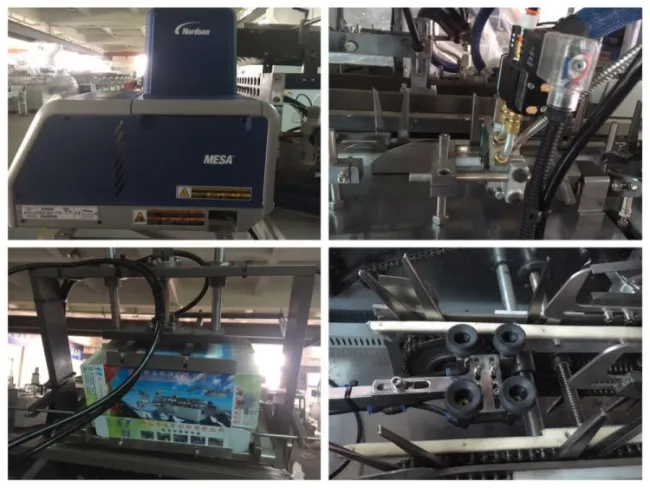

Tissue Packing Machine Machine Details:

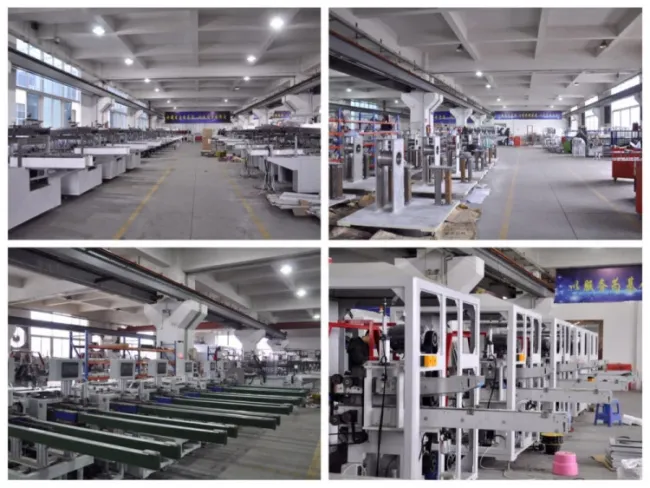

Our workshop:
