Lico620 Liquid Colorimeter For Up To Five Color Scales

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 3-7 days

Brand: HiYi

Product Description

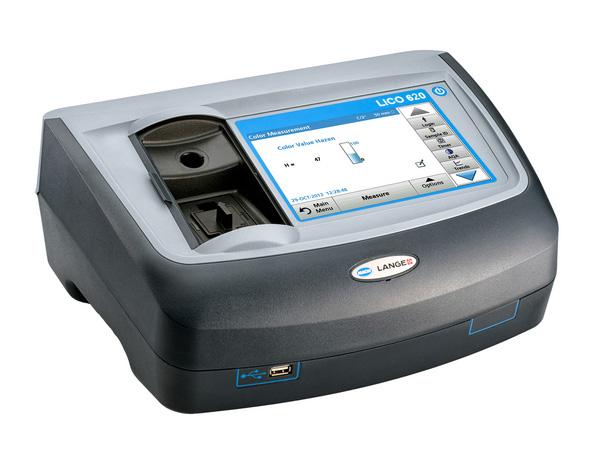

Lico620 Colorimeter

OVERVIEW

Colorimeter for color measurements of clear, transparent liquids with reference beam technology. Measures up to five ISO/ASTM color scales.

Hazen/APHA/PtCo-color, Gardner-color, Iodine-color, Saybold-color, ASTM D 1500

FEATURES

Fast and accurate colorimetric measurement
Built-in all important color scale
Ethernet connection
Easy operation

APPLICATION

The LICO620 benchtop colorimetric measurement/tester is suitable for colorimetric needs in the chemical industry, food and beverage, petrochemical, and pharmaceutical industries.

SPECIFICATION

Beam Height	10
Color Scales	DIN 6162 iodine; ISO 6271 Hazen (Pt/Co, APHA, ASTM D1209, D5386); ISO 4630 Gardner (ASTM D1544, D6045); ASTM D 156 Saybolt; ASTM D 1500 mineral oil
Color Scales	5
Cuvette Compatibility 2	10 mm rectangular sample cell
Cuvette Compatibility 3	50 mm rectangular sample cell
Dimensions (H x W x D)	151 mm x 350 mm x 255 mm
Display	TFT WVGA color graphic touch-screen
Display Resolution	480 - 800 pixel
Display Size	17.8 cm (7 in.)
Display Type	Color graphic
Interface	2x USB Typ A, 1x USB Typ B, 1x Ethernet
Max. operating humidity	80
Memory	400 color readings
Model	Lico 620
Operating Temperature Range	10 - 40 °C
Optical Path Length	10 - 50 mm
Optical System	0° / 180° rectilinear
Photometric Accuracy	0.005 Abs at 0 - 0.5 Abs
Photometric Accuracy 2	1 % at 0.5 - 2.0 Abs
Photometric Linearity	< 0.5 % to 2 Abs with neutral glass at 546 nm
Photometric Linearity 2	≤ 1 % with neutral glass at 546 nm
Power Requirements	110 V - 240 V
Power Requirements (Hz)	50/60 Hz
Power Requirements (Voltage)	100 - 240 VAC
Reproducibility	±0.2 % transmission
Sample Cell Compatibility	11 mm round sample cell
Source Lamp	Tungsten halogen lamp
Standard Illuminant	C 2°
Standard Observer	2°
Storage Conditions	-40 °C - 60 °C
Stray radiant power ratio	< 0.1 %T at 340 nm with NaNO2
User Interface	Touch-screen, ext. USB keyboard
User Interface Languages	English, French, German, Italian, Spanish, Czech, Dutch, Greek, Polish, Slovene, Slovake, Russian, Turkish, Chinese, Japanese, Korean
Wavelength Accuracy	±1.5 nm (wavelength range 340 - 900 nm)
Wavelength Calibration	Automatic
Wavelength Range	380 nm - 720 nm used for colorimetric calculations
Wavelength Reproducibility	≤ 0.1
Weight	4.2 kg
What's included?	Instrument, power supply, printed basic user manual, CD with full user manual, 10 mm cell adapter, dust cover
