HR-60Z / HR-90Z High Shear Homogenizer Digital Display Mode Pilot For Food Industry
The pilot scale high-shear dispersing emulsifier is designed for pilot-scale, simulated production and small batch production in factories. The working head has a high-speed rotating rotor and a precise stator working cavity to generate strong hydraulic shear by high linear speed. Centrifugal extrusion, high-speed cutting and collision make the materials fully dispersed, emulsified, homogenized, crushed and mixed, and finally stable and qualified products are obtained.

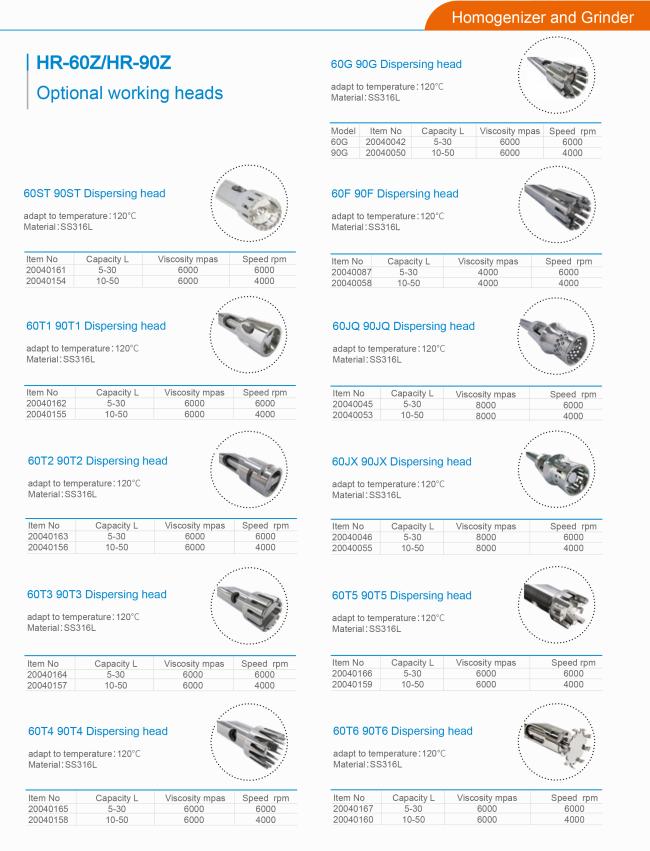

● A variety of working heads are available to meet different needs;
● Rotation speed uses frequency conversion speed regulation, digital display mode, the lowest can reach 50rpm;
● Electric hydraulic lifting mode, simple operation and convenient use;
● The high-speed variable frequency motor realizes the function of variable frequency start protection, which meets the requirements of continuous work in the experiment;
● The instrument is equipped with a red mushroom head emergency stop button；
● When the machine is in a fault state, use this button to cut off the power supply, so that the equipment will stop running immediately to protect the safety of people and equipment;
Wide range of applications: different grades of fine chemicals, petrochemicals, pesticides and fertilizers, biomedicine, medical chemicals, food industry, etc.
|
Model
|
HR-60Z
|
HR-90Z
|
|
Item No
|
1004012001
|
1004013001
|
|
Voltage
|
220V/50Hz
|
220V/50Hz
|
|
Motor Power/Total Power
|
0.75/1
|
1.5/2
|
|
Capacity(ml)
|
5-30
|
10-50
|
|
Viscosity(mpas)
|
8000
|
8000
|
|
Speed Range(rpm)
|
0-6000
|
0-3200
|
|
Speed Mode
|
Digital
|
Digital
|
|
Speed Control
|
Speed regulation
|
Speed regulation
|
|
Sample touch material
|
SS316L
|
SS316L
|
|
Bearing working head
|
PTFE
|
PTFE
|
|
Standard working head
|
60G
|
90G
|
|
Working Support Material
|
316L
|
316L
|
|
Lifting mode
|
Electro-hydraulic
|
Electro-hydraulic
|
|
Lifting distance(mm)
|
350
|
350
|
|
Packing material
|
Wooden packing
|
Wooden packing
|
|

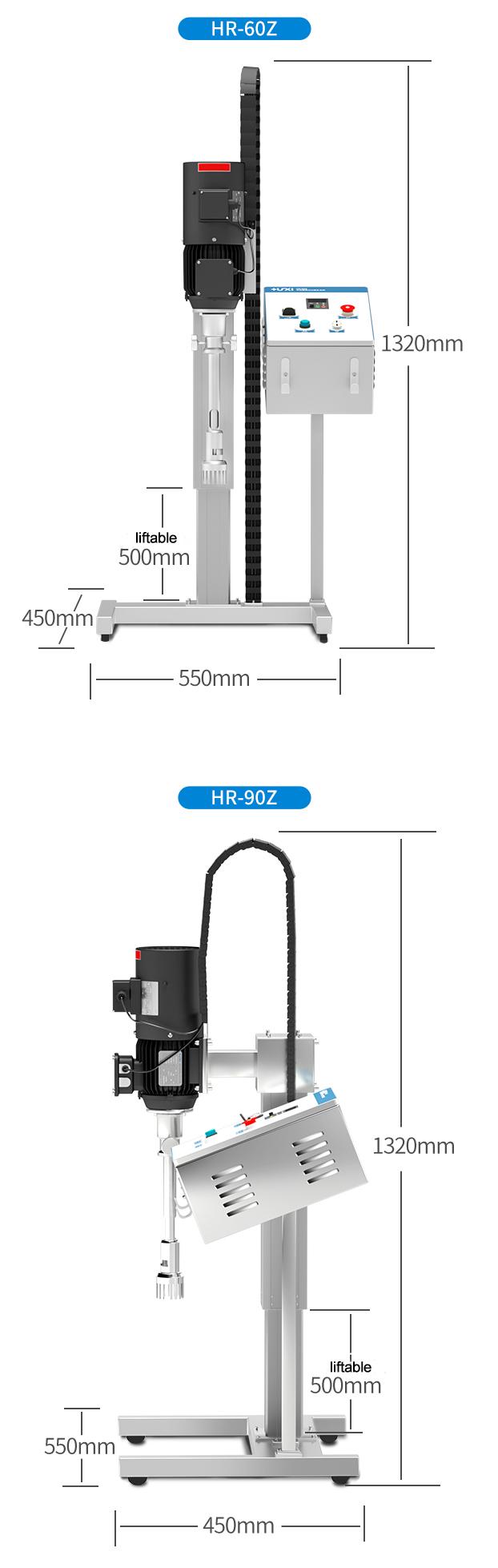

Exterior Dimension(mm)
|
700*700*1050
|
800*800*1100
|
|
Packing Dimension(mm)
|
800*800*1250
|
900*900*1280
|
