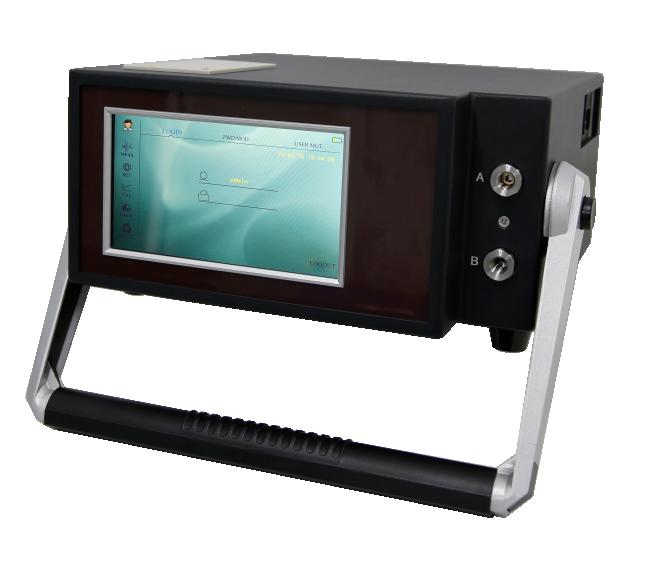

Zetron OPC-P2 Portable Oil Particle Counter
OPC-P2 Portable Oil Particle Counter
OPC-P2 Portable Oil Particle Counter adopts Laser Extinction Technology, is designed to measure the particles' size and quantity in oil liquid. It is Suitable for tests of pollution degree of solid particles in hydraulic oil, lubricating oil, fire resistant oil, insulating oil, turbine oil, organic liquid and polymer solution, etc. So our instrument can be used in aviation, spaceflight, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and many other fields.4.1 Power Choice: External power or Battery.
So our instrument can be used in aviation, spaceflight, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and many other fields.4.1 Power Choice: External power or Battery.
|
Light source |
Semiconductor laser |
|
Particle size range |
0.8-600μm (depending on different sensors) |
|
Sensitivity |
0.1μm |
|
Customized detection channels |
8+8 channels, arbitrary setting of particle size |
|
Sampling volume |
0.2-1000ml, interval 0.1mL |
|
Sampling accuracy |
better than ± 1% |
|
Sampling speed |
5-80mL/min |
|
Cleaning speed |
5-80mL/min |
|
Cleaning volume |
can be set between 0~90mL |
|
Counting accuracy |
<±5% |
|
Resolution |
≤ 10% |
|
Repeatability |
RSD<2% |
|
Limit overlap error |
12000-40000 grains/mL |
|
Offline detection viscosity |
≤100cSt (viscosity is too large optional air pressure chamber) |
|
Pressure range |
low pressure 0-0.6Mpa, high pressure up to 42Mpa (optional pressure reducing valve) |
|
On-line detection interval time |
arbitrary settings |
|
Testing sample temperature |
0 ºC~ 80ºC |
|
Working temperature |
-20ºC~60 |
|
Storage temperature |
-30ºC~80 |
|
Screen size |
7 inch |
|
Power supply |
AC100-240V, 50/60Hz |
|
Battery capacity |
5200mAh |
|
Battery running time |
6-8 hours |
|
Overall Dimension |
310×305×135mm |
|
Instrument weight |
7.5kg |
