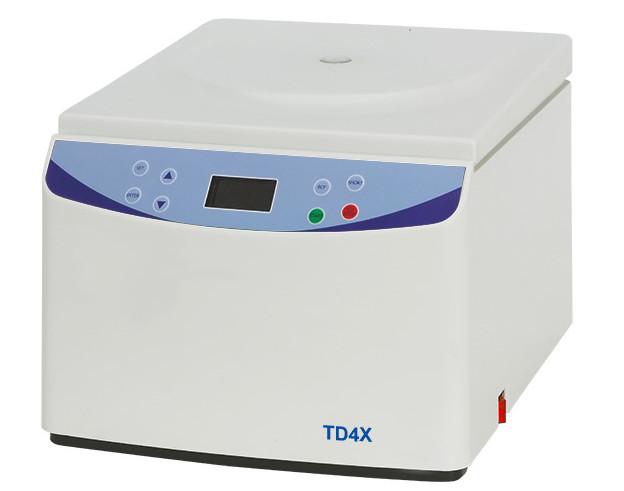

TD4X Lymphocyte Cleaning Blood Washing Centrifuge , Cell Washing Centrifuge
TD4X Lymphocyte Cleaning Blood Washing Centrifuge For Red Blood Cell Washing/SERO Rotor
TD4X Lymphocyte Cleaning Blood Washing Centrifuge For Red Blood Cell Washing/SERO Rotor
The TD4X blood washing centrifuge is dedicated to red blood cell washing/SERO rotor, and the special lymphocyte washing/HLA rotor is very easy to take and install. Microcomputer control, DC brushless motor drive, SERO, HLA rotor centrifugal procedures have been standardized. Using food grade silicone rubber integral sealing ring, the centrifuge has obtained the US FDA certification.
1. Microcomputer control, DC brushless motor drive, stable operation, low noise and high speed precision.
2. Using food grade silicone rubber integral sealing ring, the centrifuge has obtained the US FDA certification.
| Model | TD4X | |
| Rotor type |
Rotor for lymphocyte cleaning
|
Rotor for lymphocyte cleaning |
| Rotor capacity | (0.25～1ml)×12 | 12×7ml |
| Maximum relative centrifugal force | 2000×g | 1000×g |
| way to control | Microcomputer control, DC brushless motor drive | |
| Timing method | Electronic timing (programmed) | |
| Machine noise | <65DB(A) | |
| Timing range | 0-99min | |
| power supply | AC220V 50Hz 5A | |
| Total power | 150W | |
| Dimensions | 330×420×280(L×W×H) | |
| Fixed size | 430×520×390(L×W×H) | |
| Weight | 14kg | |

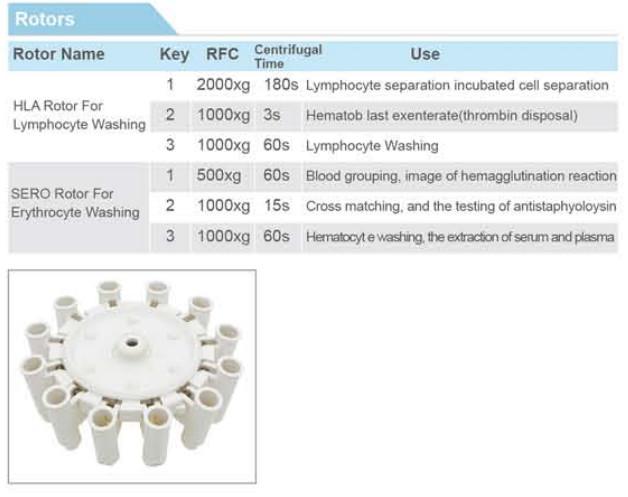

| Rotor name | Button | Centrifugal force | Centrifuge time | Use |
| Rotor /HLA for lymphocyte cleaning | 1 | 2000 × g | 180S | Lymphocyte separation, cultured cell separation |
| 2 | 1000 × g | 3S | Platelet removal (thrombin treatment) | |
| 3 | 1000 × g | 60S | Lymphocyte cleaning | |
| Rotor for washing red blood cells /SERO | 1 | 500 × g | 60S | Blood measurement, hemagglutination reaction observation |
| 2 | 1000 × g | 15S | Cross-fit test, anti-globulin test | |
| 3 | 1000 × g | 60S | Serum cleaning, serum and plasma extraction |
