Marine Salvage Floating Pontoon Pneumatic Rubber Airbag For Lifting
Marine Salvage Floating Pontoon Pneumatic Rubber Airbag For Lifting

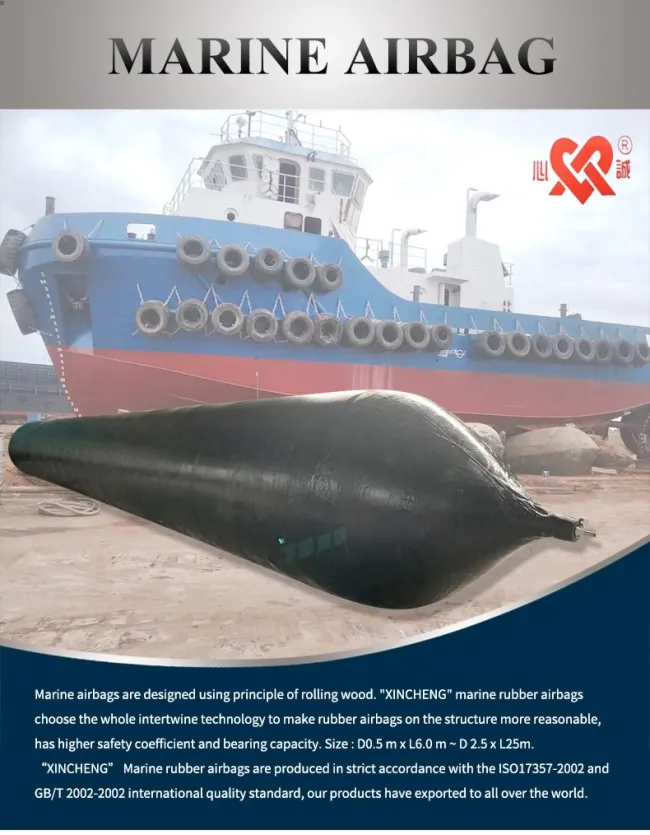

Marine Ship airbags are also known as air balloon, inflatable bags, roller bags, air lifting bags, salvage bags. Standard air bag size range is 0.8m to 2.0m diameter, with lengths up to 18.0m 'effective length' and even more.
usuage:

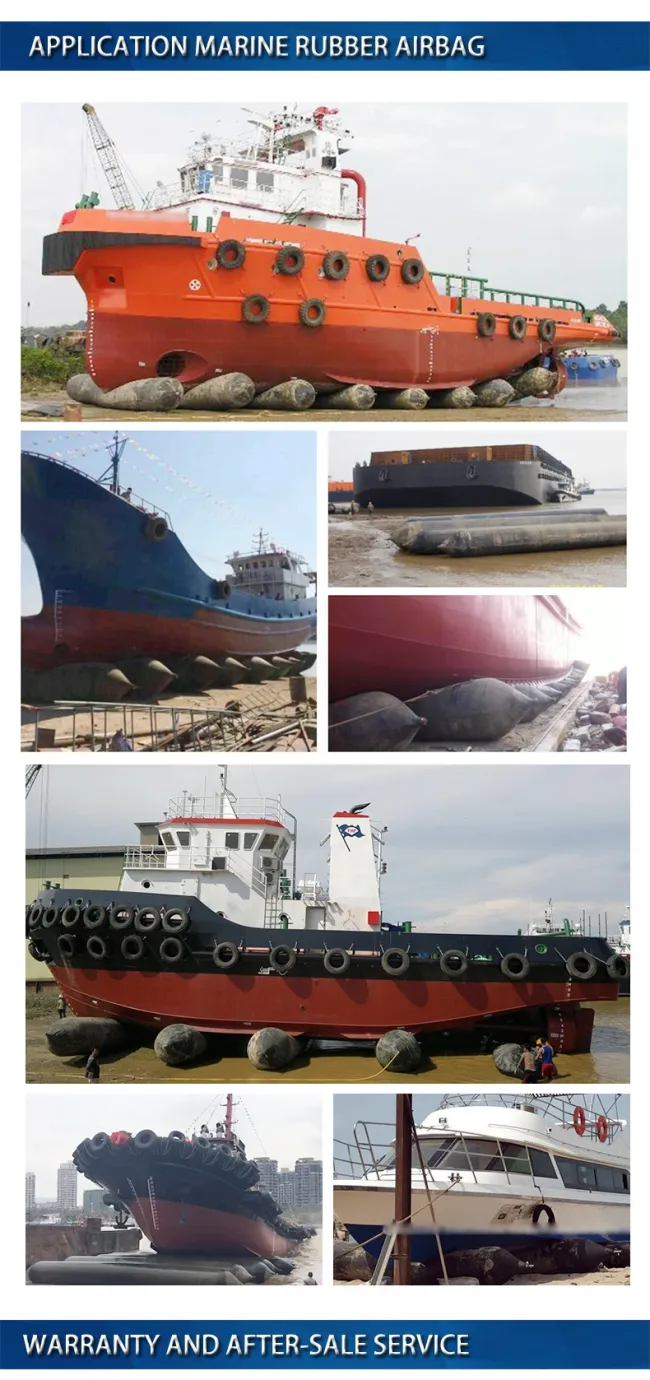

1. Shipwreck salvage
2. Floating bridge and dock construction
3. Rescue and remove of wrecked ship
4. Can be used as pontoons for supporting docks and other floating structure.
Performances:
1. We adopt the most advanced winding process to increase the bearing capacity and moment resistant capacity of airbags.
2. Compared with traditional launching track, the advantages of airbags is more flexibility. They are characterized by high resistance, high gas tightness, ageing resistance, and corrosion resistance.
3. Easy to install and dismantle on the wharf and anchor mast.
4. Long service lifespan.
Product Description
SPECIFICATION OF MARINE AIRBAG
| Some normal sizes of our marine airbags, other sizes are also available | |||
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |
special attention when use airbags
1) Strictly control the use of pressure
2) Surface contact with the air bag cannot have sharply pointed a blur, prevent prick the airbag
3) Try to avoid air bag length direction of distortion
4) Long time not to use or repaired airbag, pressure test is required before using again; Often use airbags,test once a year.
5) Drag the airbag on the ground balloon is prohibited
Our ship launching airbags has a warranty of 2 years after delivery. During warranty period, we are responsible to repair or
replace the airbags that can not be repaired in case the defect is of quality.
After-sale Service: we would like to provide the clients with free repair material: repair rubber, repair machine and heating
plate if they need.

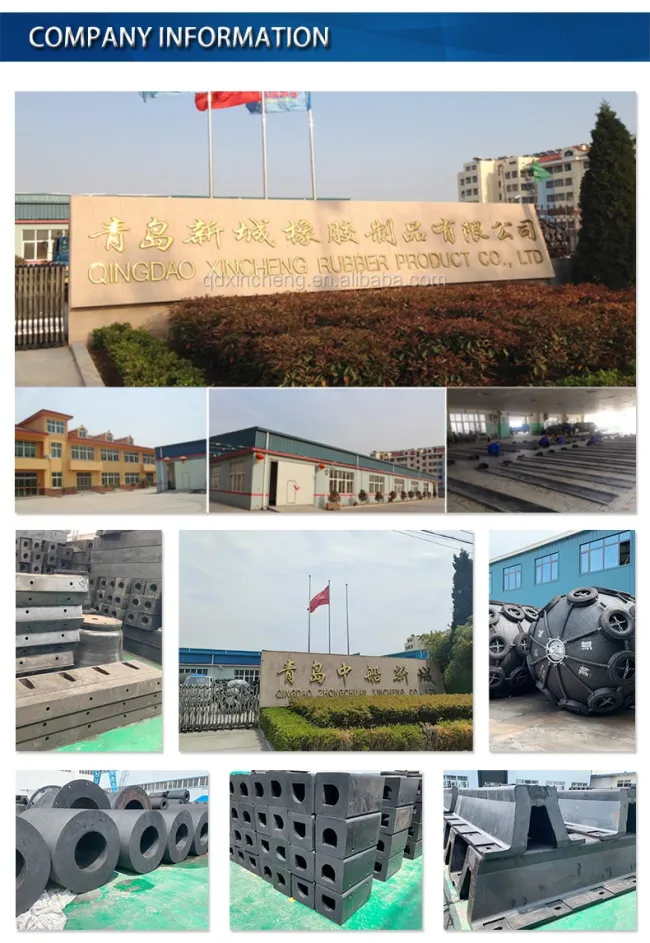

Qingdao Xincheng Rubber Products Co.,ltd was founded in 1986, mainly produces pneumatic rubber fenders, marine rubber
airbags, ship launching with airbags applications, foam filled fenders and other rubber fenders, which as the leading enterprise
has passed CCS , ISO9001:2008, SGS, BV certificates. We have established long time cooperation with many clients, from
Southeast Asia, Middle East, South America and EU countries and many other countries throughout the world.
