100L 55KW Stainless Steel Sand Mill Machine For Water Based Paints Inks Food Addictives
100L 55KW Stainless Steel Sand Mill Machine For Water Based Paints Inks Food Addictives Nut Jam
Sand Mill Machine can produce continuously, the working principle is the power delivered form high-speed rotor to milling medium and liquid material, through mutual colliding and laminating, ultrafine result can be achieved.
For water based paint, ink, food addictives, nut jam,chocolate, peanut butter, the customers usually prefer to use stainless steel material for the chamber and dispersing system. 304 stainless steel is commonly used,316L are used in food healthy industry.
The Technical Data of Sand Mill Machine:
| No | main parameters | SP100 | Note |
| 1 | Non Explosion-proof motor kW | 55kW (Non Ex) | |
| 2 |
Effective volume of grinding chamber (L) |
100 | |
| 3 | Water pressure (MPa) | 0.3 | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | Advise offer the Cooling water less 10°C |
| 5 | Dimensions:L*W*H (mm) | 2100*980*2140 | |
| 6 | Weight (kg) | 2000 |
The Configuration instructions of Sand Mill Machine:
1. Outer chamber materials: 304 stainless steel
2 Inner Chamber materials: 304 stainless steel or you need

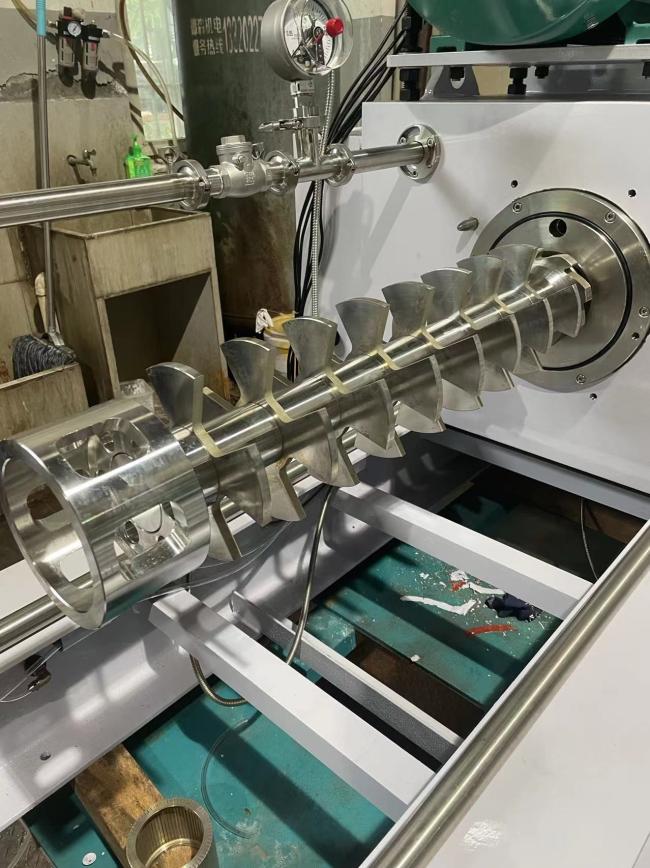

3. Dispersing shaft: 40Cr with hard chromium plating
4. Dispersing disk: 304 stainless steel, and the shapes may be changeable according to different fields.
5. Feeding and discharging end covers on the cylinder: 304 stainless steel
6. Turbine centrifugal separator: 304 stainless steel
7. Feedin pump: pneumatic diaphram pump, gear pump, screw pump according to different viscosity
8. Mechanical seal: double end mechanical seal with two patented technologies.
9. Discharge: static discharge, and easy to install and disassemble
10.screen ring: 304 stainless steel, gaps are calculated after contract are signed according to special fineness requirement.
Has Long history and plentiful experiences with 28 years
Master the core technology of dispersing and grinding
With imported four –axis Haas machining center
With ISO9001 certification and more than 11 patents of sand mill
The packing and delivery :firstly anti-abrasion film and packed in wooden boxes) ,then FCL or LCL container by Seashipping
FAQ:
Q1: Are you a trading company or manufacturer?
A1: We are the manufacturer.
Q2: Do you have own R&D team?
A2: Yes, we have 12 engineers, and our products could be customized for your requirements.
Q3: How about the quality?
A3: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.
Q4: How is the payment?
A4: Firstly paid the deposit, then paid the balanced before shipping.
Q5: How is the package and delivery?
A5: Normally are the wooden boxes, and FCL or LCL container for sea shipping.
If need more detailed and price, please contact us and also warmly welcome to visit us!
