50L Energy-saving Large Flow Wet Grinding Sand Mill Machine With Disk Type

SP series horizontal bead / sand mill is a model with great effeciency and good to save energy,disk type to grind , usually can reach to 800nm---25um according to different particle slurrys.The wet grinding sand mill can  be widely used in paint, coat, inks, food addictives, dyestuff, pesticides, baterry materials, ceramics powders, etc.

Basic information

1.  Electircs: 380V/220V/440V  50HZ/60HZ

2. Water pressure: 0.3(Mpa)

Specifications

Technical paratermeters:

1.slurry pump:    Pneumatic diaphragm pump, gear pump, screw pump

2.inner chamber: silicon carbide ceramics, sus 304 stainless steel, polyurethane, wear-resistant steel

3.outter chamber:  SUS 304 stainless steel, carbon steel with painting

4.dispersing disks: SUS 304 stainless steel, polyurethane, wear-resistant steel,ceramincs

5.Electrical appliance: standard, explosion proof

6.control type: troditional buttom type, PLC touching screen

Main advantages:

1.  steady performance with very low failure rate

2.  great production efficiency( basicly 15% higher around) compared with common disk sand/ bead mills

3.  lower temperature and less noise, more comfortable

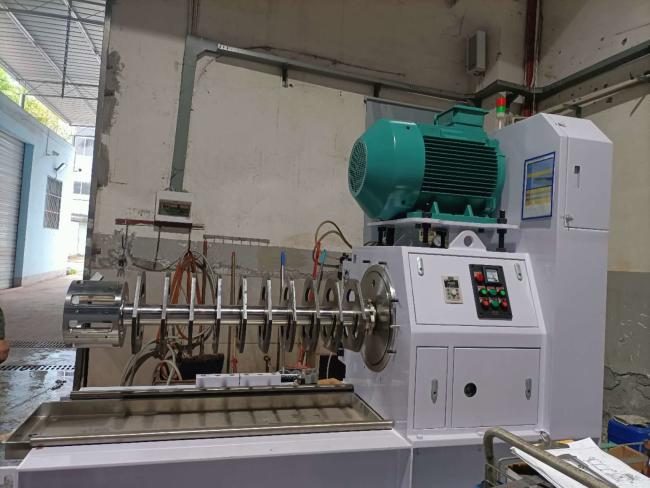

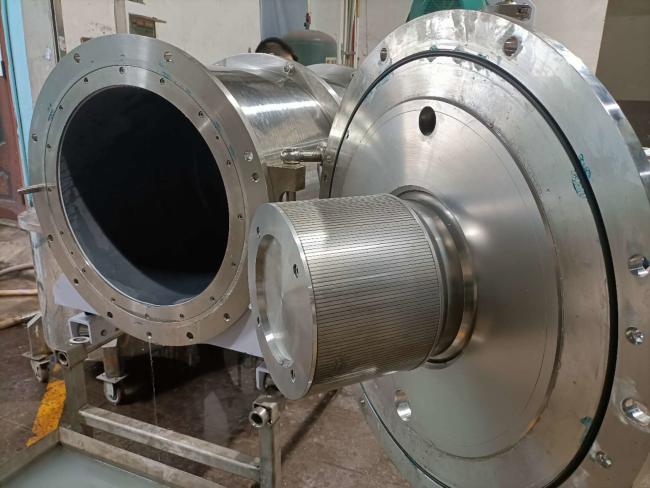

Details of sand mill of SP model

Packing and  transportation:

1. wooden case or  as your requirement

2. transportation: by sea  or as your requirement
