100 / 250 Liter Grinding Horizontal Bead Mill With Screw /Gear / Diaphragm Pump
Product Description:
The Bead Mill Machine is a versatile grinding mill machine designed for grinding materials in various fields, like paper-making, chemical fiber, titanium dioxide powder, painting, coating, inks, anod and cathode battery materials, minerals and non-minerals,etc
While we are experienced in grinding materials in paper making, like thermal paper,decorating paper, etc. We recommend different model for customers according to different requirements and segmentation.
The bead mill machines are produced with volumn from lab 0.5 liter to batch 250 liter with different series, like SP, AP, HZ PLUS model. Each model has its key advantage. This grinding mill machine is reliable and easy to use, allowing for efficient grinding,long-lasting performance,easy to operate.
Features:
- Chamber Material: (out chamber)Stainless Steel,(inner chamber) stainless steel or Silicon carbide ceramanics(no contaimination),
- Dispersing and grinding system: SP/AP model: static discharge , HZ PLUS model: dynamic discharge, material: SS 304 coated with PU(no contaimination)
- Grinding Mode: Batch Grinding By Series Or Single
- Weight: 3000---3200 KG for 250 liter,2000---2200KG for 100 liter
- Grinding Chamber: 250 liter/ 100 liter
- Frenquency Converter: choose according to requirement
- Feeding Pump: Diaphragm pump, gear pump, screw pump
- Keywords: grinding mill machine, bead grinding mill, grinding sand mill, horizontal grinding machines
- Key advantages: high quality; competitive price, high efficiency,lower temperature,customization
Technical Parameters:
| Parameter | Value |
|---|---|
| Product Name | Horizontal Sand Mill Machine |
| Grinding Media | Ceramic Grinding Beads (95% ZrO2 balls) |
| Grinding media ratio | 65-75% of net chamber |
| Grinding System Material | Stainless Steel or PU, dics or pins, or discs and pins compound structure |
| Cooling System | Water Cooling For Chamber And Mechanical Seal |
| Protection System | Overload Protection, Over-temperature Protection, Over-pressure Protection,etc |
| Control System | Push Button Control( standard specification)/ PLC touching control( higher level,optional) |
| Mechanical Seal | Double end integrated mechical seal with self-owned screw cooling system |
| Voltage | 380V (Standard), others optional according to customer's condition |
| Grinding Net Chamber | 250 Liter, 100 Liter or others according to customers requirement |
| Discharge manner | Static/ dynamic screen ring/ slotted pipie with gaps |
| Feeding pump | pneumatic pump/ gear pump |
| Horizontal Bead Milling Machine | Yes |

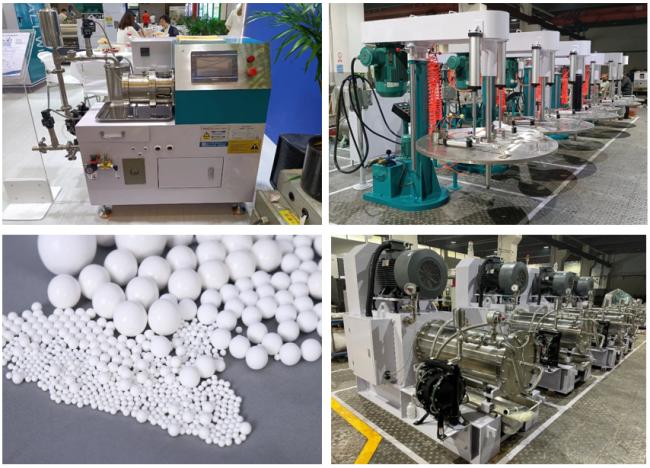

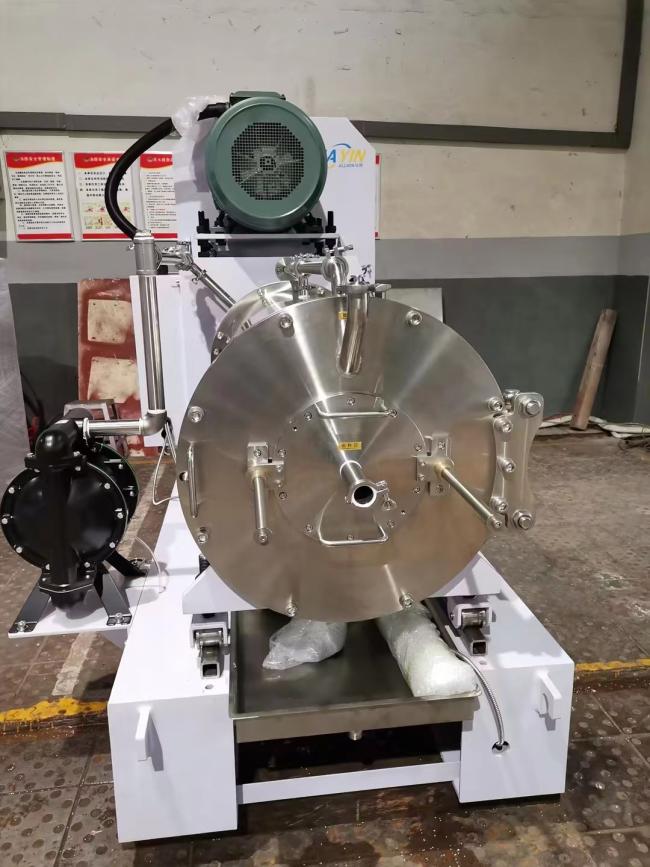

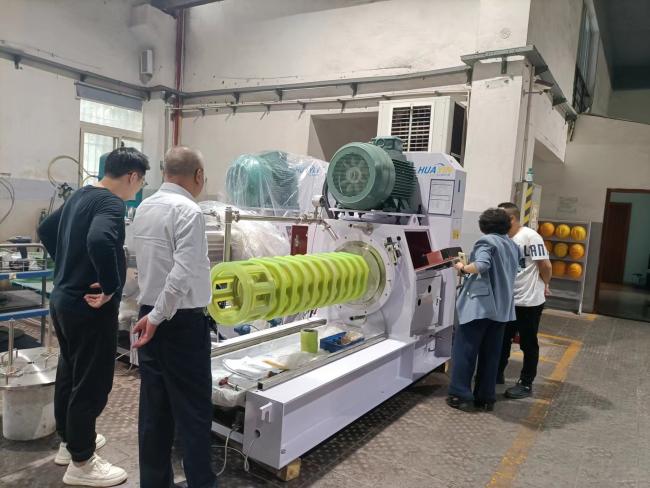

Pictures of Bead Mills:
