10um Paint Mill Grinding Machine SIC Inner Chamber Horizontal Bead Mill

Technical and structural characteristics:

1. The structure is compact and stable: the motor is placed on the upper part, the grinding cylinder is placed on the lower part, and the total height of the equipment is low. More than 20L large model sander with cylinder slide rail for easy maintenance.
2. Double mechanical seal: It has 2 patented technologies, with forced coolant, sealing ring resistant to 1600 kinds of solvents, coolant is compatible with materials, no pollutants, reliable operation.
3. Discharge separation system :Large flow, nonclogging: dynamic hollow rotor-super large area slot cylinder separator uses dynamic centrifugal force separation principle.Use of extremely small grinding beads ( 0.3 to 3 mm).No export blockage occurs under high flow conditions. Good heat dissipation, narrowest particle size distribution.
4. Grinding inner cylinder: It has two patented technologies: cylinder cooling and disassembly. The cylinder volume is from 0.6-300L. The materials are stainless steel, alloy steel, ceramic, hard alloy, polyurethane, etc.

Grinding process: Single Cycle or series.

Application area:  Paint & Coating,Pigments, dyes,  inks, food, chocolate, biologics and cell breaks, cosmetics, non-metallic ores and ceramics.

Packing : Wooden boxes

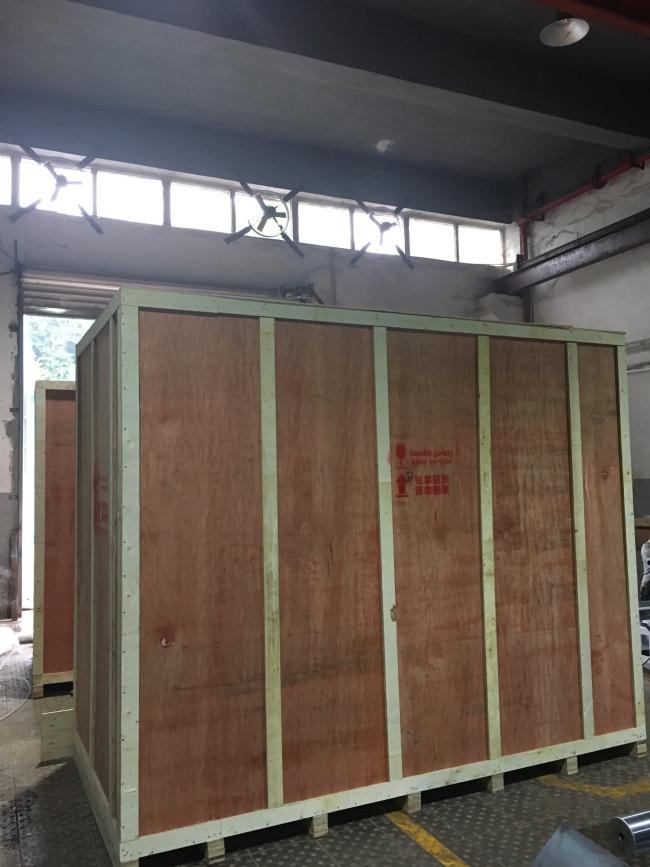

Packing detailed pics:
