22kW Inks High Speed Disperser 1000kg Pesticide SC High Speed Agitator
Stable Safety 22kW Hydraulic Lifting High Speed Dispersing Machine For Paints Inks Pesticide SC Pigments
This Dispersing machine is widely used in paints, inks pigments pesticide and chemical liquid for wet dispersion.It's more stable and safety with hydraulic lifting, easy operation and low maintenance.
The Main characteristics:
1.Allwin’s proprietary technologies: Thress securities for vertical column with hydraulic lifting:No oil leakage, no ceiling-hitting and rotary 360°for machine frame.
2.40Cr hard chrome-plated.
3.Converter built-in Electrical box, not explosion-proof far away from the scene, with explosion-proof motor and explosion-proof operation column
4.Color:White
The Main parameter:
|
Parameter/model |
JF22 | ||
| Main motor:380V,50HZ | kw | 22 | |
| Diameter of impeller | mm | 330 | |
| Rotary speed | R/min | 0-1500 | |
| centre-to-centre distance | mm | 935 | |
| Lifting travel | mm | 1100 | |
| Pump motor | kw | 0.75 | |
| Total height | mm | 2000 | |
| Rotary angle of main frame | 360° | ||
|
Overall dimension |
A | mm | 1820 |
| B(width) | mm | 650 | |
| L | mm | 935 | |
| H1 | mm | 2000 | |
| h1 | mm | 300 | |

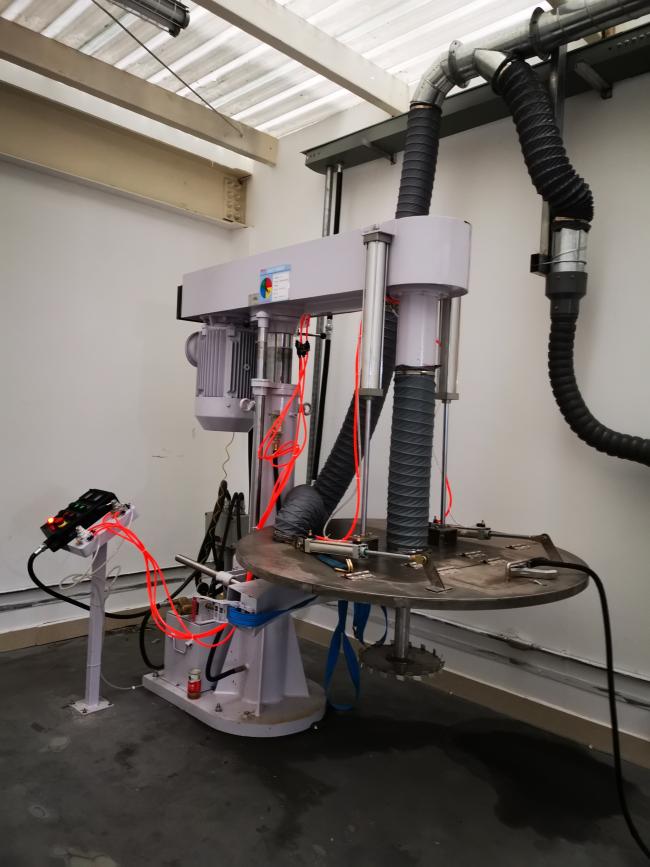

The Customer Production show
The Application filed: Paint and Coating, Pigment and dyestuffs, Printing inks/ Digital inkjet ink, Gravure inks, Medicine and Cosmetics, Pesticide and Agrochemical industry, Food and food processing, on-metallic minerals, I-Tech nanometer products, Paper and Paper making chemical.
The After Sales Service:
1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need, arrange maintenance engineer for you.
The package and shipping: Be covered with anti-abrasion film, then sea shipping by FCL or LCL.
Also offered the related products: Bead Mill & the Zirconical beads, This 2 products are much important for the Bead mills, this materials is pre-dispersing well, It's better for grinding with bead mill after pre-dispersing well. Also the zirconial beads (grinding beads with different size for meeting different finally fineness.
If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
