75KW Wet Grinding Mill SP250 Paint Milling Machine
Price:
USD 48000---65000 Per Unit
MOQ:
1 unit
Delivery Time:
20-30 Work Days
Brand:
ALLWIN
Product Description
75 KW Non Explosion-proof Wet Grinding 250L Horizontal Bead Mill Machine

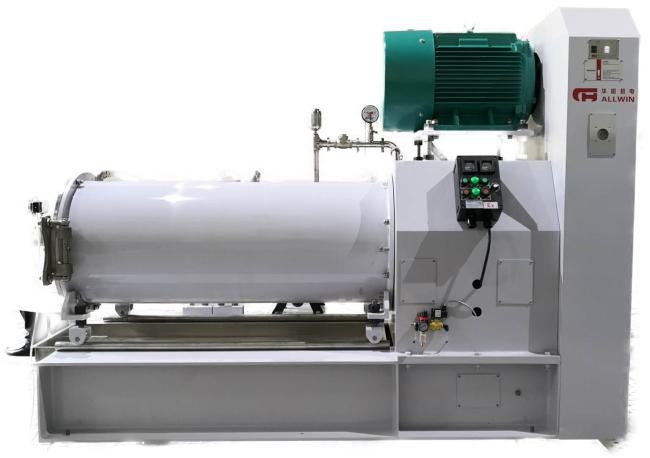

1.Display of Horizontal Bead Mill Machine
2. 100L Bead Mill Machine Technical Data
| No | Main Parameters | SP250 | Note |
| 1 | Motor power | 75 kW | Ex-proof/non ex-proof available |
| 2 | Effective volume of grinding chamber (L) | 250L | volume can be suggested according to different grinding materials and usages |
| 3 | Water pressure | 0.3 | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | Advision: Users offer the Cooling water less 10°C |
| 5 | Dimensions:L*W*H | 2300*1000*2250 | |
| 6 | Weight | --- | Different weight as for different chamber materials |
3. Configuration Instructions of 250L Horizontal Bead Mill
| No. | | SUPER series horizontal sand mill | Notes |
| 1 | Material of External Chamber | SUS 304 stainless steel | |
| 2 | Material of Internal grinding chamber | 9Cr18Mo Alloy steel,Silicon Carbide Ceramics, SUS 304 Stainless Steel Available | |
| 3 | Dispersing shaft | | Brand: NSK |
| 4 | Dispersing disk | SUS 304 stainless steel , 9Cr steel, PU | Different shapes and materials for choice |
| 5 | Feeding and discharging end covers on the cylinder | SUS 304 stainless steel | |
| 6 | Static discharge screen ring | Wire Wound screen ring with 304.Gaps: 0.5mm. | Gaps can be calculated according to customer's requirements |
| 7 | Mechanical seal | ALLWIN patent technology with anti-theft system | |
| 8 | Feeding pump | 2" ARO diaphragm pump; | Brand: Ingersoll Rand |
4. Display of manufacturing Equipments

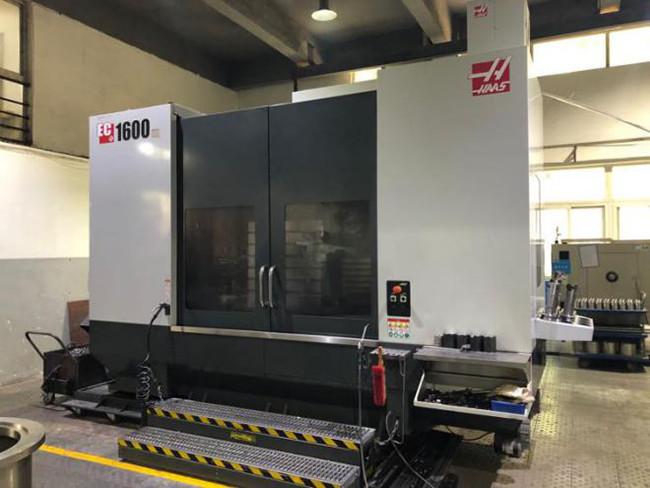

Imported form America, HAAS 1600 Series, valued 2.6 million RMB, used to process key parts to ensure small runout of end face, steady operation.

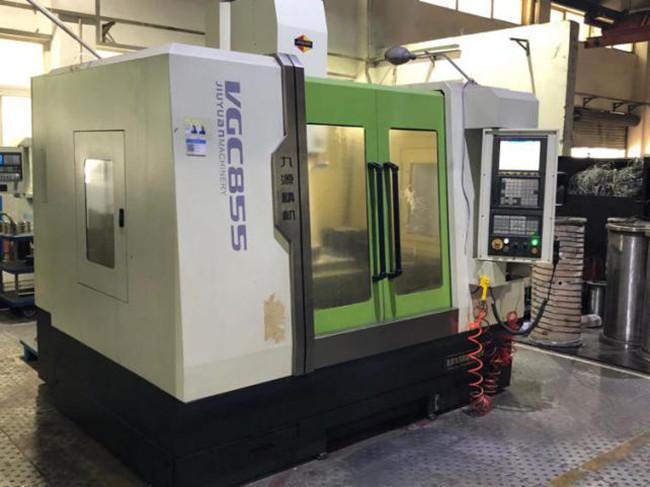

Brand TAIWAN JIUYUAN, precision CNC.
5. Key parts and spares
Disks with different shapes and materials
Double mechanical seal: patent technology , made by ALLWIN
6. Culture of ALLWIN company
❶Company Target: to be a better service-provider and manufacturer in grinding and dispersing.
❷Product Mind: to produce great machines for great enterprises which are facing future, starving to development.
❸Service Aim: to creat values for user-centered customers.
❹Cooperation Principle: to solve the problem with mutual benefits.
7. Advantages of horizontal bead mill machine
A. Long History in grinding and dispering. Founder of Allwin,Mr. Yongqi Wang, is the fist Chinese designer, and over 27 years innovation in technical, the grinding machine has gained famous brand and great reputation in China.
B. Long terms cooperation with great and famous enterprises. Such as Akzo Nobel, which had purchased over 20 units sinced 2004. Both high quality and great service can help to contribute cooperation.
C. 11 Certificates of patent help to ensure equipment application with lower temperature, higher outputs, greater finness.
D. Offering customized services and suggestions when choosing sand mill machines according to stocks, finness, applictions.
E. Great pre-sale, sale, after-sale service and reasonable suggestions for usage.
F.Master key technology of grinding and dispersing, ensured higher efficiency, lower temperature, less person and greater finness than other competitors.
