300mm Ink High Speed Disperser 1T High Speed Dispersion Machine
Used In Piant,Ink Chemical,Paper Making 30kW Indurstial Liquid Dispersion Mixer High Speed Dispersing Machine
The series of JF high speed dispersing machine( mixer machine ) are suitable for producing paint, ink, coating, dyestuff, paper making, etc... in chemical industry. The mixers are used for wet dispersing and mixing liquid-solid material. On-grade speed adjustment by frequency converters, with hydrauliclifting, safety and steady work, better dispersing effect, easy maintenance.
Main characteristics:
1. Allwin’s proprietary technologies: Thress securities for vertical column with hydraulic lifting:No oil leakage, no ceiling-hitting and rotary 360°for machine frame.
2. 40Cr hard chrome-plated.
3. Converter built-in Electrical box, not explosion-proof far away from the scene, with explosion-proof motor and explosion-proof operation column
4. Hydraulic lifting, safety and steady work.
5. Better dispersing effect and easy maintenance.
Main parameter of High speed dispersing machine:
| Model/parameter | JF2.2 | JF5.5 | JF7.5 | JF11 | JF15 | JF18.5 | JF22 | JF30 | JF37 | JF45 | |||
| Main motor | kw | 2.2 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | ||
|
Diameter of impeller |
mm |
130/150 |
200/250 |
200/250 |
250/300 |
250/300 |
330/350 |
330/350 |
400 |
400 |
450 |
||
|
Rotary speed |
R/min | 0-1450 | 0-1800 | 0-1800 |
0-1500
|
0-1500
|
0-1500
|
0-1500
|
0-1200
|
0-1200
|
0-1000
|
||
| centre-to-centre distance | mm | 550 | 845 | 845 | 900 | 900 | 935 | 935 | 1100 | 1100 | 1100 | ||
| Lifting travel | mm | 600 | 900 | 900 | 1000 | 1000 | 1100 | 1100 | 1300 | 1300 | 1300 | ||
| Pump motor | kw | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 1.1 | 1.1 | 1.1 | ||
| Total height | mm | 1200 | 1700 | 1700 | 1900 | 1900 | 2000 | 2000 | 2300 | 2300 | 2300 | ||
| Rotary angle of main frame |
|
±180° | ±180° | ±180° | ±180° | ±180° | ±180° | ±180° | ±180° | ±180° | ±180° | ||
| Overall dimension | A | mm | 1200 | 1380 | 1380 | 1700 | 1700 | 1820 | 1820 | 2300 | 2300 | 2300 | |
| B(width) | mm | 400 | 650 | 650 | 650 | 650 | 650 | 650 | 800 | 800 | 800 | ||
| L | mm | 550 | 650 | 650 | 900 | 900 | 935 | 935 | 1100 | 1100 | 1100 | ||
| H1 | mm | 1200 | 1700 | 1700 | 1900 | 1900 | 2000 | 2000 | 2300 | 2300 | 2300 | ||
| H2 | mm | 1250 | 1250 | 1520 | 1520 | 1520 | |||||||
| h1 | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | ||
| h2 | mm | 600 | 600 | 725 | 725 | 725 | |||||||

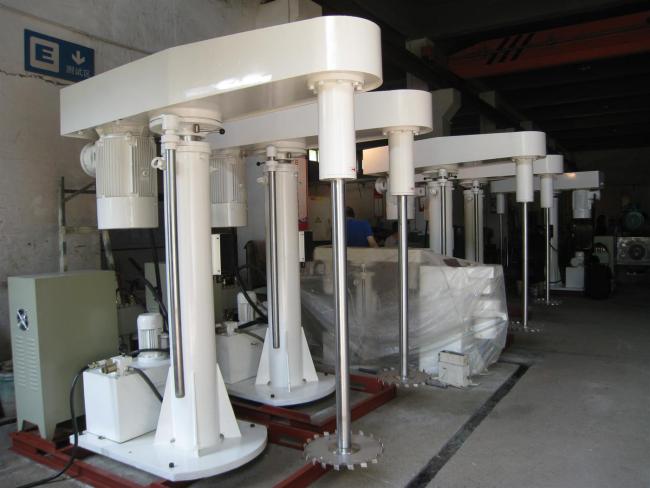

Production show ( Different model for meeting different demands)

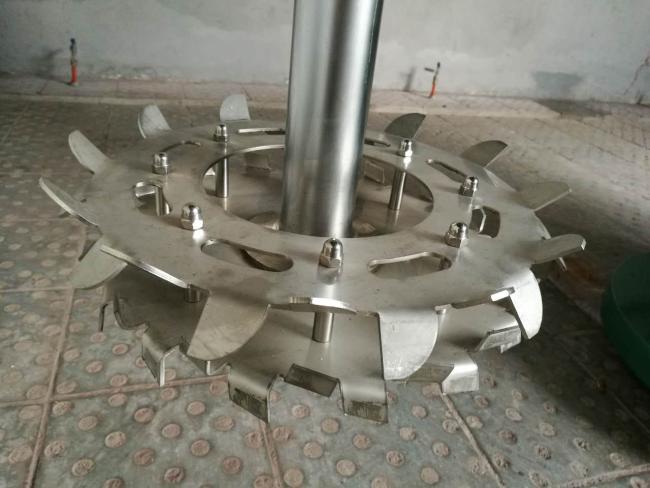

The Impeller or dics ( two kinds for different needs)
After sales service:
1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.
FAQ:
Q1: Are you a trading company or manufacturer?
A1: We are the manufacturer.
Q2: Where is your company and factory located? How can I visit you?
A2: Our company is located in Tongxing industrial zone in Caijia Town, Beibei, Chognqing, China. Post code: 400709. It takes about 0.5 hours from Airport to our coampny by car. All our clients, from home or abroad, are warmly welcome to visit us!
Q3: Do you have own R&D team?
A3: Yes, we have 12 engineers, and our products could be customized for your requirements.
Q4: How about the quality?
A4: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.
Q5: What is your after-sale service?
A5: we offer 100% guarantee on our product and agree 1:1 replace defective products. Firstly we offer the video instruction for maintenance for you ,if need ,we will arrange engineer for you.
Q6: How is the payment?
A6: Firstly paid the deposit, then paid the balanced before shipping.
