Chemical 100L Horizontal Sand Mill Paint Grinding Machine
Chemical 100L Horizontal Sand Mill Paint Grinding Machine
Technical data of 100 L Horizontal Bead Mill
| No. |
Main Parameters
|
SP100 | Notes |
| 1 | Non Explosion-proof motor (kW) | 55KW | |
| 2 |
Effective volume of grinding chamber (L) |
100L | |
| 3 |
Water pressure (MPa) |
0.3 Mpa | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | Advise offer the Cooling water less 10°C |
| 5 |
Dimensions: L*W*H (mm) |
1950*900*1900 mm | |
| 6 |
Weight (kg) |
2000 Kg |
| No. |
Main parts
|
SP100 Explosion-proof Wet Bead Mill | Notes |
| 1 | Material of External Chamber | SUS 304 stainless steel | |
| 2 | Material of Inner grinding chamber | 9Cr18Mo Alloy steel, SIC sillicon carbide ceramics | |
| 3 |
Dispersing shaft
|
40Cr with hard chromium plating | Brand: NSK |
| 4 |
Dispersing disk (agitator disk) |
SUS 304 stainless steel , PU, 9Cr available | |
| 5 | Feeding and discharging end covers on the cylinder | SUS 304 stainless steel | |
| 6 | Static discharge screen ring | Wire Wound screen ring with 304.Gaps: 0.5mm. | Gaps can be calculated according to customer's requirements |
| 7 | Mechanical seal |
Intelligent double mechanical seal with mandatory lubricating-cooling system |
|
| 8 |
Feeding pump
|
1.5” ARO diaphragm pump; | Brand: Ingersoll Rand |
| 9 | Appliance configuration | Non explosion-proof machine, suitable for water base materials, motor 30kW or 37 KW. Non explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with electrical contacts., Control system (button type) | |
| 10 | Fasteners and connecting parts |
Stainless steel clamp-type connecting parts |
Allwin Patent Technology : Mechanical Seal, adopted anti-stealing technology

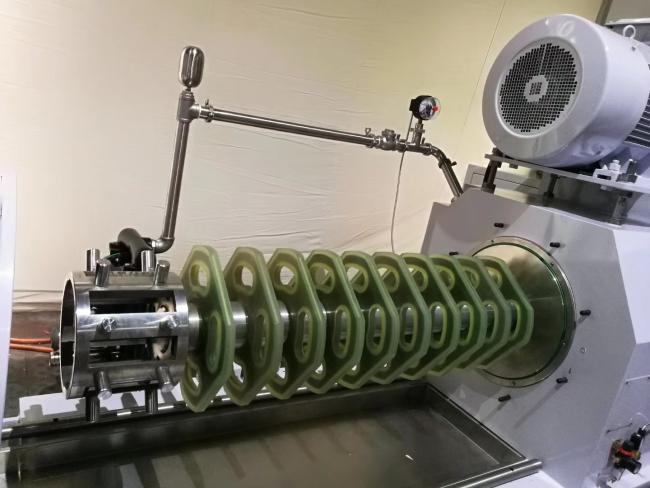

Display of Dispersing System
Dispersing disks can be available according to different grinding materials and industries.
If need more detailed information, pls contact me also warmly welcome to visit us.
