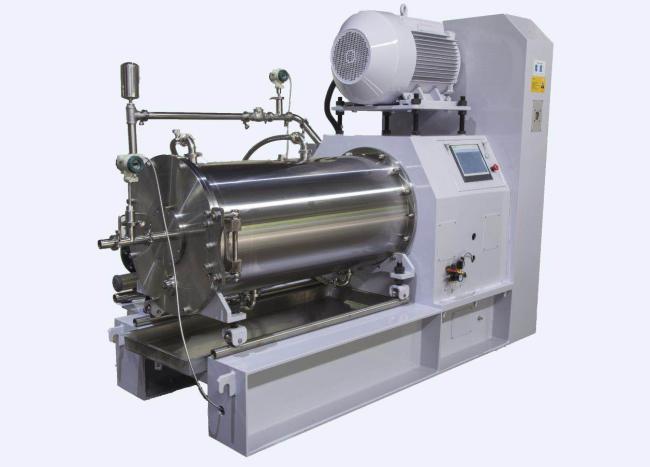

55KW PU Wet Bead Mill Machine Sus304 PU Coat Stainless Steel Inner Chamber
Water Base 55KW PU Coat 304 Stainless Steel Inner Chamber 200L Bead Mill Machine
The main introduction:
This bead mills are main consists of chamber and disc dispersing system. The double end mechanical sealing with indepent technology could resistant to more than 1600 kinds of solvents. The series have great flow rate and super fine discharging, the finally fineness can be reach 1um for D90 .The cooling efficiency is better than normal mills because the sectional double spiral water course is more beneficial to heat exchange. The grinding efficiency is higher 15-30% than traditional mill machines; the combined disperser can rapidly increase dispersing efficiency.All the materials of contact parts could be chose from wearable steel, stainless steel, PU and ceramics for meeting different requirements.
The grinding media is extremely from 0.3-3.0mm are suitable for this series mills. We recommend the 95% zirconium beads. The discharging is great flow with bigger screen rings which can be easily cleaned and removed.
This Super series are widely used in coating and paint, pigment, pesticide and agro-chemical industry, Pigment and dyestuffs, Printing inks, Gravure inks, food and food processing,non-metallic minerals.
2. Technical data of 200 L wet Grinding Mill
| No. | Main Parameter | SP200 | Notes |
| 1 | Non Explosion-proof motor (kW) | 55KW | |
| 2 | Effective volume of grinding chamber (L) | 200L | |
| 3 | Water pressure (MPa) | 0.3 Mpa | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | Advise offer the Cooling water less 10°C |
| 5 | Dimensions: L*W*H (mm) | 2000*900*2000 mm | |
| 6 | Weight (kg) | 2500 Kg |
| No. | Main parts | SP200 Explosion-proof Wet Grinding Mill | Notes |
| 1 | Material of Outer Chamber | SUS 304 stainless steel | |
| 2 | Material of Inner grinding chamber | PU Coate 304 stainless steel | |
| 3 |
Dispersing shaft
| 40Cr with hard chromium plating | Brand: NSK |
| 4 | Dispersing disk | PU Coate 304 stainless steel | |
| 5 | Feeding and discharging end covers on the chamber | SUS 304 stainless steel | |
| 6 | Static discharge screen ring | Wire Wound screen ring with 304.Gaps: 0.5mm. | |
| 7 | Mechanical seal | Intelligent double mechanical seal with mandatory lubricating-cooling system | |
| 8 | Feeding pump | 1.5” ARO diaphragm pump; | Brand: Ingersoll Rand |
| 9 | Appliance configuration | Non explosion-proof machine, suitable for water base materials, motor 30kW or 37 KW. Non explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with electrical contacts., Control system (PLC Control) | |
| 10 | Fasteners and connecting parts | Stainless steel clamp-type connecting parts | Quick and convenient |
5. Key Parts of 200 L Wet Grinding MIll (Independently technology)
Allwin Patent Technology : Mechanical Seal, adopted anti-stealing technology
Note:
1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity,production capacity etcs.
2.The Materials of inner chamber and Dispersing disks can be chosed according to your different grinding materials and industries.
3.The control system will matching of different demand, such as PLC or traditional Button type.
If need more detailed information, please don't hesitate contact us, Also Warmly welcome to visit us.
