200L Non Ex Proof Grinding Mill Machine SUS304 Mass Production Bead Mill
Price:
USD 5000---50000 Per Unit
MOQ:
1 Unit
Delivery Time:
25-30 working days
Brand:
ALLWIN
Product Description
200L Non Ex Proof Grinding Mill Machine SUS304 Mass Production Bead Mill
1. Advantages Of Company and Wet Grinding Mill
A. Long History in grinding and dispering. Founder of Allwin,Mr. Yongqi Wang, is the fist Chinese designer, and over 28 years innovation in technical, the grinding machine has gained famous brand and great reputation in China.
B. Long terms cooperation with great and famous enterprises. Such as Akzo Nobel, which had purchased over 20 units sinced 2004. Both high quality and great service can help to contribute cooperation.
C. 11 Certificates of patent help to ensure equipment application with lower temperature, higher outputs, greater finness.
Allwin Patent Technology : Mechanical Seal, adopted anti-stealing technology
Display of Dispersing System
Dispersing disks can be available according to different grinding materials and industries.
Technical data of 200 L wet Grinding Mill
| No. |
Main Parameter |
SP200 | Notes |
| 1 | Non Explosion-proof motor (kW) | 55KW | |
| 2 |
Effective volume of grinding chamber (L) |
200L | |
| 3 |
Water pressure (MPa) |
0.3 Mpa | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | Advise offer the Cooling water less 10°C |
| 5 |
Dimensions: L*W*H (mm) |
2000*900*2000 mm | |
| 6 |
Weight (kg) |
2500 Kg |
6.Configuration instructions
![]()
![]()
| No. |
Main parts |
SP200 Explosion-proof Wet Grinding Mill | Notes |
| 1 | Material of Outer Chamber | SUS 304 stainless steel | |
| 2 | Material of Inner grinding chamber | PU Coate 304 stainless steel | |
| 3 |
Dispersing shaft
|
40Cr with hard chromium plating | Brand: NSK |
| 4 |
Dispersing disk |
PU Coate 304 stainless steel | |
| 5 | Feeding and discharging end covers on the chamber | SUS 304 stainless steel | |
| 6 | Static discharge screen ring | Wire Wound screen ring with 304.Gaps: 0.5mm. | |
| 7 | Mechanical seal |
Intelligent double mechanical seal with mandatory lubricating-cooling system |
|
| 8 |
Feeding pump |
1.5” ARO diaphragm pump; | Brand: Ingersoll Rand |
|
9 |
Appliance configuration | Non explosion-proof machine, suitable for water base materials, motor 30kW or 37 KW. Non explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with electrical contacts., Control system (PLC Control) | |
| 10 | Fasteners and connecting parts |
Stainless steel clamp-type connecting parts |
Quick and convenient |

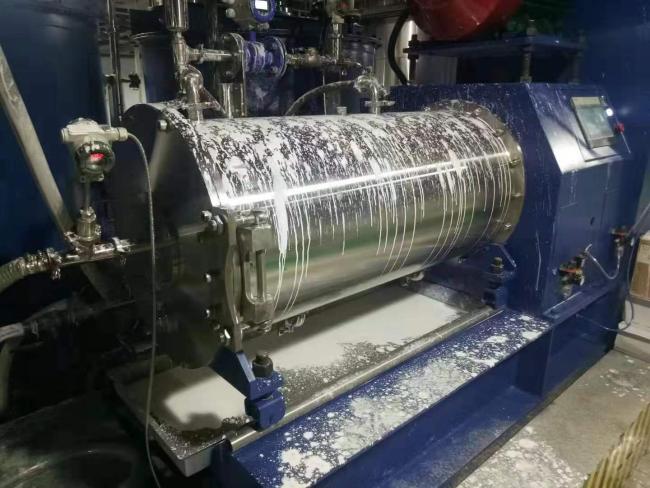

Customer site picture:
11 patents:
If need detailed price or information, pls contact us, and also warmly welcome to visit us!
