30L EX Proof Agitator Bead Mill SUS 304 Horizontal Sand Mill for ink pigment paint
Water Oil Based General Model High Efficiency Disc Type Agitator Bead Mill
The main characturistics:
1.Silicon Carbide Ceramics Inner Chamber materials for high efficiency and energy saving :
2. Particular cooling system control temperature in a low range with great heat dispersion.
3.Abrasive resistance is better than other steel materials, and the mill's worklife is longer than the mills with other materials.
The main parameter
| No | main parameters | SP20/30/50 | Note |
| 1 | Non Explosion-proof motor kW | 22/30/37 kW ( Ex-proof) | |
| 2 |
Effective volume of grinding chamber (L) |
20/30/50L | |
| 3 | Water pressure (MPa) | 0.3 | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | Advise offer the Cooling water less 10°C |
| 5 | Dimensions:L*W*H (mm) | match with volumes | |
| 6 | Weight (kg) | match with volumes |
| No | Main parts | SP series silicon carbide bead mill | Notes |
| 1 | External vessel | 304 stainless steel | |
| 2 | Inner grinding vessel | Silicon Carbide Ceramics | |
| 3 | Dispersing shaft | 40Cr with hard chromium plating | |
| 4 |
Dispersing disk (agitator disk) |
PU coated 304 stainless steel, wearable steel, alloy steel, etc | |
| 5 | Feeding and discharging end covers on the cylinder | 304 stainless steel | |
| 6 | Static discharge screen ring | Wire Wound screen ring with 304.Gaps: 0.5mm. | |
| 7 | Mechanical seal |
double mechanical seal with mandatory lubricating-cooling system |
|
| 8 | Feeding pump | 1” ARO diaphragm pump; | |
|
9 |
Appliance configuration | Explosion-proof machine, Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts., | |
| 10 | Control system |
button type,PLC optional |

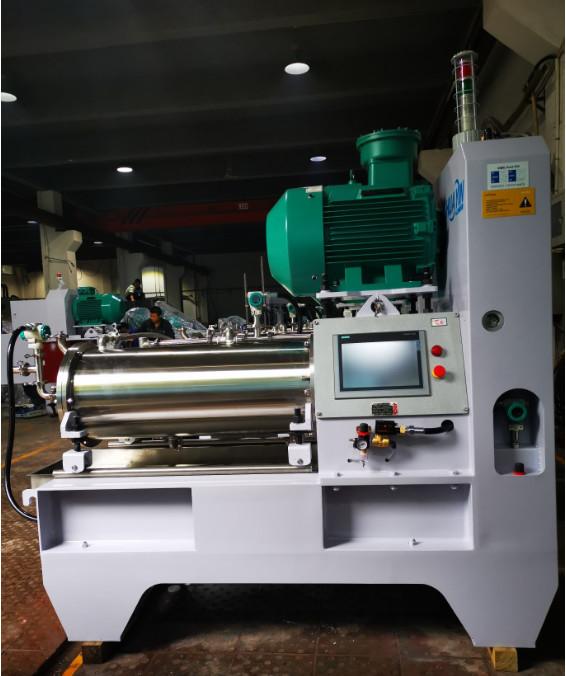

Photo show

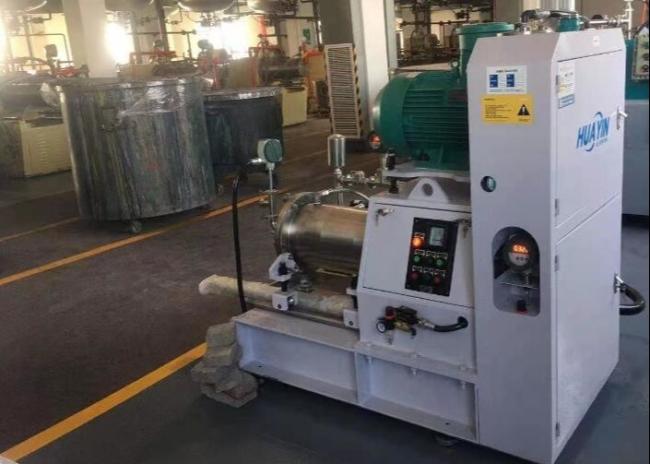

The button type control
The button type control
The Silicon Carbide Ceramics inner chamber
The Related production (Zirconia bead and dispersing machine)
Shipping and Delivery
After sales service:
1. Video instructions for installation and maintanence.
2. 12-24 hours feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.
3. spare parts is enough and key parts is always ready to sell within short time.
