Double Impeller Hydraulic Lifting High Speed Mixing Disperser 1000kg High Speed Paint Mixer

Price Negotiable
Price: 6000USD-8000USD
MOQ: 1set
Delivery Time: 20-30 working days
Brand: AllWin
Product Description

Double Impeller Explosive Stirring Pre-dispersing High Speed Disperser for Ink Coat Paint



 The series of high speed dispersers are commonly utilized in painting, inking, coating, paper-making, etc.The dispers are used to disperse and mix liquid materials with solid material. and they often match with non-standardable tanks, to pre-dispersing for following process. Allwin has much experience in predispersing with unstandarable tanks.



 Features & Advantages:

1. Safety assurance with hydraulic lifting:No oil leakage, no ceiling-hitting

2. Rotation 360°for machine frame

3. Frequency converter built-in electrical box, not explosion-proof  far away from the scene, with explosion-proof motor and explosion-proof op eration column

4. Better dispersing effect and easy maintenance.

5. Double impellers are more efficient and optional.

6. Easily installation, operation and maintenance.





Main parameter:

 model/parameter

JF22

Main motor

kw 22

Diameter of impeller

mm

330

Rotary speed

R/min

0-1500

centre-to-centre distance mm 935

Lifting travel

mm 1100

Pump motor

kw 0.75

Total height

mm 2000

Rotary angle of main frame



360°

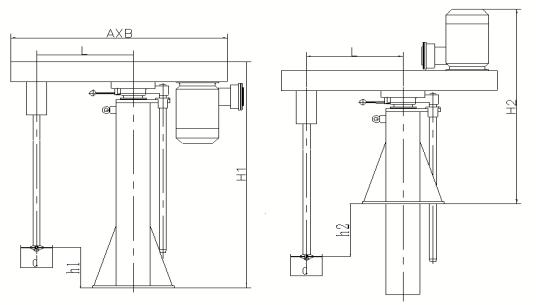

Overall dimension

A mm 1820
B(width) mm 650
L mm 935
H1 mm 2000
H2 mm 1250
h1 mm 300
h2 mm 600



Optional configuration

parts Optional configuration
Impeller structure Single impeller Double impeller other required structure
Material of Impeller Stainless steel Non-metallic material
Electrical appliances General(Non-ex) Intrinsic safety Ex
Control and display

Liquid crystal display

(plc)

Meter (operation colum type)



Double impeller is suitable for thick slurry type, high viscosity, stirring and dispersing of difficult to wet materials



FAQ:



Q1:Trading company or manufacturer?

A1: We are the manufacturer.



Q2: Is it available if we want to visit your plant?

A2: Yes, of course. Warmly welcome you to visit our factory to know our process, our technology.and communication face-to-face is rather benecial to built trust degree.



Q3: Do you have own R&D team?

A3: Yes, we have 12 engineers, and our products could be customized for your requirements.



Q4: How about the quality?

A4: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly. Warranty of all new disperser is one year free.



Q5: How is the payment?

A5: Firstly paid the deposit, then paid the balanced before shipping.
